LM2408T Monolithic Triple 4.5 ns 50V 22mA CRT Driver IC
A LM2408T high-speed triple video amplifier IC designed to drive RGB cathodes in color CRT monitors and display systems.
30.00 EGP
Buy NowLM2408T Monolithic Triple 4.5 ns 50V 22mA CRT Driver IC
The LM2408T is a monolithic triple CRT driver IC specifically developed for high-resolution color display applications. It contains three matched high-speed video amplifiers capable of driving the red, green, and blue cathodes of a color CRT directly. With its fast switching characteristics and wide bandwidth, the LM2408T delivers sharp image quality, excellent color reproduction, and high-definition video performance in CRT monitors and display terminals.
The device integrates three identical amplifier channels in a single package, simplifying circuit design and reducing component count. Its high-voltage output capability and low distortion characteristics make it suitable for computer monitors, video display terminals, medical imaging equipment, industrial displays, and other CRT-based systems requiring accurate RGB signal amplification.
Features:
- Triple matched video amplifier channels.
- High-speed video signal processing.
- Optimized for RGB CRT cathode driving.
- Wide bandwidth performance.
- Low signal distortion.
- Fast rise and fall times.
- Excellent channel matching.
- High output voltage capability.
- Integrated monolithic design.
- Reduced external component requirements.
- Suitable for high-resolution displays.
- Reliable operation in video applications.
Specifications:
| Symbol | Parameter | Conditions | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| ICC | Supply Current | Per Channel, No Output Load | — | 22 | 30 | mA |
| IBB | Bias Current | — | — | 21 | — | mA |
| No Input Signal | 47 | 50 | 53 | |||
| AV | DC Voltage Gain | No Input Signal | -13 | -15 | -17 | — |
| ΔAV | Gain Matching | (Note 4) | — | 1.0 | — | dB |
| LE | Linearity Error | (Notes 4, 5) | — | 8 | — | % |
| tR | Rise Time | 10% to 90%, f=1 MHz | — | 4.5 | — | ns |
| tF | Fall Time | 90% to 10%, f=1 MHz | — | 4.5 | — | ns |

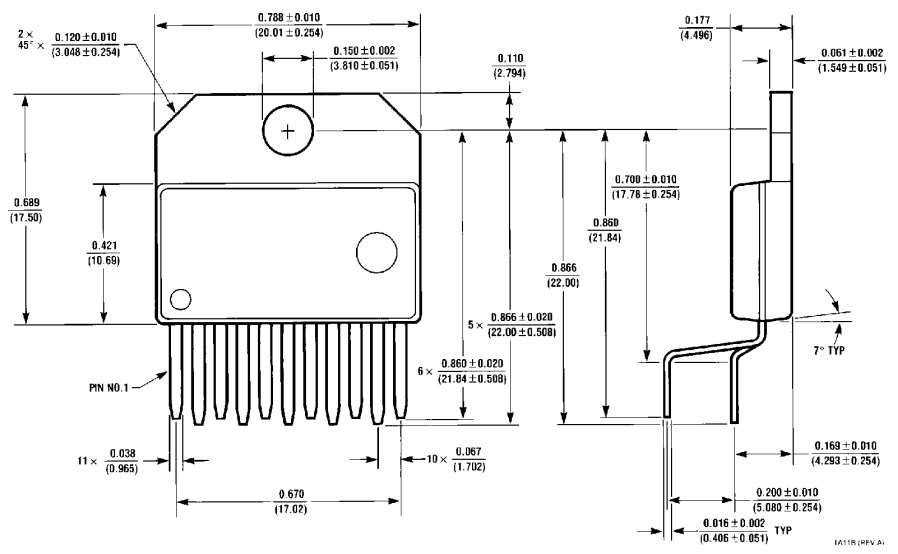

Pinout:
| Pin | Name |
|---|---|
| 1 | VOUT 1 |
| 2 | GND 1 |
| 3 | VOUT 2 |
| 4 | GND 2 |
| 5 | VOUT 3 |
| 6 | VCC |
| 7 | GND |
| 8 | VIN 3 |
| 9 | VIN 2 |
| 10 | VBB |
| 11 | VIN 1 |
Applications:
- CRT computer monitors.
- Color video display terminals.
- Industrial CRT displays.
- Medical imaging monitors.
- Broadcast video equipment.
- CRT television systems.
- RGB video amplifiers.
- Test and measurement displays.
- Legacy display system repairs.
- Educational electronics projects.
Package Included:
- 1x LM2408T Monolithic Triple 4.5 ns 50V 22mA CRT Driver IC.
