JST VH Data Terminal Female Connector Housing 3.96mm With Crimp Terminal
JST VH Series Female Connector Housing with crimp terminals featuring 3.96mm pitch, secure locking design, and high current capability, ideal for wire-to-board power and signal connections.
Price range: 8.00 EGP through 13.00 EGP
Buy NowJST VH Data Terminal Female Pin Connector Housing 3.96mm With Crimp Terminal

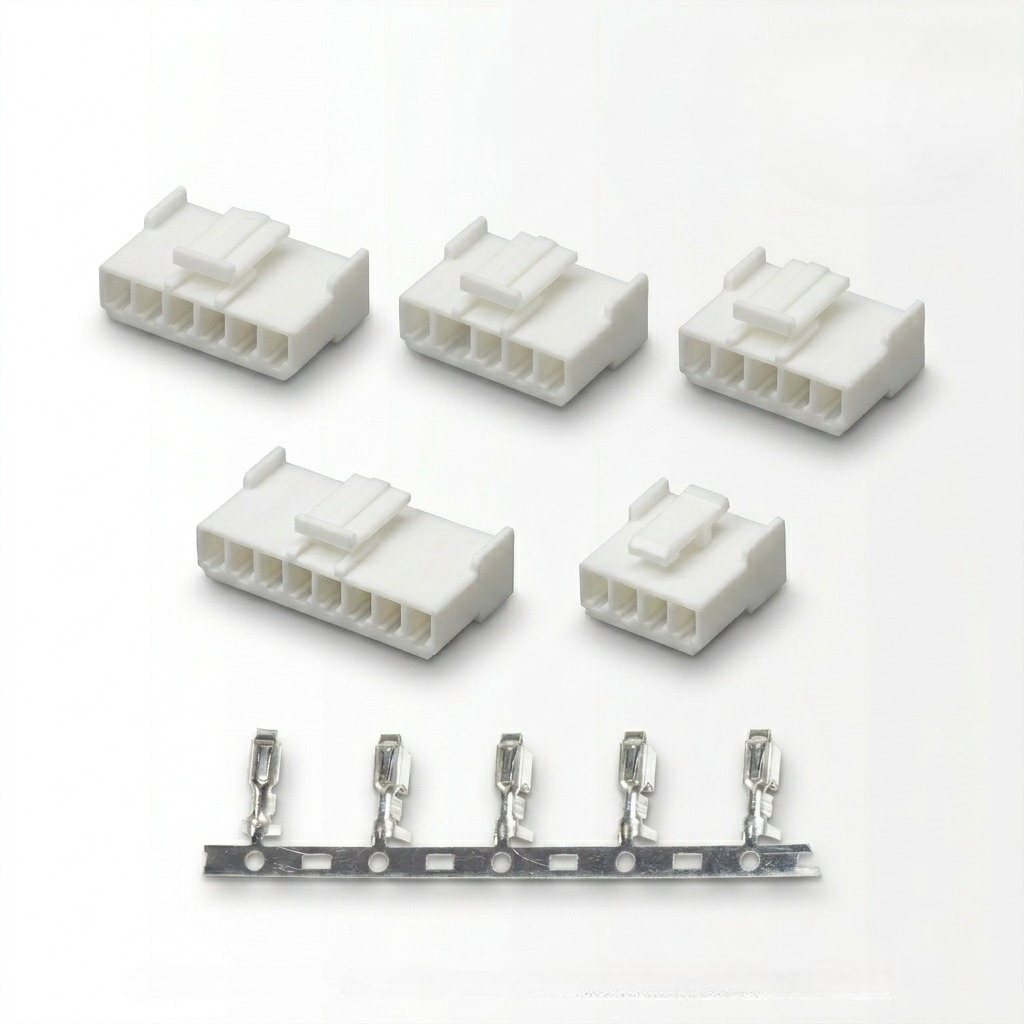

The JST VH Data Terminal Female Connector Housing 3.96mm With Crimp Terminal is a high-quality wire-to-board connector designed for applications requiring reliable electrical connections with high current carrying capability. As part of the widely used JST VH Series, this connector features a compact design combined with a robust locking mechanism, making it suitable for both power and signal transmission applications.
Features:
- Genuine JST VH Series connector housing.
- Female wire-to-board connector.
- Standard 3.96mm pitch.
- Secure locking mechanism.
- Supplied with matching crimp terminals.
- Available in 8, 10, 11, 12, and 13 pin configurations to suit diverse circuit requirements.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Female Connector Housing |
| Series | JST VH Series |
| Available Models | VHR-8N, VHR-10N, VHR-11N, VHR-12N, VHR-13N |
| Available Pins | 8Pin, 10Pin, 11Pin, 12Pin, 13Pin |
| Connector Type | Wire-to-Board |
| Mounting Style | Cable Mount |
| Gender | Female |
| Pitch | 3.96mm |
| Termination Type | Crimp |
| Rated Current | 10A |
| Rated Voltage | 250VAC/DC |
| Operating Temperature | -25°C~+85°C |
| Contact Resistance | 10mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Withstanding Voltage | 1500VAC/1min |
| Applicable Wire Size | AWG22~16 |
| Wire Insulation Diameter | 1.7mm~3.0mm |
| Housing Material | PA66 |
| Flammability Rating | UL94V-0 |
| Housing Color | Natural White |
| Variation | Model Number | Pin Count | Housing Dimensions (A x B) |
|---|---|---|---|
| 8 Pin | VHR-8N | 8 | 27.72mm x 31.62mm. |
| 10 Pin | VHR-10N | 10 | 35.64mm x 39.54mm. |
| 11 Pin | VHR-11N | 11 | 39.60mm x 43.50mm. |
| 12 Pin | VHR-12N | 12 | 43mm x 47.90mm. |
| 13 Pin | VHR-13N | 13 | 47.52mm x 51.42mm. |
Applications:
- Switching power supplies.
- Battery packs and chargers.
- Industrial control systems.
- LED lighting systems.
- Consumer electronic devices.
- Robotics projects.
- Arduino and development boards.
- Motor control circuits.
- Home appliances.
- Signal and power distribution wiring.
Package Include:
- 1x JST-VH Female Connector Housing(based on your choice).
- 1x Set of Matching Crimp Terminals.
| Number of pins | VHR-8N, VHR-10N, VHR-11N, VHR-12N, VHR-13N |
|---|
