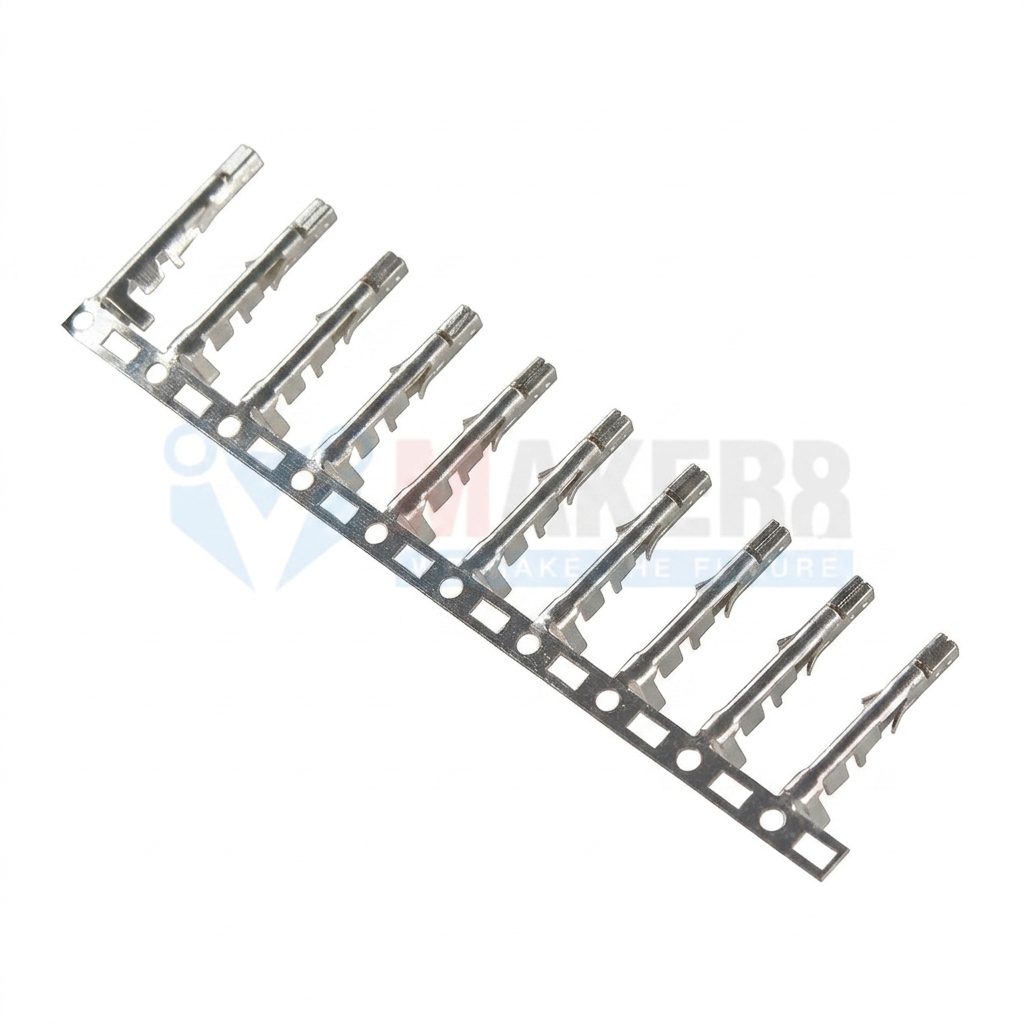

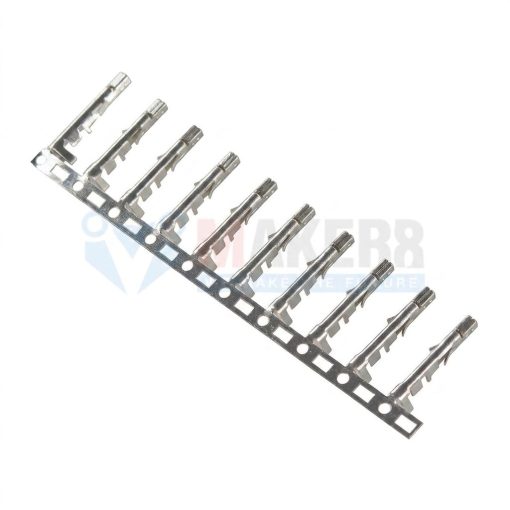

5557-T Automotive Wire Connector Female Terminal
The 5557-T Automotive Wire Connector Female Terminal is a female crimp contact designed for use with compatible 5557-series connector housings. It provides a secure electrical and mechanical connection when properly crimped onto the applicable wire and inserted into the corresponding connector housing. The terminal uses a phosphor bronze contact with tin plating to provide good electrical conductivity and corrosion resistance.
Features:
- Female crimp terminal for 5557-series connector housings.
- 4.20mm connector pitch compatibility.
- Rated current of 9A AC/DC.
- Rated voltage of 300V AC/DC
Specification’s:
| Parameter | Value |
|---|---|
| Model | 5557-T |
| Product Type | Female Crimp Terminal |
| Connector Series | 5557 Series |
| Pitch | 4.20mm |
| Termination Type | Crimp |
| Rated Current | 9A AC/DC |
| Rated Voltage | 300V AC/DC |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000MΩ |
| Withstanding Voltage | 1500VAC / minute |
| Applicable Wire Size | AWG 18–24 |
| Operating Temperature | -40°C to +105°C |
Applications:
- Automotive wiring harnesses.
- Vehicle electrical systems.
- Power distribution wiring.
- Electronic equipment wiring.
- Industrial control systems.
- Battery and power connections.
- Custom cable assemblies.
- Wire-to-wire connector assemblies.
- Wire-to-board connector assemblies.
- Replacement and repair of compatible 5557-series connectors.
Package Include:
1x 5557-T Automotive Wire Connector Female Terminal.
