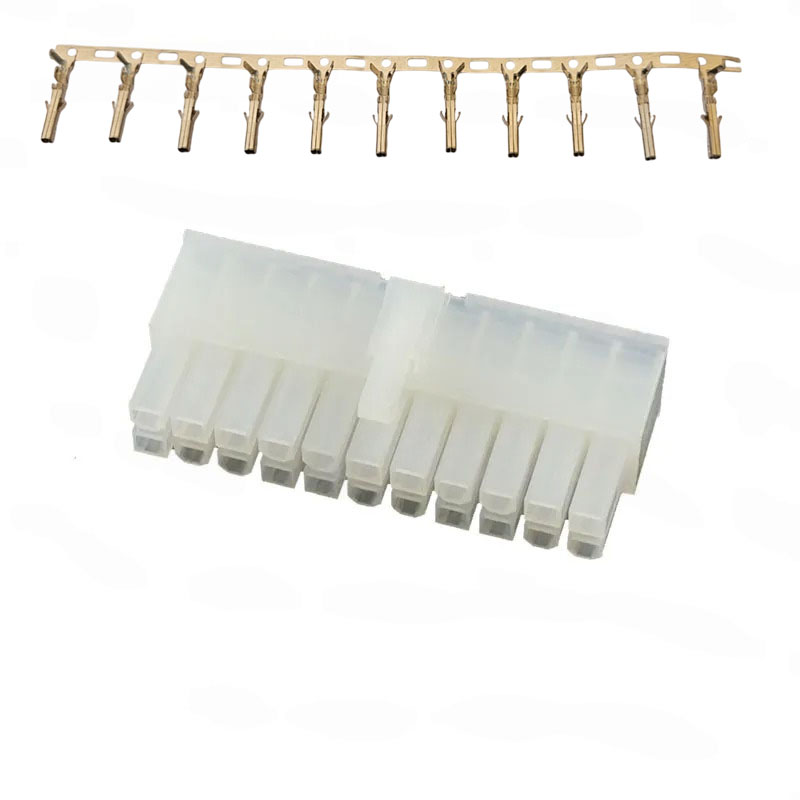

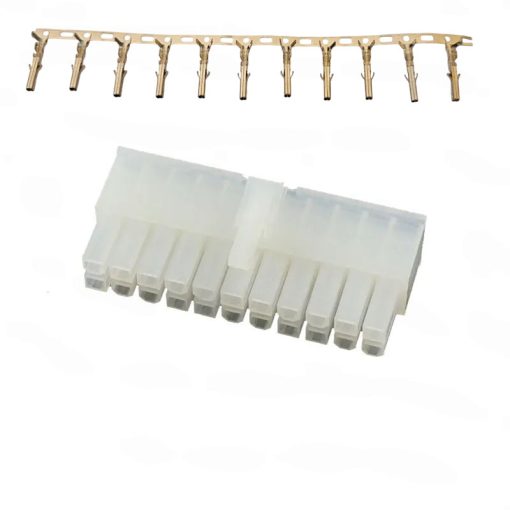

Automotive Wire Connector Female 5557-2x11R-4.2mm 22 Pin with Crimp Terminal
The Automotive Wire Connector Female 5557-2x11R-4.2mm 22 Pin with Crimp Terminal is a high-current dual-row connector designed for demanding automotive, industrial, and power distribution applications. Featuring a 2×11 configuration with a total of 22 positions and a 4.2mm pitch, this connector provides a reliable and secure electrical connection for wire-to-wire and wire-to-board systems.
Features:
- Dual-row female connector housing.
- 22 positions arranged in a 2×11 configuration.
- Standard 4.2mm pitch spacing.
- Includes matching female crimp terminals.
- Secure locking latch design.
- High-current capability up to 9A per contact.
- Durable nylon insulating housing.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Female Connector Housing |
| Series | 5557 |
| Model | 5557-2x11R |
| Number Of Pins | 22Pin |
| Configuration | 2×11 |
| Pitch | 4.2mm |
| Gender | Female |
| Current Rating | 9A |
| Voltage Rating | 300VAC/DC |
| Contact Resistance | ≤0.015Ω |
| Insulation Resistance | ≥1000MΩ |
| Withstand Voltage | 1800VAC/1min |
| Applicable Wire | AWG30-AWG18 |
| Operating Temperature | -25°C~+85°C |
| Housing Material | Nylon UL94V-2 |
| Terminal Material | Phosphor Bronze |
| Terminal Plating | Tin Plated |

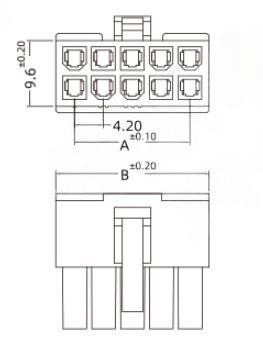

| Dimension A | 42.00mm |
| Dimension B | 47.40mm |
| Color | White |
| Connector Type | Wire To Wire |
Applications:
- Automotive wiring harnesses.
- Battery pack connections.
- ATX power supply cables.
- LED power distribution systems.
- Industrial control equipment.
- Robotics and automation.
- DC power distribution.
- Home appliance wiring.
- DIY electronics projects.
- High-current electronic devices.
Package Include:
- 1x 5557-2x11R Female Connector Housing.
- 22x Female Crimp Terminals.
