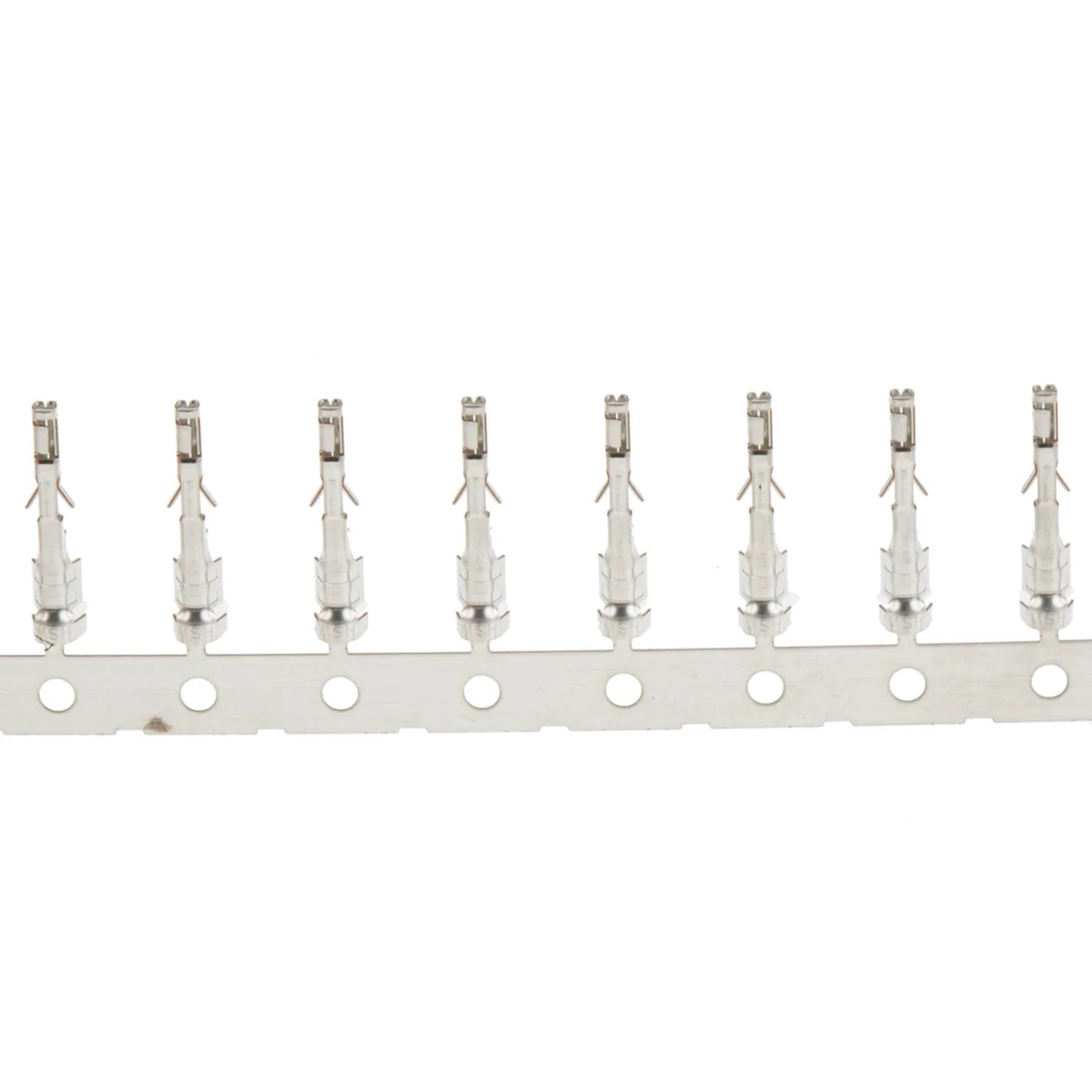

MOLEX 43025-2000 Female Wire Terminal

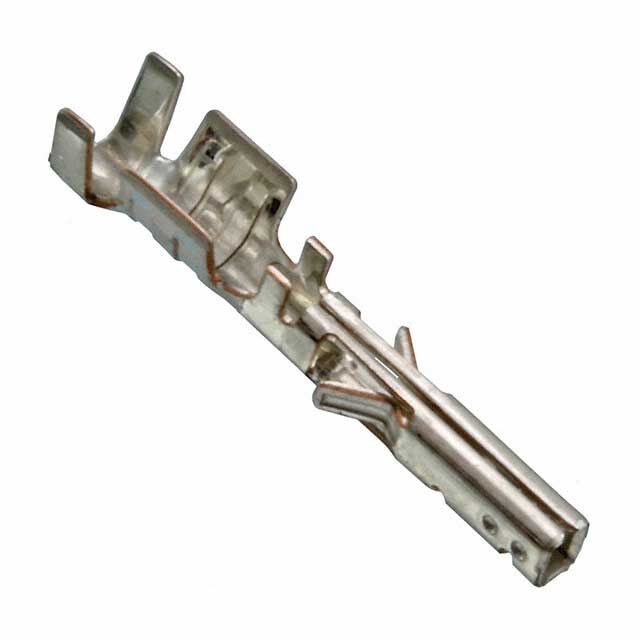

The MOLEX 43025-2000 Female Wire Terminal is a female crimp contact for Micro-Fit 3.0 connector systems. The corresponding metal contact is the 43030-0001 female crimp terminal, designed for use with compatible Micro-Fit 3.0 receptacle housings, including the 43025 series. The terminal is suitable for 20 AWG, 22 AWG, and 24 AWG wires and uses a crimp or compression termination method.
Features:
- Female crimp terminal for Micro-Fit 3.0 connector systems.
- Corresponds to the 43030-0001 female terminal specification.
- Compatible with 43025 and 43645 Micro-Fit 3.0 receptacle housings.
- Suitable for 20 AWG, 22 AWG, and 24 AWG wires.
- Phosphor bronze contact material.
- Tin-plated mating surface.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Female Crimp Terminal |
| Technical Part Number | 43025-2000 |
| Series | 43025 |
| Connector System | Micro-Fit 3.0 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Mating Plating | Tin |
| Termination Plating | Tin |
| Minimum Mating Plating | 1.016 µm |
| Minimum Termination Plating | 1.016 µm |
| Termination Interface | Crimp or Compression |
| Wire Size | 20 AWG, 22 AWG, 24 AWG |
| Maximum Wire Insulation Diameter | 1.85 mm |
| Maximum Current per Contact | 5 A |
| Operating Temperature | -40°C to +105°C |
Applications:
- Wire-to-board and wire-to-wire electronic connection assemblies.
- Compact power connection applications.
- Electronic equipment and control systems.
- Consumer electronics and electrical equipment.
- Telecommunications equipment.
- Medical equipment and electronic instruments.
- Automotive wiring harnesses and electrical assemblies.
- Applications using Micro-Fit 3.0 connector housings.
- Custom cable and wire harness manufacturing.
- Replacement or additional contacts for compatible Micro-Fit connector assemblies.
Package Include:
1x MOLEX 43025-2000 Female Wire Terminal.
