CH3.96 12 Pin Plug Connectors 3.96mm with Crimp terminal
The CH3.96 12 Pin Plug Connector is a high-quality wire-to-board connector compatible with the Molex SPOX 5195 series, manufactured to precise specifications for reliable power and signal transmission in industrial controls, consumer electronics, power supplies, and automation equipment. This connector features a 3.96mm pitch with 12 positions arranged in a single row, providing a compact yet robust solution for multi-circuit wiring harnesses. The housing is constructed from nylon with UL94V-2 flame retardancy, offering excellent mechanical durability, chemical resistance, and thermal stability across demanding operating environments.
Features:
- 12-pin single-row connector with 3.96mm pitch for wire-to-board applications.
- Compatible with Molex SPOX 5195 series headers and mating components.
- Friction lock mechanism for secure, vibration-resistant mating.
- Cable mount design for free-hanging and flexible harness installations.
- Nylon housing with UL94V-2 flame retardancy.
- Phosphor bronze tin-plated terminals for low contact resistance.
- Wide operating temperature range from -25°C to +85°C.
Specifications:
| Parameter | Value |
|---|---|
| Product Series | ZL39603 (Compatible with Molex 5195). |
| Model Number | CH3.96 |
| Pin Count | 12 Pins. |
| Pitch | 3.96mm. |
| Row Count | 1 Row. |
| Connector Type | 12 Pin Plug Connector |
| Mounting Type | Cable Mount. |
| Locking Mechanism | Friction Lock. |
| Terminal Type | Crimp. |
| Wire Gauge | AWG #24~#18. |
| Conductor Area | 0.2mm²~0.75mm². |
| Insulation O.D. | 1.5mm~2.8mm. |
| Current Rating | 5A. |
| Voltage Rating | 250V AC/DC. |
| Contact Resistance | ≤0.015Ω. |
| Insulation Resistance | ≥1000MΩ. |
| Withstand Voltage | 1500VAC, 1 Min. |
| Housing Material | Nylon (UL94V-2). |
| Wafer Material | Nylon (UL94V-0). |
| Terminal Material | Phosphor Bronze, Tin-Plated. |
| Pin Material | Phosphor Bronze, Tin-Plated. |
| Operating Temperature | -25°C to +85°C. |

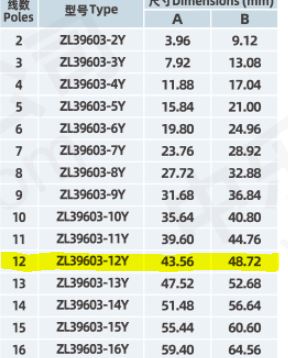

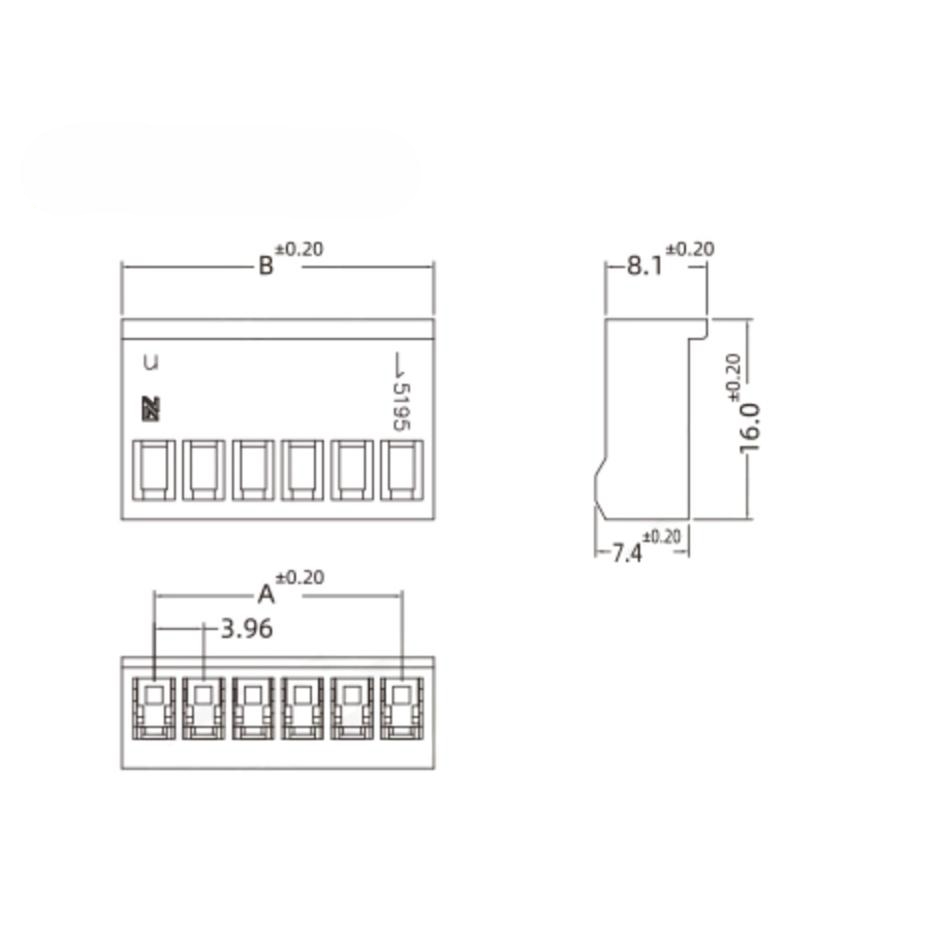

| Housing Length (A) | 43.56mm. |
| Housing Width (B) | 48.72mm. |
Applications:
- Power supply connections.
- Battery packs and chargers.
- Industrial control systems.
- LED lighting systems.
- Robotics projects.
- Motor control circuits.
- Consumer electronics.
- Home appliances.
- Signal and power wiring.
- DIY electronics projects.
Package Include:

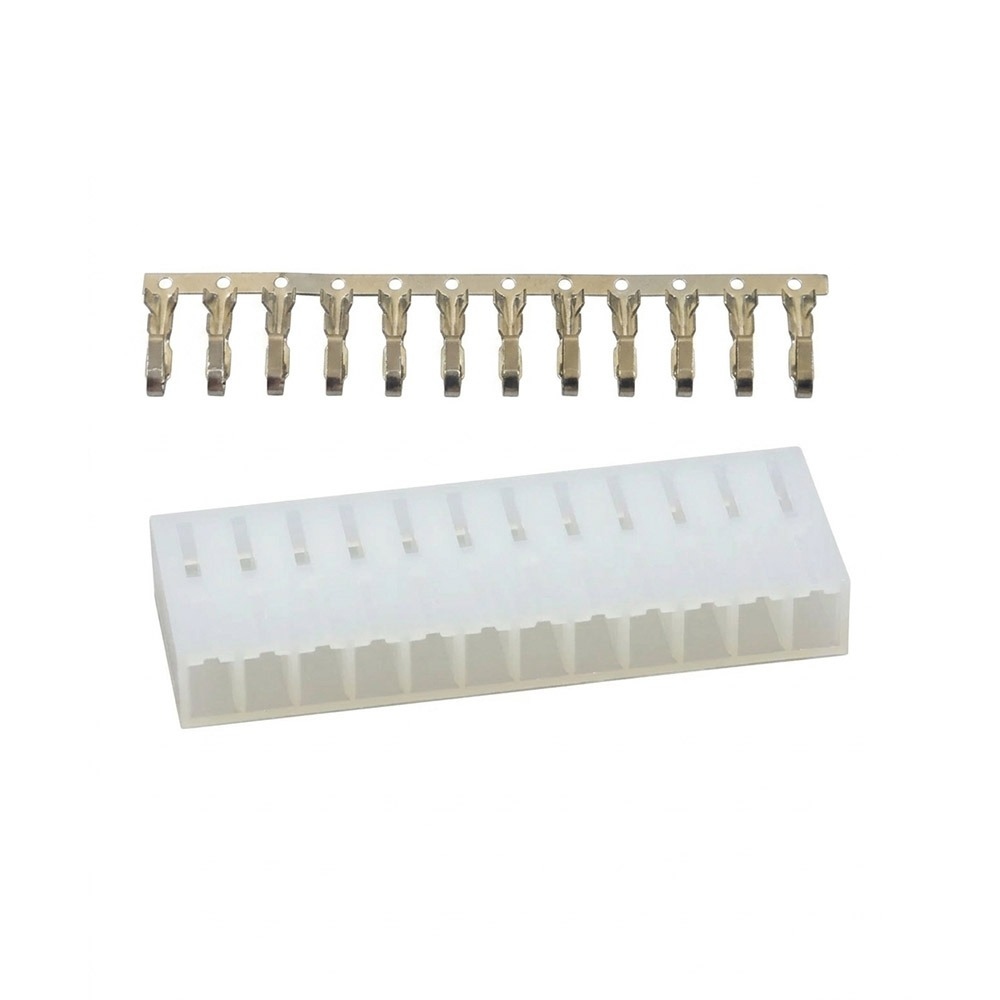

- 1x CH3.96 12 Pin Plug Connector Housing.
- 12x CH3.96 Crimp Terminals.
