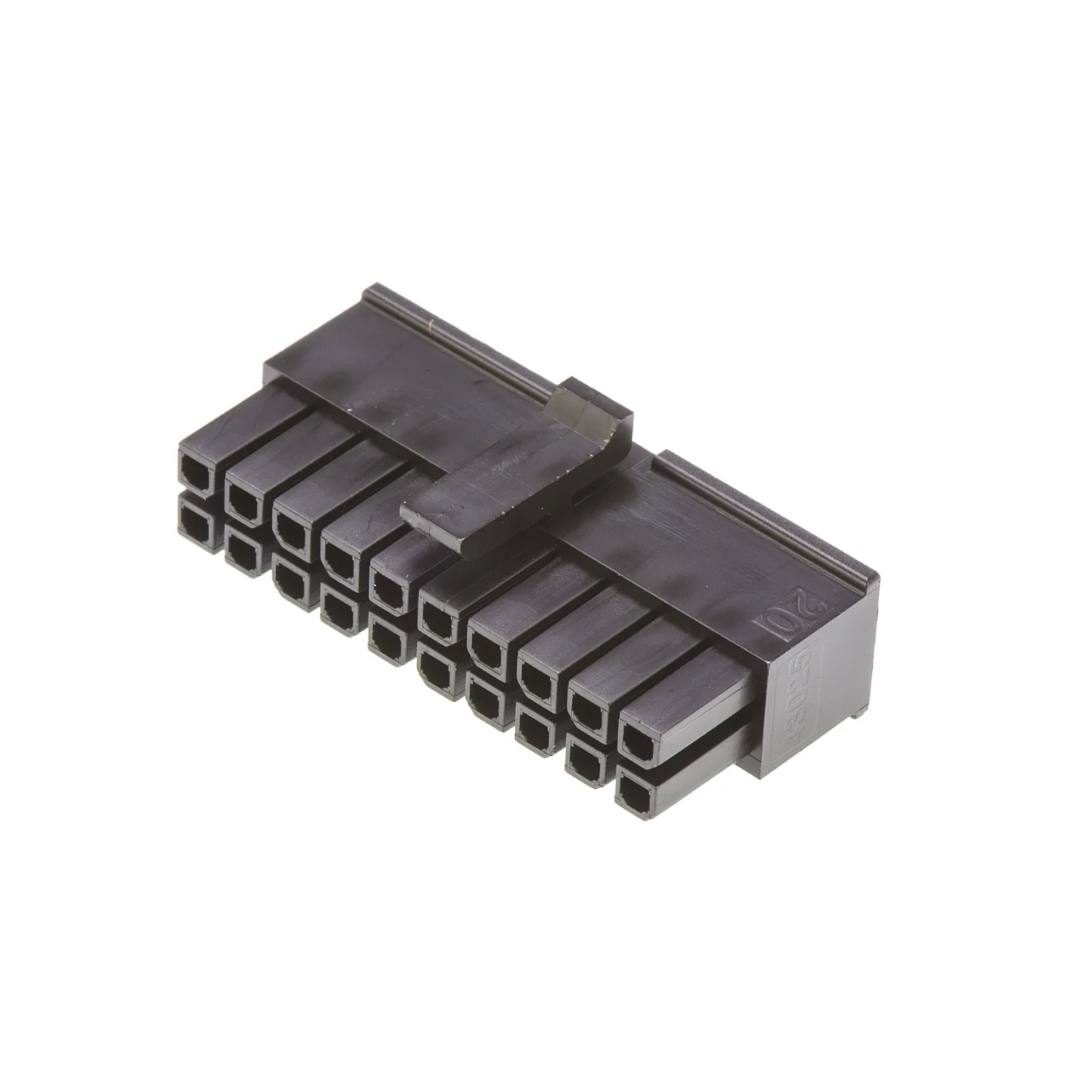

MOLEX 43025-2000 Wire Terminal Housing 3mm 2 Rows, 20 Contacts
3.00mm pitch Micro-Fit 3.0 receptacle Terminal Housing, 20 contacts in 2 rows, latch-lock for secure mating, compact dual-row design for wire-to-wire and wire-to-board use.
8.00 EGP
In stockSKU 3496300159581
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MOLEX 43025-2000 Wire Terminal Housing 3mm 2 Rows, 20 Contacts

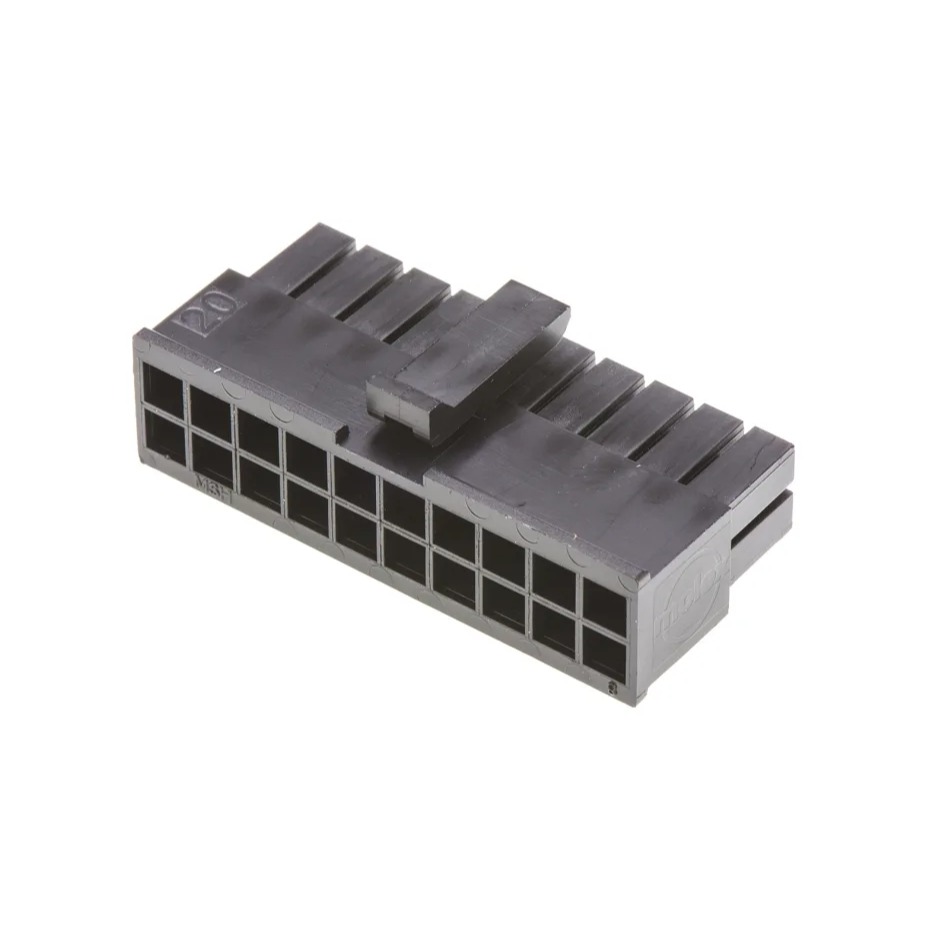

The MOLEX 43025-2000, also identified as 0430252000, is a 20-position female receptacle housing from the Micro-Fit 3.0 43025 series. It is designed to accommodate compatible female crimp terminals and provides a compact multi-position connection for wiring assemblies. The housing has two rows with a 3.00mm pitch.
Features:
- 20-position female receptacle housing.
- 2-row configuration.
- 3.00mm pitch.
- Micro-Fit 3.0 43025 series.
- Free-hanging / in-line mounting.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | 43025-2000 |
| Alternative Part Number | 0430252000 |
| Series | Micro-Fit 3.0 43025 |
| Connector Type | Receptacle Housing |
| Connector Gender | Female / Socket |
| Number of Positions | 20 |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 3.00mm |
| Row Spacing | 3.00mm |
| Mounting Type | Free Hanging / In-Line |
| Termination Type | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Housing Material | Polyamide / Nylon |
| Housing Color | Black |
| Length | 31mm |
| Width | 14mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Compatible Terminal Series | 43030 / 46235 |
| Compatible Mating Series | 43020 / 43045 |
| Application | Wire-to-Wire / Wire-to-Board |
Applications:
- Wire-to-wire connections.
- Wire-to-board connections.
- Electronic wiring harnesses.
- Power and signal cable assemblies.
- Industrial equipment.
- Consumer electronics.
- Computer equipment.
- Control systems.
- Automation equipment.
- Robotics.
- Automotive electronics.
- Embedded electronic systems.
- Compact electrical equipment.
- Custom cable assemblies.
Package Include:
1x MOLEX 43025-2000 Wire Terminal Housing 3mm 2 Rows, 20 Contacts.
