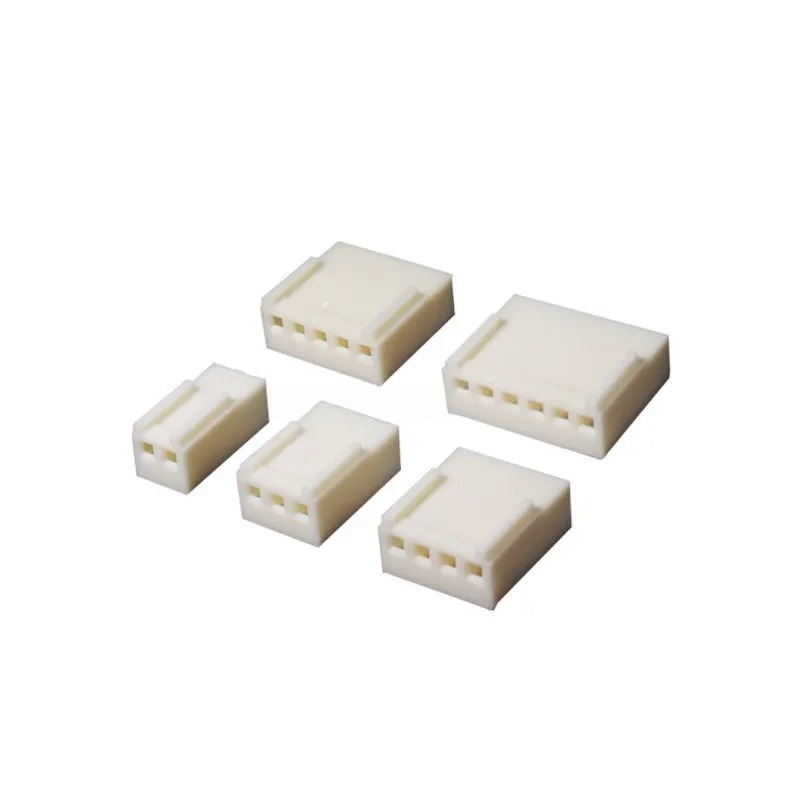

KF2510 JST Data Terminal Female Connector Housing 2.54mm With Crimp Terminal
The KF2510 JST Data Terminal Female Connector Housing is a high-quality, single-row wire-to-board connector from the 2510-compatible series, engineered for reliable signal and power transmission in consumer electronics, industrial controls, 3D printers, robotics, and automotive applications. Manufactured by Zhongle Electronics, this connector family features a 2.54mm pitch and is available in multiple pin configurations to accommodate diverse circuit requirements. Each housing is supplied with matching crimp terminals, ensuring a complete, ready-to-assemble connection solution.
Features:
- 2510-compatible single-row female connector housings with 2.54mm pitch.
- Available in 4, 5, 6, and 7 pin configurations.
- Each variation includes matching ZL25401-PT phosphor bronze tin-plated crimp terminals.
- High-grade nylon housing with UL94V-2 flame retardancy.
- Current rating of 3A per circuit at 250V AC/DC.
- Supports wire gauges from AWG #28 to #22.

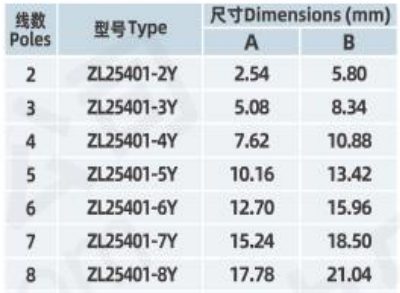

Specifications:
| Product Series | ZL25401 (2510 Compatible) |
| Pitch | 2.54mm |
| Row Count | 1 Row |
| Connector Type | Female Receptacle Housing |
| Termination | Crimp |
| Current Rating | 3A |
| Voltage Rating | 250V AC/DC |
| Contact Resistance | ≤0.02Ω |
| Insulation Resistance | ≥1000MΩ |
| Withstand Voltage | 1000VAC,1Min |
| Wire Gauge | AWG #28~#22 |
| Conductor Area | 0.08mm²~0.33mm² |
| Insulation O.D. | 1.0mm~1.8mm |
| Housing Material | Nylon (UL94V-2) |
| Wafer Material | Nylon (UL94V-0) |
| Terminal Material | Phosphor Bronze, Tin-Plated |
| Pin Material | Phosphor Bronze, Tin-Plated |
| Operating Temperature | -25°C~+85°C |
Applications:
- 3D printer control board and hot end wiring connections.
- Arduino and Raspberry Pi project power distribution.
- RC servo and battery balance lead harnesses.
- Industrial control panel internal signal wiring.
- LED strip and lighting controller connections.
- Consumer electronics and appliance internal harnesses.
- Sensor module and IoT device wiring.
- Robotics and automation equipment connections.

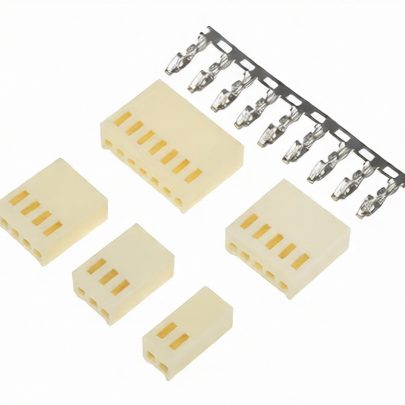

Package Include:
- 1x KF2510 Female Connector Housing (Selected Pin Count).
- 1x Matching Quantity Crimp Terminals (Same count as housing pins).
