Flag-shaped Elbow 2.8mm Terminal Wire with Silicon Cover
2.8mm female flag-shaped elbow Terminal Wire, compact 90° design with protective silicone cover, for right-angle wire connections and protected termination.
2.00 EGP
Buy NowFlag-shaped Elbow 2.8mm Terminal Wire with Silicon Cover

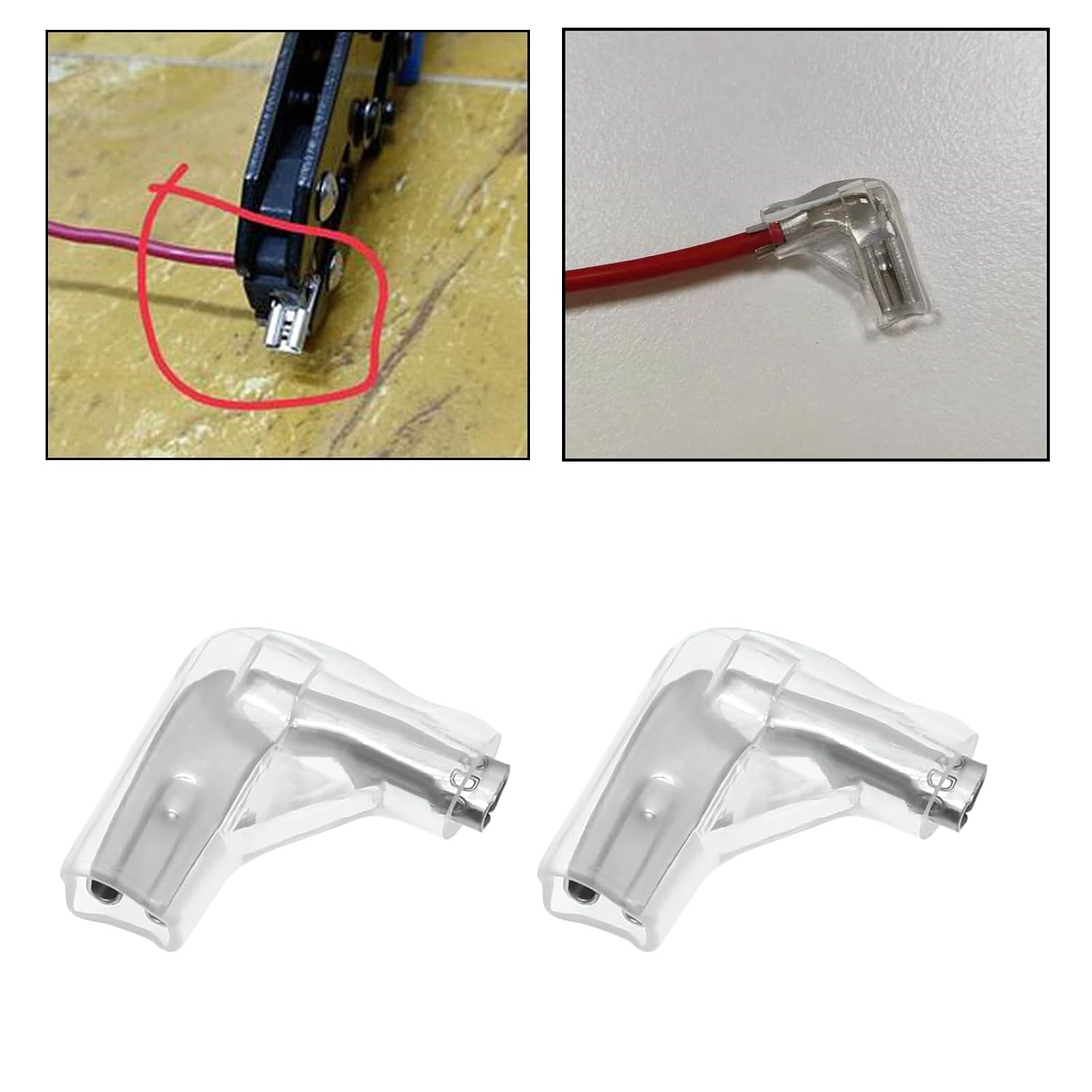

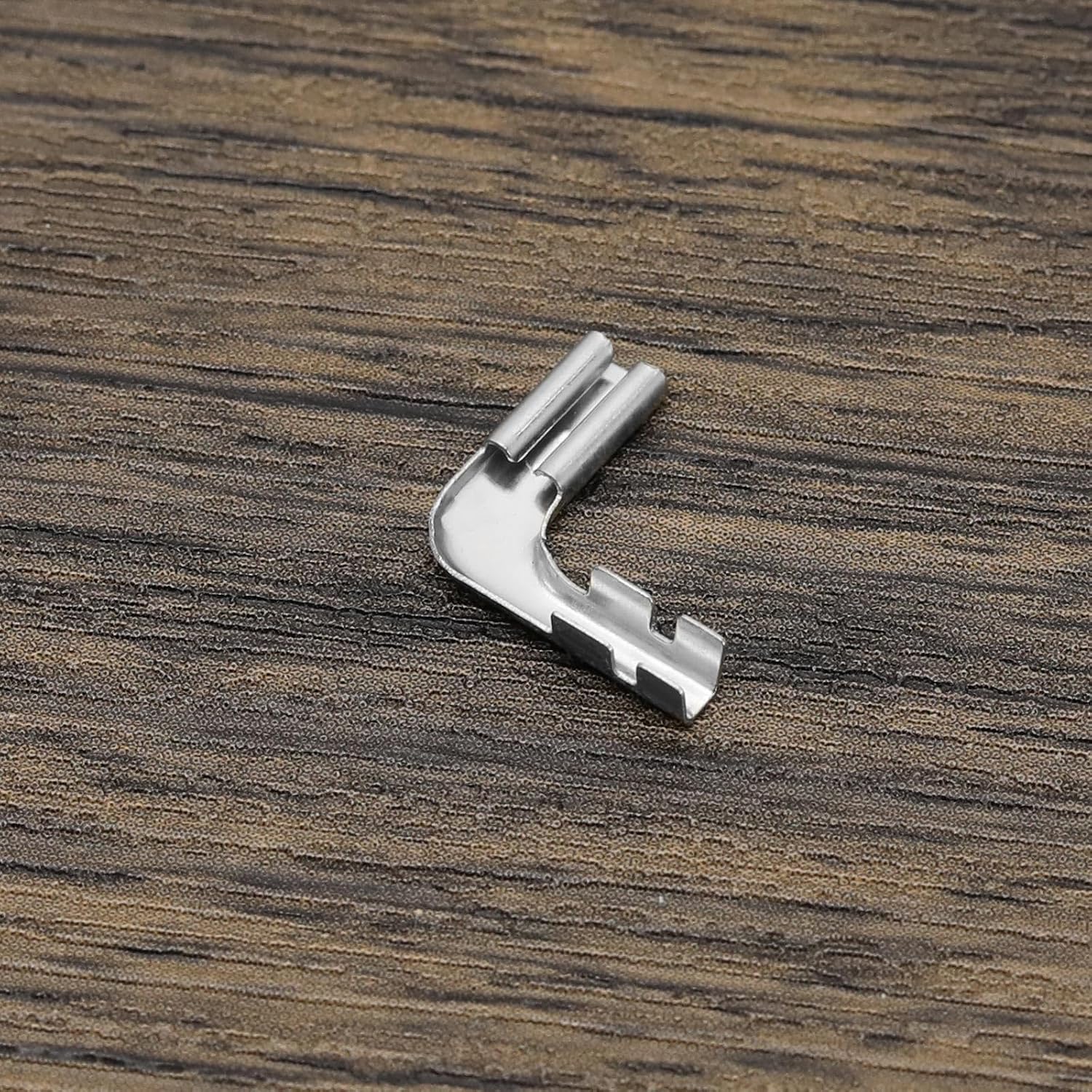

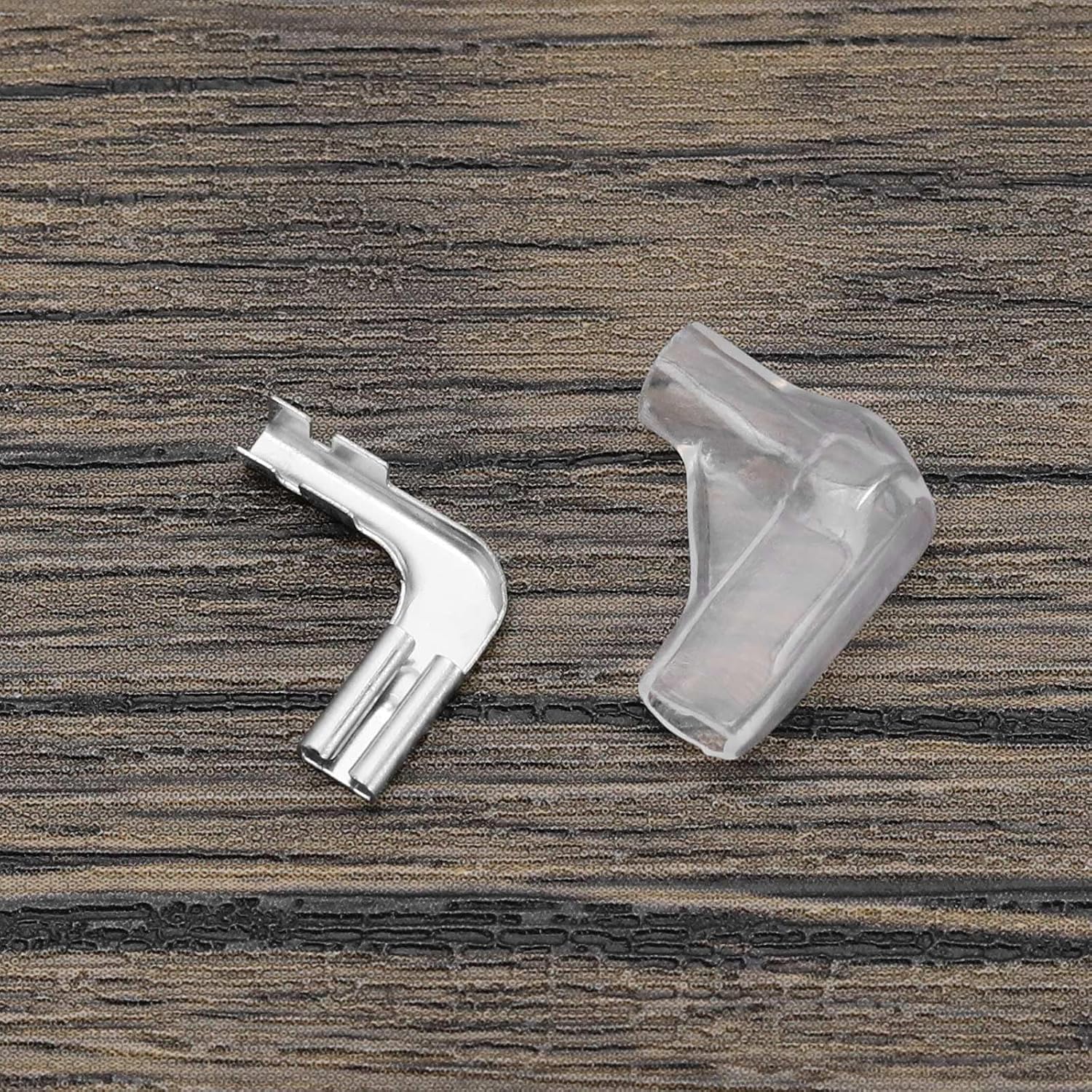

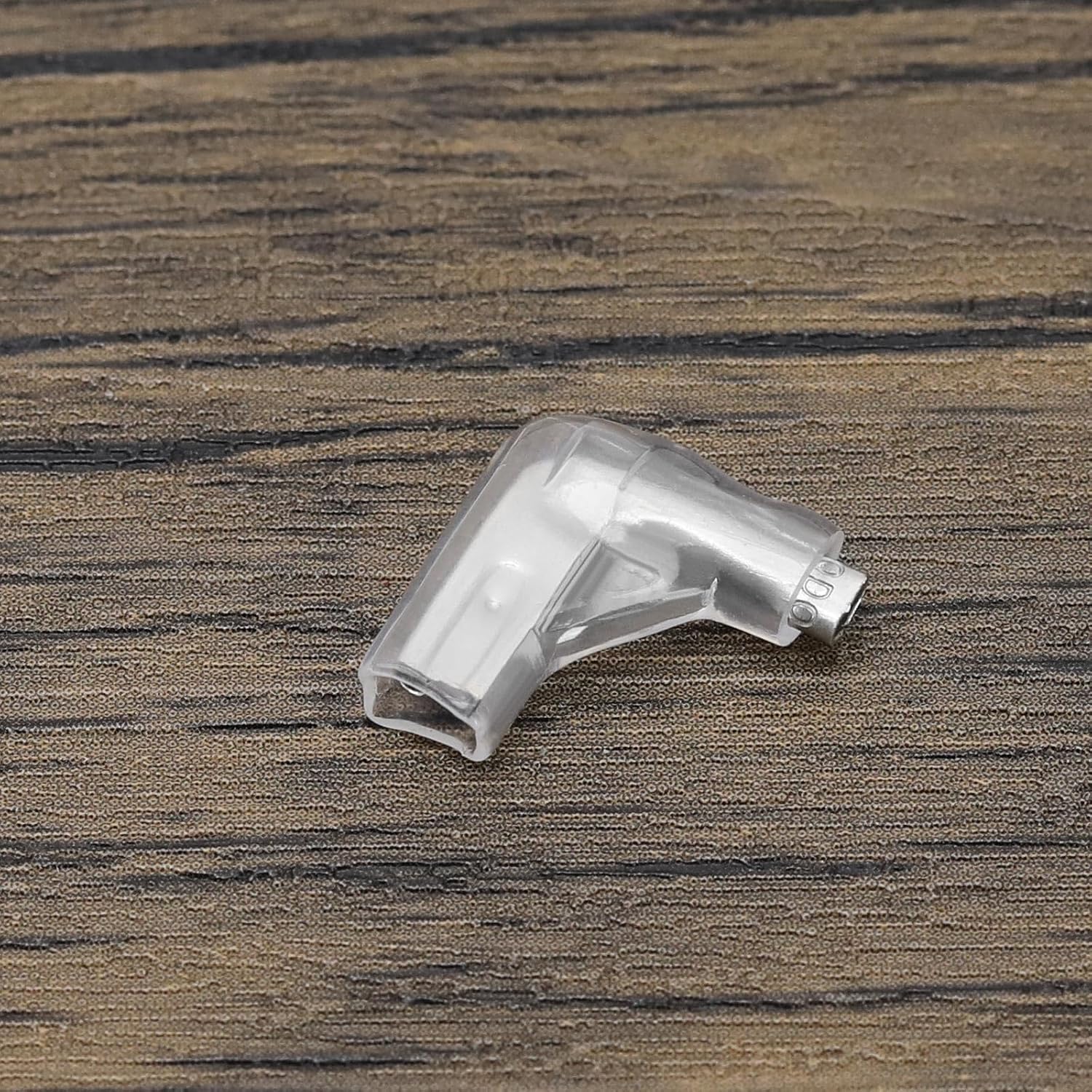

The Flag-shaped Elbow 2.8mm Terminal Wire with Silicone Cover is a compact female blade terminal designed for electrical wire connections where a right-angle connection is preferred. The terminal uses a 2.8mm female blade opening and a 90° flag-style configuration, allowing the connected wire to exit sideways relative to the mating tab.
Features:
- 2.8mm female blade terminal.
- Flag-shaped right-angle configuration.
- Approximately 90° elbow design.
- Crimp-style wire connection.
- Silicone insulating cover.
- Compact construction.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Female Flag Blade Terminal |
| Terminal Style | Flag-Shaped / Right-Angle |
| Mating Terminal Size | 2.8mm |
| Configuration | 90° Elbow |
| Connection Type | Crimp |
| Terminal Type | Female Blade / Spade |
| Insulating Cover | Silicone |

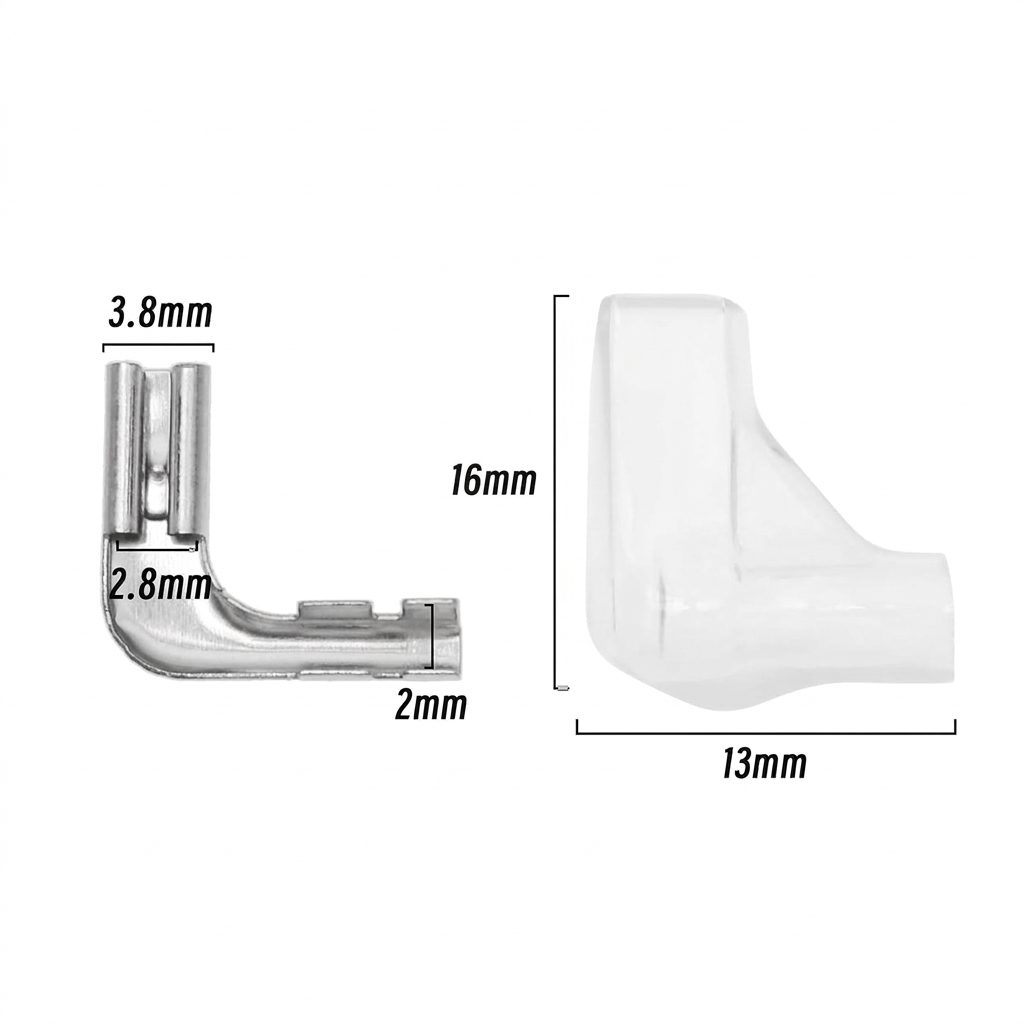

| Terminal Overall Width | 3.8mm |
| Female Mating Opening | 2.8mm |
| Wire Crimp Section Width | 2mm |
| Silicone Cover Height | 16mm |
| Silicone Cover Length | 13mm |
| Wire Direction | Right-Angle / Side Exit |
| Application | Electrical Wire Connection |
Applications:
- Electrical wiring repairs.
- Automotive wiring.
- Motor connections.
- Appliance wiring.
- Electronic equipment.
- Compact wiring harnesses.
- Control panels.
- Power connections.
- Internal equipment wiring.
- Custom cable assemblies.
- Electrical maintenance.
- Replacement of damaged blade terminals.
- Applications requiring a right-angle 2.8mm female connection.
Package Include:
1x Flag-shaped Elbow 2.8mm Terminal Wire with Silicon Cover.
