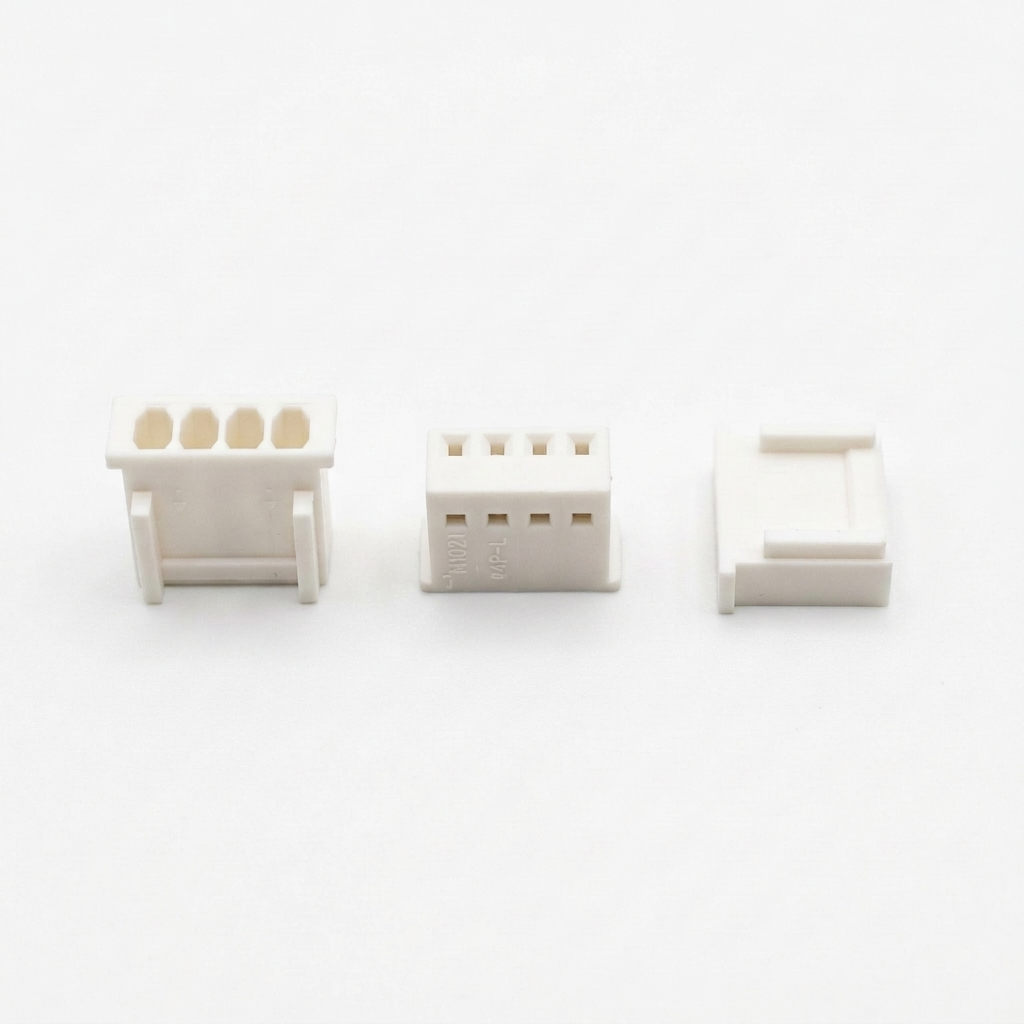

MOLEX 22-01-1044 Wire Terminal Housing 2.5mm 1 Rows, 4 Contacts
2.5mm pitch SPOX 5102 female Wire Terminal Housing, 1 row 4 contacts, polarized friction-lock, natural nylon UL 94 V-0, for wire-to-wire and wire-to-board use.
25.00 EGP
Buy NowMOLEX 22-01-1044 Wire Terminal Housing 2.5mm 1 Rows, 4 Contacts
The MOLEX 22-01-1044 is a 4-position female receptacle housing from the SPOX 5102 series. It is designed to accommodate compatible crimp terminals and provide a secure connection for wire-to-wire and wire-to-board connector assemblies. The housing uses a compact 2.50mm contact pitch and a single-row configuration.
Features:
- 4-position female receptacle housing.
- 1 row with 4 contact positions.
- 2.50mm contact pitch.
- SPOX 5102 series.
- Cable mount / free-hanging design.
- Female socket contact configuration.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | 22-01-1044 |
| Series | SPOX 5102 |
| Also Known As | 5102-04, 0022011044, 22011044 |
| Connector Type | Receptacle Housing |
| Connector Gender | Female / Socket |
| Number of Positions | 4 |
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Pitch | 2.50mm |
| Mounting Type | Cable Mount / Free Hanging |
| Termination Type | Crimp |
| Contact Type | Female Socket |
| Locking Type | Locking Ramp |
| Polarization | Polarized |
| Housing Material | Nylon |
| Housing Color | Natural |
| Flammability Rating | UL 94 V-0 |
| Length | 10.6mm |
| Width | 12.3mm |
| Height | 6.5mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Compatible Contact Series | 5103 |
| Application | Wire-to-Wire / Wire-to-Board |
Applications:
- Wire-to-wire connections.
- Wire-to-board connections.
- Electronic cable assemblies.
- Custom wiring harnesses.
- PCB wiring assemblies.
- Automotive electronics.
- Communications equipment.
- Consumer electronics.
- Industrial equipment.
- Medical electronic equipment.
- Embedded electronic systems.
- Control systems.
- Instrumentation.
- Compact electronic devices.
Package Include:
1x MOLEX 22-01-1044 Wire Terminal Housing 2.5mm 1 Rows, 4 Contacts.
