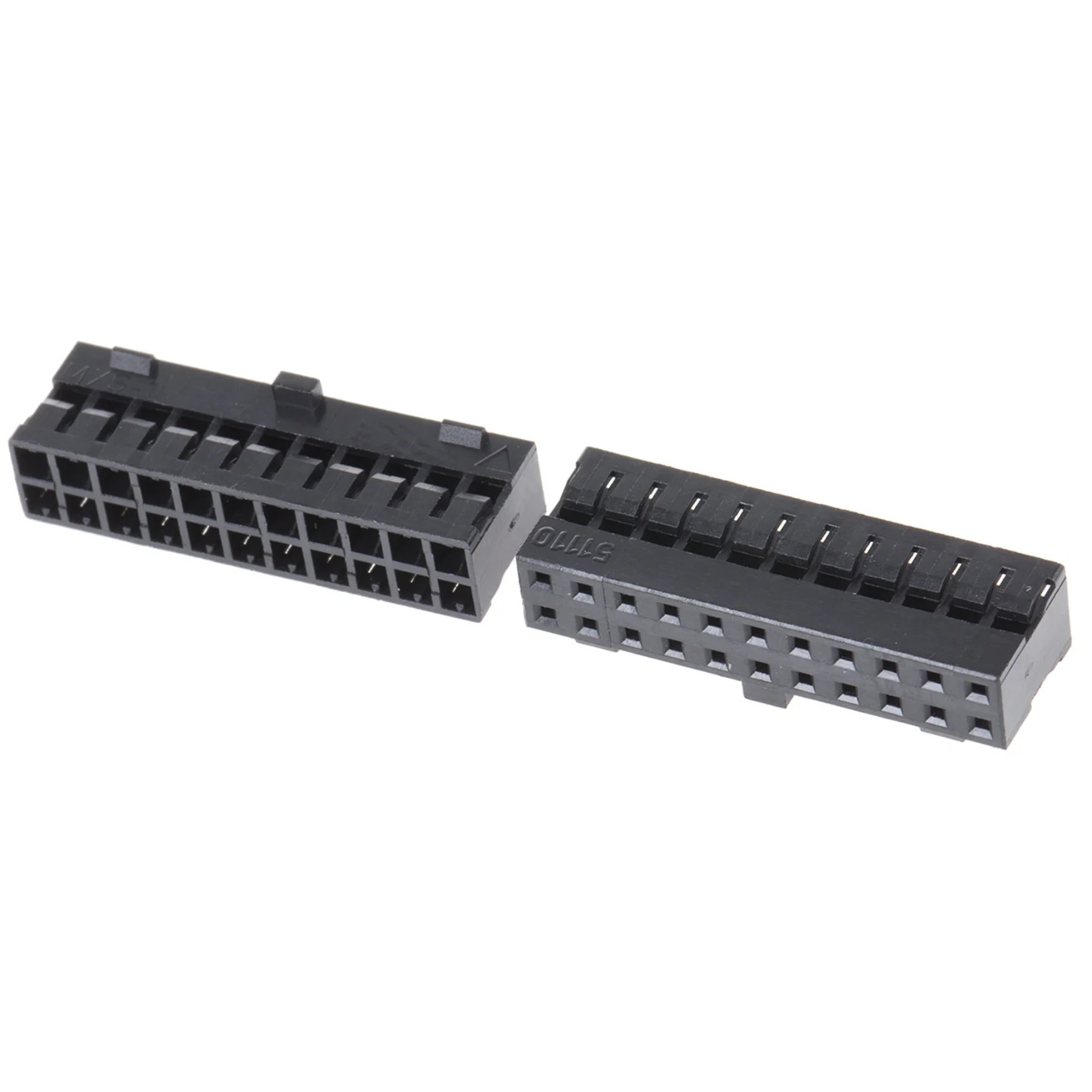

MOLEX 51110-2251 Wire Terminal Housing 2mm 2 Rows, 22 Contacts
2.00mm pitch Milli-Grid female receptacle Terminal Housing, 22 contacts in 2 rows, polarization key and locking ramp, for crimp terminals and high-density wire-to-board use.
75.00 EGP
In stockSKU 3496300159574
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MOLEX 51110-2251 Wire Terminal Housing 2mm 2 Rows, 22 Contacts
The MOLEX 51110-2251, also identified as 0511102251, is a 22-position female receptacle housing from the Milli-Grid 51110 series. It is designed for high-density wire-to-board and signal connection applications using compatible crimp contacts. The housing provides 22 contact positions arranged in two rows on a 2.00mm grid.
Features:
- 22-position female receptacle housing.
- 2-row configuration.
- 2.00mm pitch.

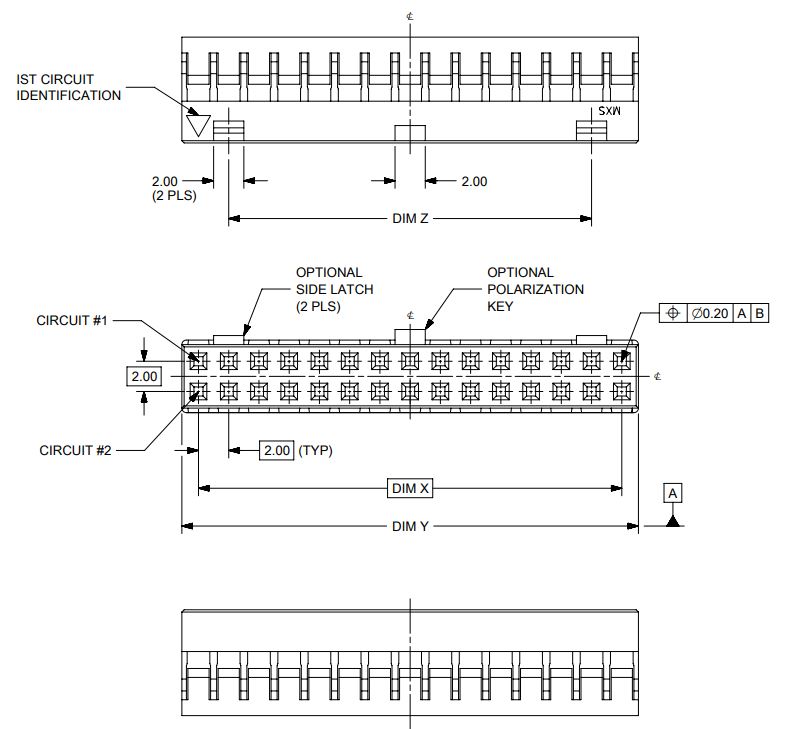

- 2.00mm × 2.00mm grid pattern.
- Milli-Grid 51110 series.
- Cable mount / free-hanging design.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | 51110-2251 |
| Alternative Part Number | 0511102251 |
| Series | Milli-Grid 51110 |
| Connector Type | Receptacle Housing |
| Connector Gender | Female / Socket |
| Number of Positions | 22 |
| Number of Contacts | 22 |
| Number of Rows | 2 |
| Pitch | 2.00mm |
| Grid Pattern | 2.00mm × 2.00mm |
| Mounting Type | Cable Mount / Free Hanging |
| Termination Type | Crimp |
| Contact Type | Female Socket |
| Locking Type | Locking Ramp |
| Polarization | Center Polarization Key |
| Housing Color | Black |
| Insulation Material | Glass-Filled Polyester |

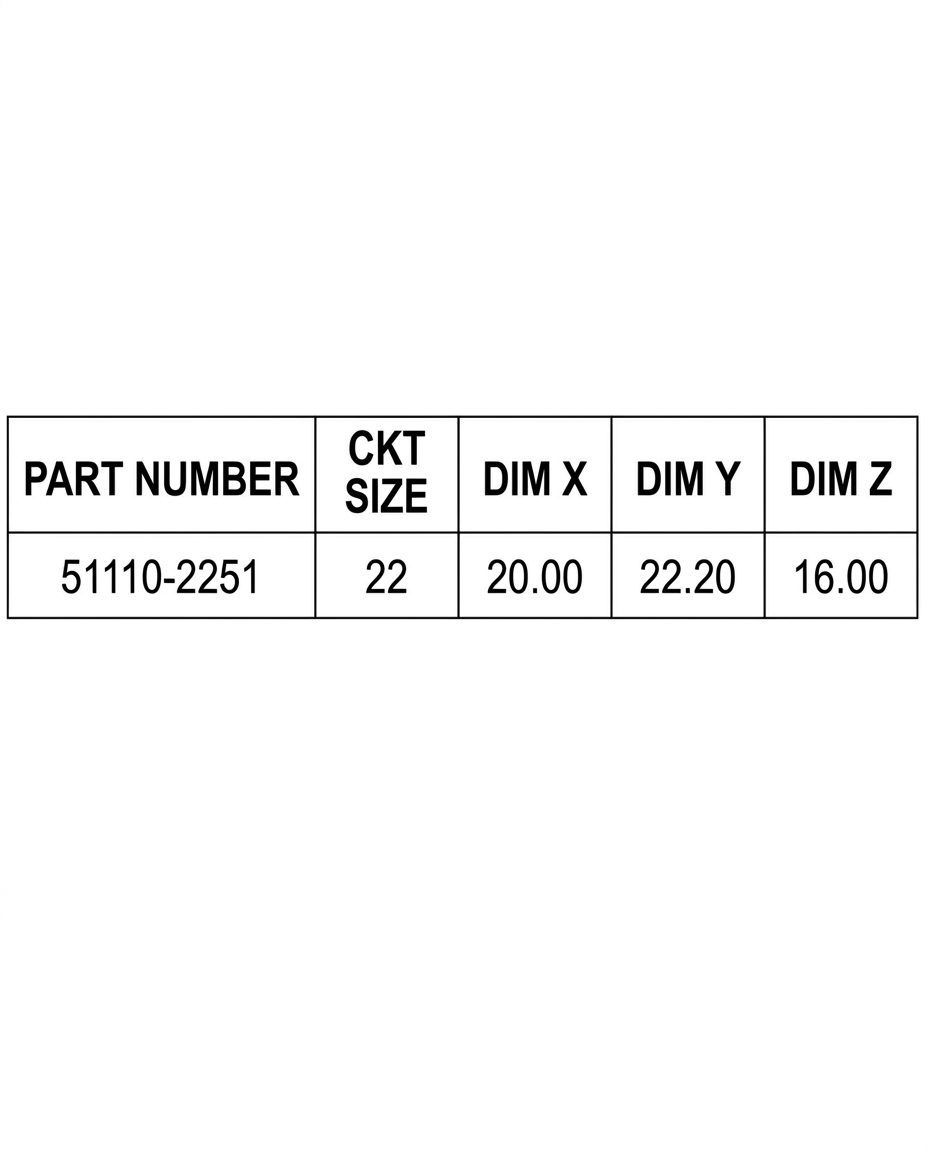

| Length | 22.2mm |
| Width | 4.8mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Compatible Contact Series | 50394 |
| Application | Signal / Wire-to-Board |
Applications:
- Wire-to-board connections.
- Signal connections.
- Electronic wiring harnesses.
- High-density cable assemblies.
- PCB interconnections.
- Computer equipment.
- Telecommunications equipment.
- Industrial electronics.
- Automotive electronics.
- Robotics.
- Embedded electronic systems.
- Control equipment.
- Compact electronic devices.
- Custom cable assemblies.
Package Include:
1x MOLEX 51110-2251 Wire Terminal Housing 2mm 2 Rows, 22 Contacts.
