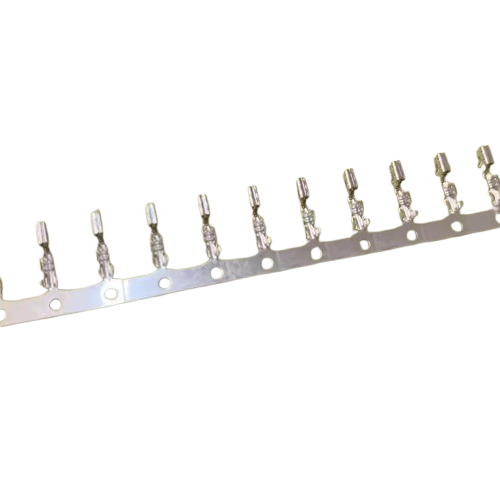

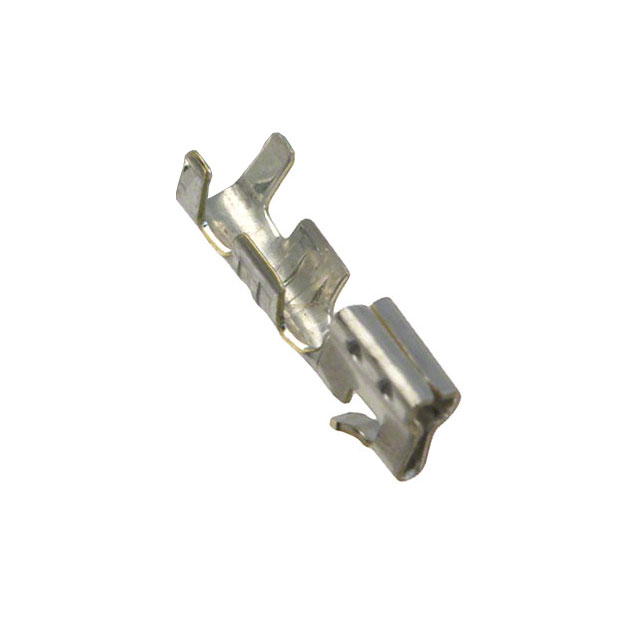

MOLEX 0870-0056 Female Wire Terminal
The 0870-0056, also identified as 0008700056, is a female wire terminal designed for crimp termination in compatible wire-to-board connector systems. It is part of the 5103 series and is identified as a SPOX crimp terminal. The terminal provides a female socket contact for mating with the corresponding male contact within a compatible connector housing.
Features:
- Female socket contact
- Model number 0870-0056 / 0008700056
- 5103 series crimp terminal
- SPOX connector system
- Suitable for 22-28 AWG wire
- Crimp or compression termination
Specifications.
| Parameter | Value |
|---|---|
| Connector Type | Female Crimp Contact |
| Model Number | 0870-0056 / 0008700056 |
| Engineering Number | 5103T |
| Series | 5103 |
| Connector System | SPOX |
| Product Category | Crimp Terminal |
| Contact Type | Socket / Female |
| Contact Material | Brass |
| Contact Finish | Tin |
| Mating Plating Thickness | 0.889µm minimum |
| Termination Plating Thickness | 0.889µm minimum |
| Termination Type | Crimp or Compression |
| Wire Size | 22, 24, 26, 28 AWG |
| Wire Range | 22-28 AWG |
| Maximum Wire Insulation Diameter | 1.90mm |
| Maximum Current Per Contact | 3.0A |
| Maximum Voltage | 250V |
| Maximum Mating Cycles | 30 |
| Mounting Style | Straight / Cable Mount |
| Application | Signal / Wire-to-Board |
Applications:
- Wire-to-board connector assemblies.
- Signal connections.
- Electronic control systems.
- PCB wiring assemblies.
- Compact electronic equipment.
- Cable-to-connector assemblies.
- Internal equipment wiring.
- Low-power electrical connections.
- Connector harness assemblies.
- Custom electronic cable assemblies.
Package Include:
1x MOLEX 0870-0056 Female Wire Terminal.
