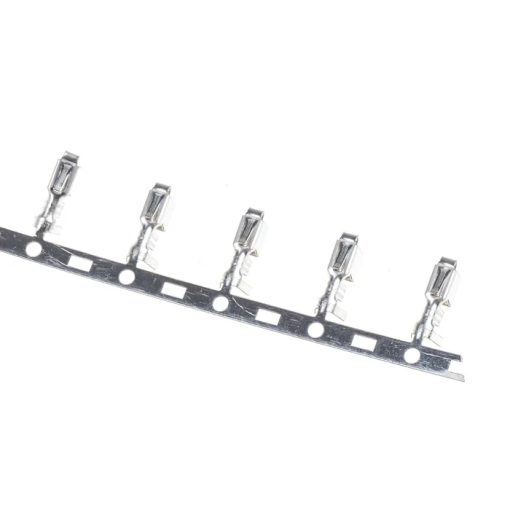

JST VH 3.96mm Female Crimp Terminal
JST VH Series Female Crimp Terminal with 3.96mm pitch compatibility, tin-plated phosphor bronze construction, and reliable crimp connection for power and signal applications.
1.00 EGP
Buy NowJST VH 3.96mm Female Crimp Terminal
The JST VH 3.96mm Female Crimp Terminal is a high-quality crimp contact designed for use with JST VH Series connector housings. It is widely used in wire-to-board power and signal connections where reliable electrical performance, high current carrying capability, and secure mechanical retention are required.
Features:
- Compatible with JST VH Series connector housings.
- Standard 3.96mm pitch connector system.
- Female crimp contact.
- Low contact resistance.
- Excellent corrosion resistance.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Female Crimp Terminal |
| Series | JST VH Series |
| Model | SVH-21T-P1.1 |
| Compatible Pitch | 3.96mm |
| Gender | Female |
| Termination Type | Crimp |
| Compatible Housings | VHR Series |
| Available Housing Models | VHR-2N~VHR-13N |
| Rated Current | 10A |
| Rated Voltage | 250VAC/DC |
| Applicable Wire Size | AWG22~18 |
| Applicable Wire Size | 0.3mm²~0.8mm² |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin Plated |
| Contact Resistance | 10mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Operating Temperature | -25°C~+85°C |
| Length | 52mm |
| Width | 14mm |
Applications:
- JST VH cable assemblies.
- Switching power supplies.
- Battery packs and chargers.
- Industrial control systems.
- Robotics projects.
- LED lighting systems.
- Motor control circuits.
- Consumer electronics.
- Home appliances.
- Signal and power wiring.
Package Include:
1x JST VH 3.96mm Female Crimp Terminal.
