JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module
JSY-MK-227 100A DC Meter High-precision RS-485 Modbus-RTU module with onboard 100A shunt. Monitors DC voltage, current, power, and energy consumption.
2,600.00 EGP
In stockSKU 34963001530610
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast

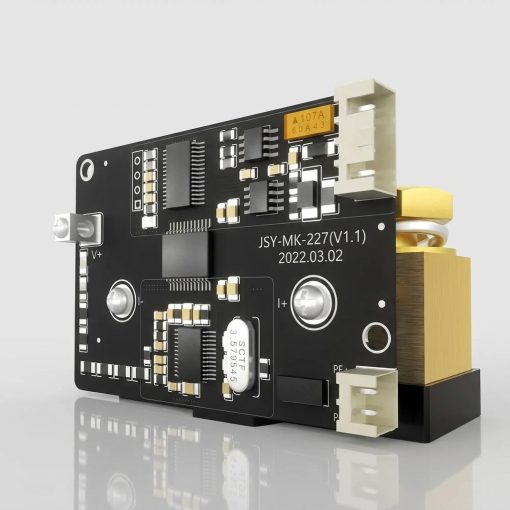

JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module
The JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module is a compact and highly integrated DC power monitoring solution designed for accurate measurement and transmission of electrical parameters in DC systems. Featuring an onboard precision shunt and a dedicated energy measurement chipset, the module provides reliable monitoring of voltage, current, power, and accumulated energy consumption while maintaining excellent measurement stability and accuracy.
Features:
- Accurate DC voltage, current, power, and energy measurement.
- Integrated onboard 100A precision shunt.
- Single-channel DC acquisition module.
- RS-485 communication interface.
- Supports Modbus-RTU communication protocol.
- Dedicated energy measurement IC with 24-bit ADC sampling.
- Class 1 energy metering accuracy.
- High-voltage isolation design up to 4000VDC.
- Compact PCB-mount construction.
- Low power consumption.
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JSY-MK-227 |
| Manufacturer | Shenzhen Jiansiyan Technologies |
| Measurement Type | DC Single-Channel |
| Voltage Range | DC1-400V |
| Voltage Resolution | 0.01V |
| Current Range | DC50mA-100A |
| Current Resolution | 0.01A |
| Active Power Accuracy | IEC62053-21Class1 |
| Energy Accuracy | IEC62053-21Class1 |
| Overall Accuracy | ≤±1.0% |
| Measurement Parameters | Voltage,Current,ActivePower,PowerFactor,Frequency,Temperature,Humidity |
| Communication Interface | RS485 |
| Communication Protocol | Modbus-RTU |
| Default Baud Rate | 9600bps |
| Data Format | N,8,1 |
| Default Communication Address | 1 |
| Power Supply | DC5V/DC12V |
| Power Consumption | <80mA |
| Operating Temperature | -20°C~+60°C |
| Module Dimensions | 65mmx45mmx43mm |
| Mounting Type | Screw Terminal |
Configuration:
Applications:
- DC power monitoring systems.
- EV charging stations.
- Battery energy storage systems.
- Solar power installations.
- Telecommunications equipment.
- Industrial automation systems.
- Railway power monitoring.
- Energy management systems.
- DC distribution cabinets.
- Power consumption monitoring and analysis.
Package Include:
- 1x JSY-MK-227 100A RS-485 DC Single Channel Acquisition Module
- 1x 4pin Connector
