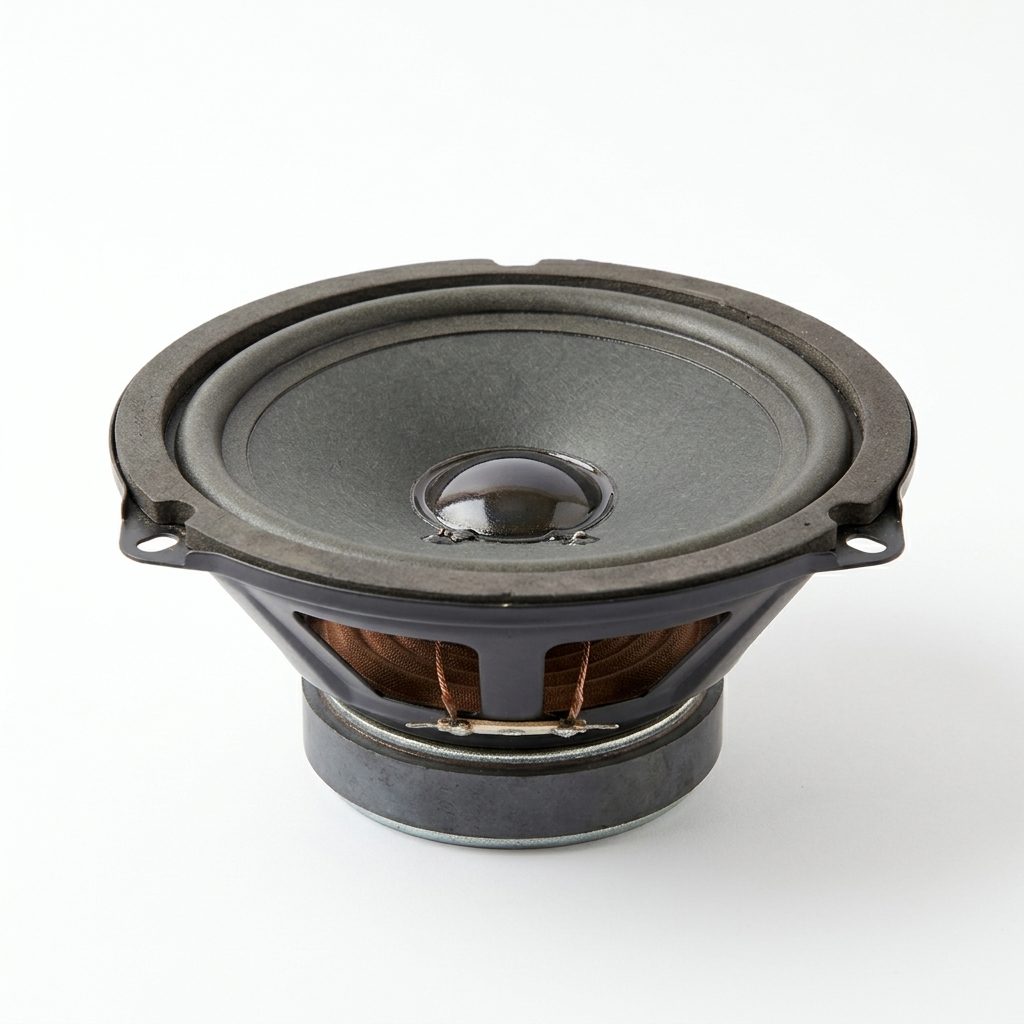

KBN-630 Speaker 4Ω 2W 6 INCH
The KBN-630 Speaker 4Ω 2W 6 INCH is a robust full-range audio driver designed for versatile sound reproduction in compact and medium-sized enclosures. Featuring a 6-inch diameter cone and a substantial 70mm magnet structure, this speaker delivers clear midrange and bass response suitable for various audio applications. With a nominal impedance of 4 ohms and a power handling capacity of 2 watts, it is an excellent choice for DIY audio projects, portable sound systems, and integration with amplifier circuits. The unit stands 43mm in height, allowing for easy mounting in standard speaker cabinets while maintaining a low profile.
Features:
- 6-inch full-range driver design for wide frequency coverage.
- 4-ohm impedance ensures compatibility with standard amplifier circuits.
- 2-watt RMS power handling provides reliable and consistent audio output.
- Large 70mm magnet diameter improves magnetic flux and overall efficiency
Specifications:
|
Parameter
|
Value
|
|---|---|
|
Model Number
|
KBN-630
|
|
Speaker Type
|
Full-Range
|
|
Nominal Diameter
|
6 Inch
|
|
Impedance
|
4Ω
|
|
Power Handling (RMS)
|
2W
|
|
Frequency Response
|
80Hz-12kHz
|
|
Sensitivity
|
88dB
|
|
Magnet Diameter
|
70mm
|
|
Overall Height
|
43mm
|
|
Cone Material
|
Paper
|
|
Basket Material
|
Iron
|
Applications:
- DIY home audio speaker systems and bookshelf speakers.
- Portable Bluetooth and wireless speaker projects.
- Small public address (PA) systems.
- Guitar amplifier cabinets and practice amps.
- Car audio replacement and upgrade speakers.
- Educational electronics and physics projects.
Package Include:
1x KBN-630 Speaker 4Ω 2W 6 INCH.
