KBPC1010 Bridge Rectifier 10A 1000V
The KBPC1010 Bridge Rectifier is a robust full-wave rectifier module designed for efficient AC to DC power conversion in medium and high-power electronic applications. It combines four high-current diodes in a single compact package, making it ideal for use in power supplies, battery chargers, motor controllers, industrial automation systems, and inverter circuits. Its metal case construction improves heat dissipation and enhances reliability during continuous operation.
Designed for high voltage and high current applications, the KBPC1010 provides stable electrical performance with low reverse leakage current and strong surge current capability. The isolated metal case design allows safer mounting and improved thermal management. This bridge rectifier is widely used in industrial equipment, home appliances, LED power systems, and heavy-duty DC power conversion applications.
Features:
- Single-phase full bridge rectifier.
- High current handling capability.
- High surge current performance.
- Electrically isolated metal case.
- Low reverse leakage current.
- Efficient AC to DC conversion.
- Durable and compact construction.
- Suitable for PCB and chassis mounting.
- Reliable thermal dissipation.
- Suitable for industrial and consumer electronics.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | KBPC1010 |
| Device Type | Bridge Rectifier |
| Rectifier Configuration | Single Phase Full Bridge |
| Average Rectified Output Current | 10A |
| Peak Repetitive Reverse Voltage | 1000V |
| RMS Reverse Voltage | 700V |
| Forward Voltage Drop | 1.2V |
| Peak Forward Surge Current | 200A |
| Reverse Leakage Current | 10µA |
| Isolation Voltage | 2500V |
| Operating Temperature Range | -65°C to +150°C |
| Package Type | KBPC |
| Mounting Type | Through Hole / Chassis Mount |

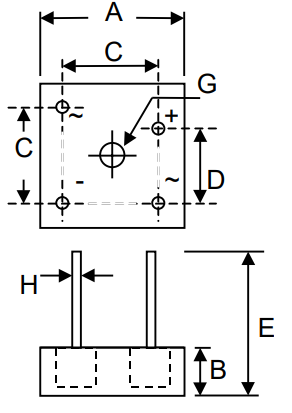

Pinout:
| Pin Symbol | Description |
|---|---|
| + | Positive DC Output |
| – | Negative DC Output |
| ~ | AC Input Terminal |
| ~ | AC Input Terminal |
Applications:
- AC to DC power supplies.
- Battery charging circuits.
- Industrial automation systems.
- Motor drives and controllers.
- LED driver power supplies.
- Welding equipment.
- Inverters and converters.
- Home appliances.
- Switching power supplies.
- DIY electronic projects.
Package Included:
- 1x KBPC1010 Bridge Rectifier 10A 1000V.
