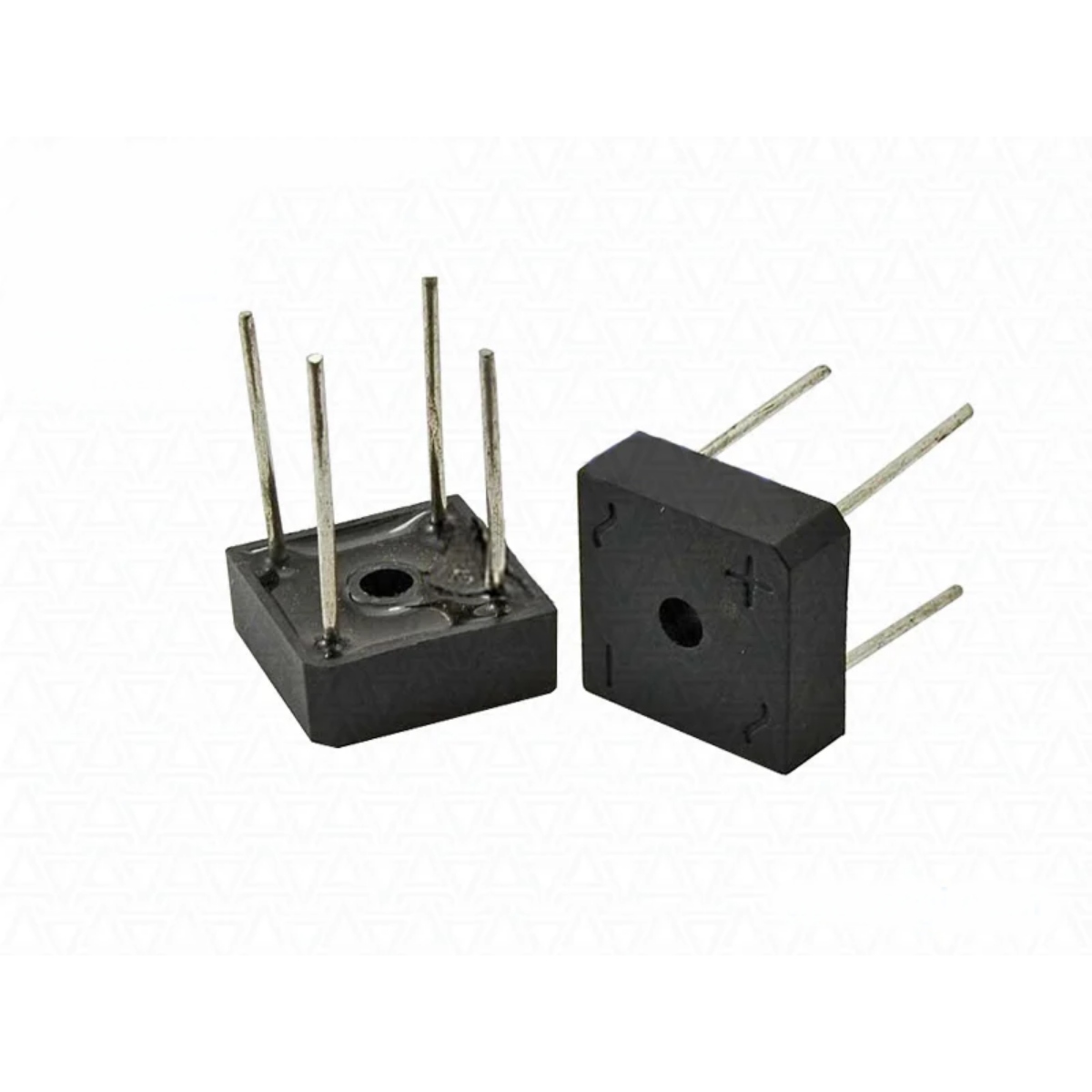

KBPC410 Bridge Rectifier 1000V 4A
The KBPC410 Bridge Rectifier is a reliable electronic component designed for efficient AC to DC conversion in a wide range of power applications. It integrates four rectifier diodes in a compact bridge configuration, allowing simple and effective full-wave rectification. This component is widely used in power supplies, battery chargers, industrial control systems, adapters, and electronic equipment requiring stable DC voltage from an AC source.
Built with glass passivated die construction, the KBPC410 provides dependable electrical performance, high surge current capability, and stable thermal characteristics. Its rugged package design supports both PCB and chassis mounting, making it suitable for industrial and consumer electronics. The bridge rectifier is ideal for medium-power rectification applications where durability and high reverse voltage protection are required.
Features:
- Single-phase full bridge rectifier.
- High surge current capability.
- Glass passivated construction.
- Compact and durable package.
- Low forward voltage drop.
- Suitable for PCB mounting.
- Reliable AC to DC conversion.
- High voltage handling capability.
- Stable thermal performance.
- Suitable for industrial and consumer electronics.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | KBPC410 |
| Device Type | Bridge Rectifier |
| Average Rectified Output Current | 4A |
| Peak Repetitive Reverse Voltage | 1000V |
| RMS Reverse Voltage | 700V |
| Forward Voltage Drop | 1.1V |
| Peak Forward Surge Current | 140A |
| Non-Repetitive Peak Forward | 80A |
| Peak Reverse Current | 5uA |
| At Rated DC Blocking Voltage @25°C | 500uA |
| Operating Temperature Range @125°C | -55°C to +150°C |
| Package Type | KBP |
| Mounting Type | Through Hole |
| Rectifier Type | Single Phase Full Bridge |
Pinout:
| Pin Symbol | Description |
|---|---|
| + | Positive DC Output |
| – | Negative DC Output |
| ~ | AC Input Terminal |
| ~ | AC Input Terminal |
Applications:
- AC to DC power supplies.
- Battery charging systems.
- Power adapters.
- LED driver circuits.
- Industrial automation equipment.
- Motor drive circuits.
- Home appliances.
- Switching power supplies.
- DIY electronic projects.
- Embedded power systems.
Package Included:
- 1x KBPC410 Bridge Rectifier 1000V 4A.
