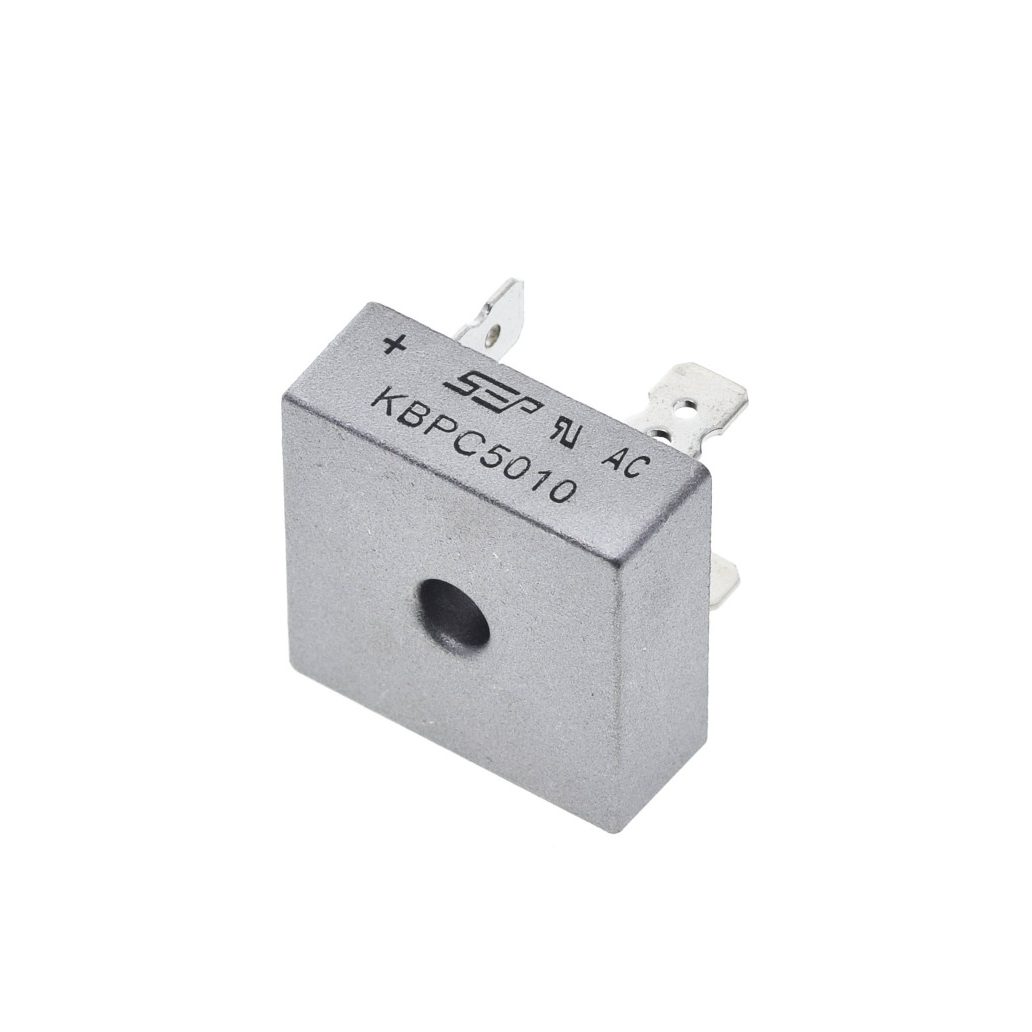

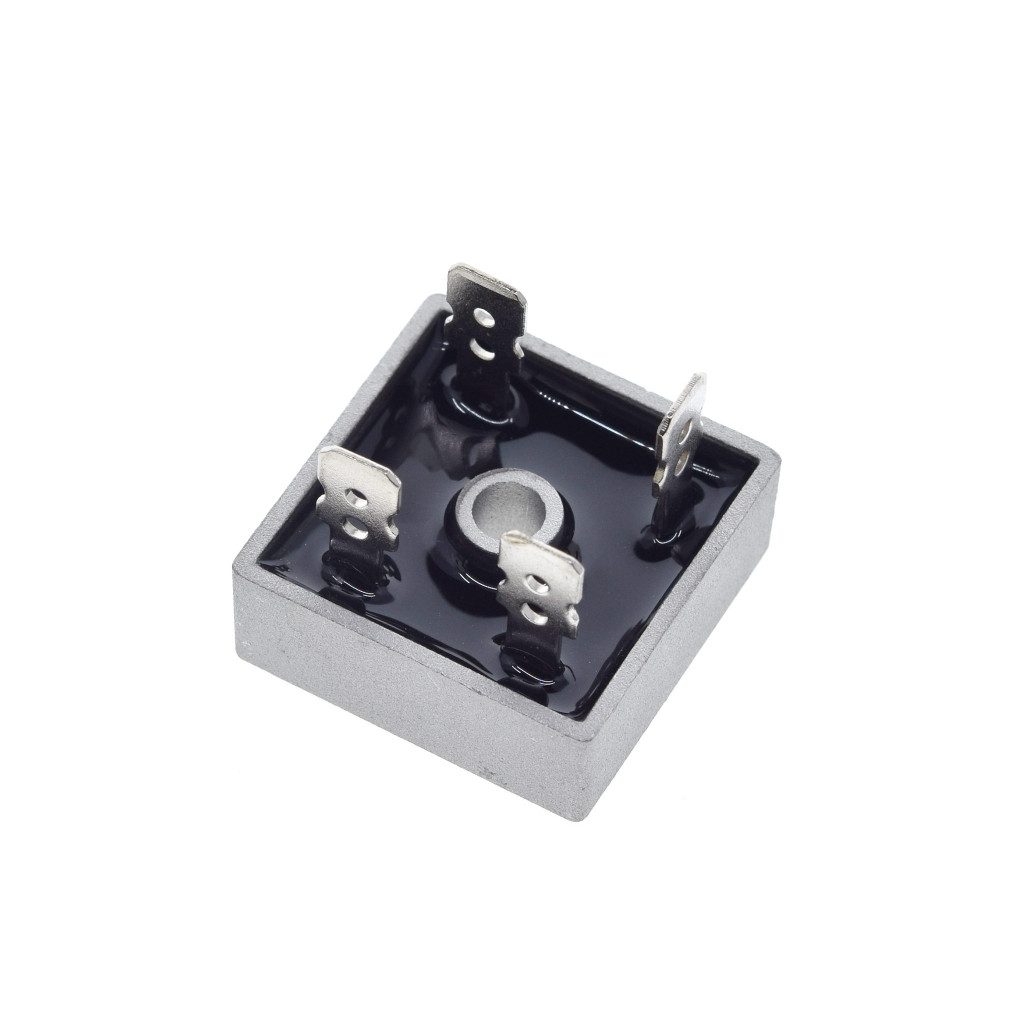

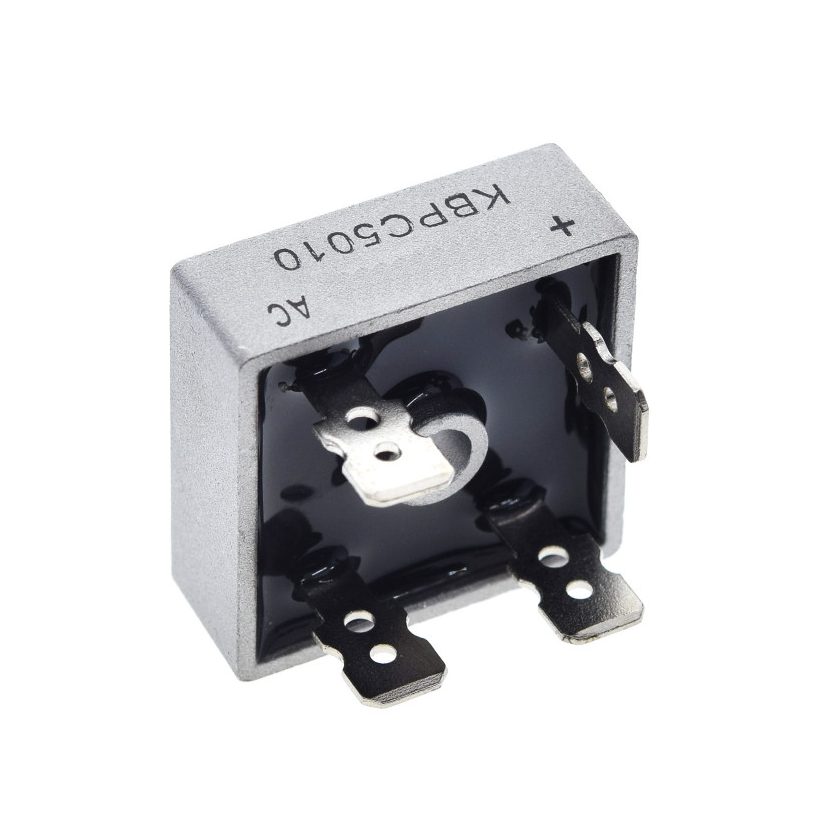

KBPC5010 Bridge Rectifier 1000V 50A
KBPC5010 Bridge Rectifier 1000V 50A is a robust and reliable single-phase bridge rectifier module used for converting alternating current (AC) into direct current (DC) in power electronics applications. With a maximum average forward current of 50A and a peak reverse voltage rating of 1000V, it is suitable for high-power power supplies, battery chargers, industrial control systems, motor drives, and welding equipment. The compact metal-case package provides excellent heat dissipation and allows easy mounting to a heatsink for enhanced thermal performance. Its durable construction ensures stable operation and long service life in demanding environments.
Features
- High current handling capability of up to 50A.
- High reverse voltage rating of 1000V.
- Efficient single-phase AC to DC rectification.
- Compact and rugged metal-case package.
- Easy chassis or heatsink mounting design.
- High surge current capability for reliability.
- Suitable for industrial and power supply applications.
- Excellent thermal performance.
- Long operational life and stable performance.
- Low forward voltage drop for improved efficiency.
Specifications
| Parameter | Details |
| Product Name | Bridge Rectifier |
| Rectifier Type | Single Phase Bridge Rectifier |
| Model Number | KBPC5010 |
| Maximum Average Forward Current | 50A |
| Load Current | 50A |
| Max. Off-State Voltage | 1000V |
| RMS Reverse Voltage | 700V |
| Max. Forward Impulse Current | 500A |
| Max. Forward Voltage | 1.1V |
| Forward Voltage Drop | 1.1V |
| Version | Square |
| Mounting Type | Through Hole |
| Electrical Mounting | THT |
| Leads | FASTON Connectors |
| Terminal Count | 4 Pins |
| Kind Of Package | Bulk |
| Package / Case | 4-Square KBPC |
| Housing Material | Epoxy Molded Body With Metal Base |
| Heat Dissipation | Heatsink Mountable Via Center Hole |
| Terminal Type | Plated 0.25″(6.35mm) Faston Lugs |
| Solder Ability | MIL-STD-202E Method 208 Guaranteed |
| Flammability Rating | UL94V-0 |
| Operating Temperature Range | -55°Cto+150°C |
| Applications | AC To DC Conversion |

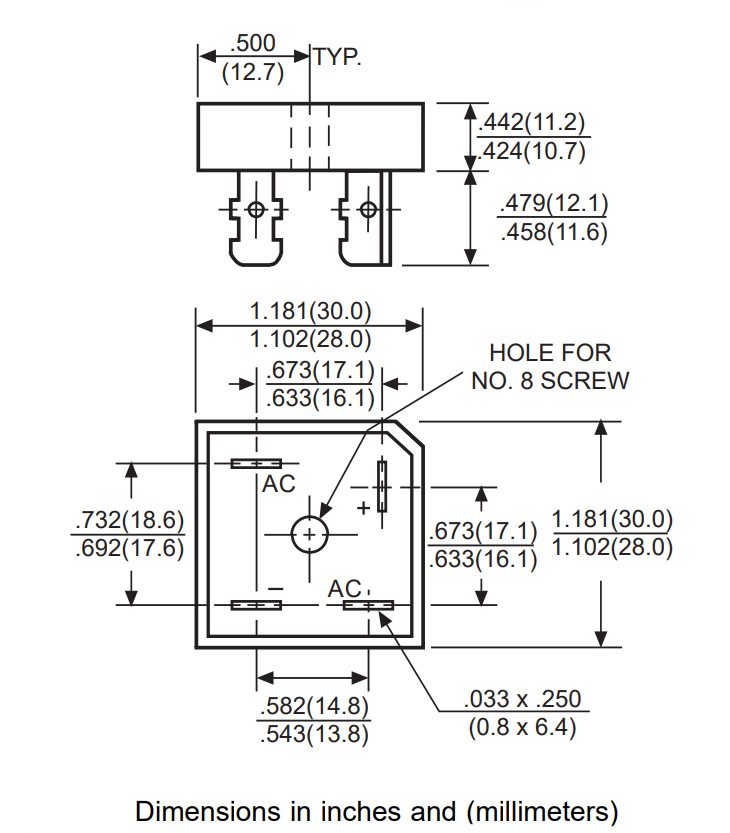

Dimensions

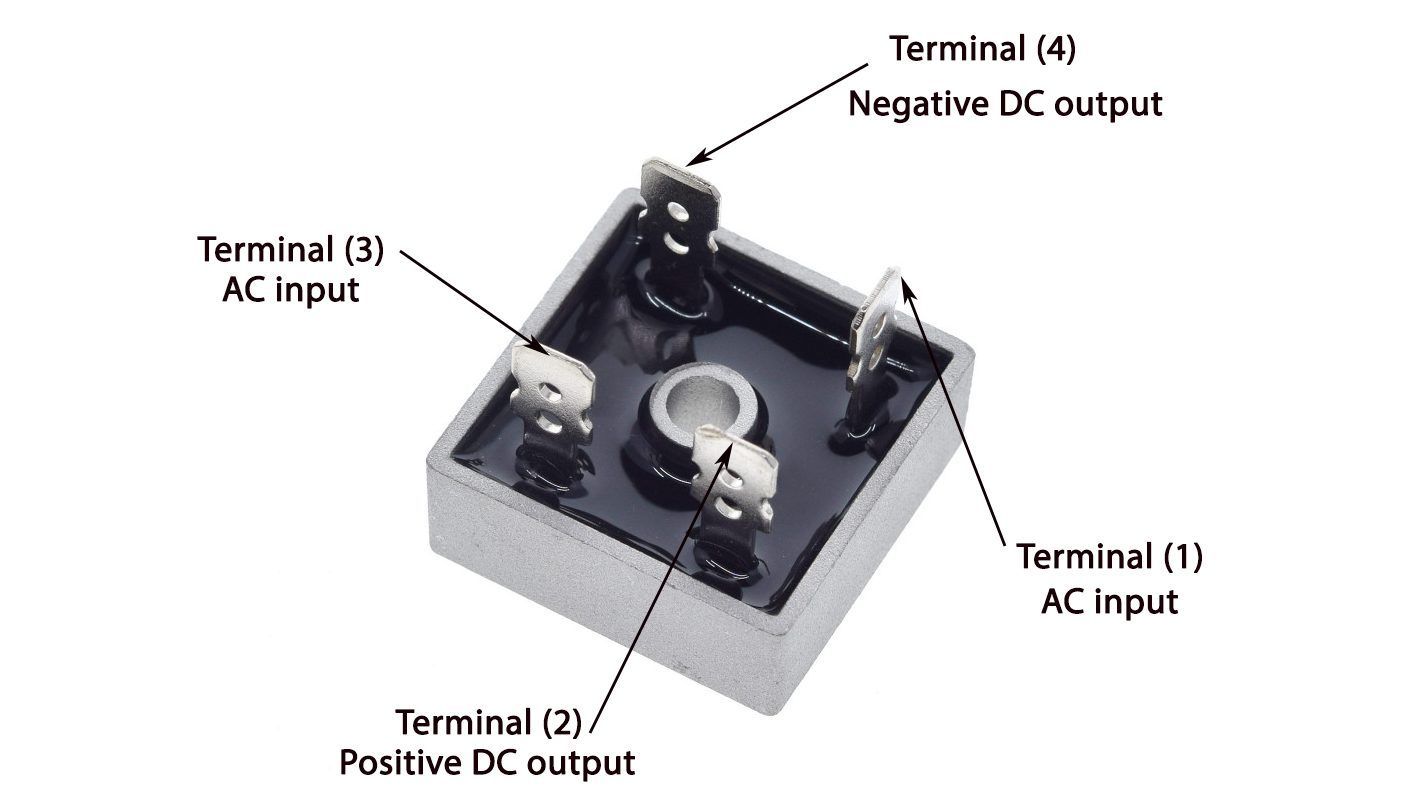

Pin Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | AC (~) | AC input terminal. |
| 2 | Positive (+) | Positive DC output terminal. |
| 3 | AC (~) | AC input terminal. |
| 4 | Negative (-) | Negative DC output terminal. |
Package Contents
- 1 x KBPC5010 Bridge Rectifier 1000V 50A
