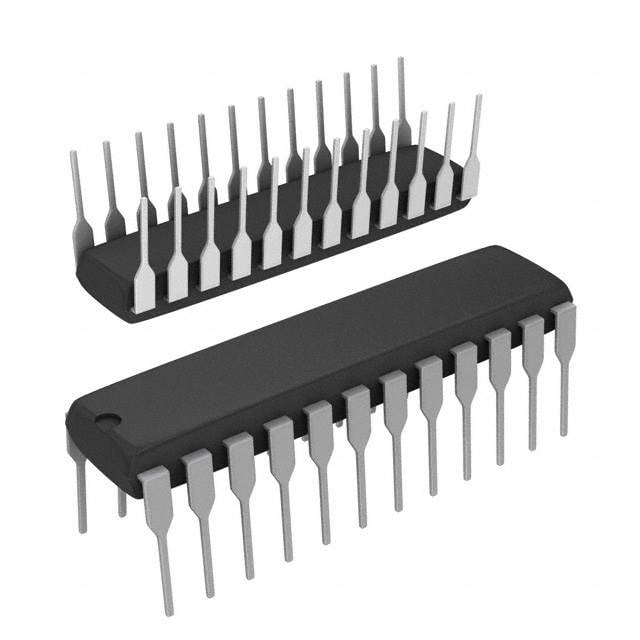

L6219 Dual H-Bridge Stepper Motor Driver IC 46V 1.4A DIP-24
L6219 dual full-bridge motor driver IC, DIP-24. Up to 46V, 1.4A per bridge. Drives one bipolar stepper motor or two DC motors.
60.00 EGP
Buy NowL6219 Dual H-Bridge Stepper Motor Driver IC 46V 1.4A DIP-24
The L6219 is a monolithic dual full-bridge (dual H-bridge) motor driver IC from STMicroelectronics, designed to drive the two windings of a bipolar stepper motor or two independent brushed DC motors. Each bridge delivers up to 1.4A from a single supply of up to 46V, and the logic inputs are TTL-compatible for direct interfacing with 5V microcontrollers and control logic. Bridge current can be regulated externally via PWM/chopper control, allowing precise phase-current setting in stepper applications. On-chip thermal shutdown protects the device against overtemperature, and the through-hole DIP-24 package makes it easy to use on breadboards, prototyping boards, and socketed repair work — a popular replacement part for classic printer, plotter, and industrial motion-control boards.
Features
- Dual independent full-bridge (H-bridge) output stages
- Output current capability up to 1.4A per bridge
- Wide operating supply voltage range — up to 46V
- Drives one bipolar stepper motor (both phases) or two DC motors
- TTL-compatible logic inputs
- Supports external chopper/PWM current regulation for precise stepper phase-current control
- Built-in thermal shutdown protection
- Standard 24-pin DIP through-hole package
Specifications
| Parameter | Value |
|---|---|
| Part Number | L6219 |
| Manufacturer | STMicroelectronics |
| IC Type / Function | Dual Full-Bridge (Dual H-Bridge) Motor Driver |

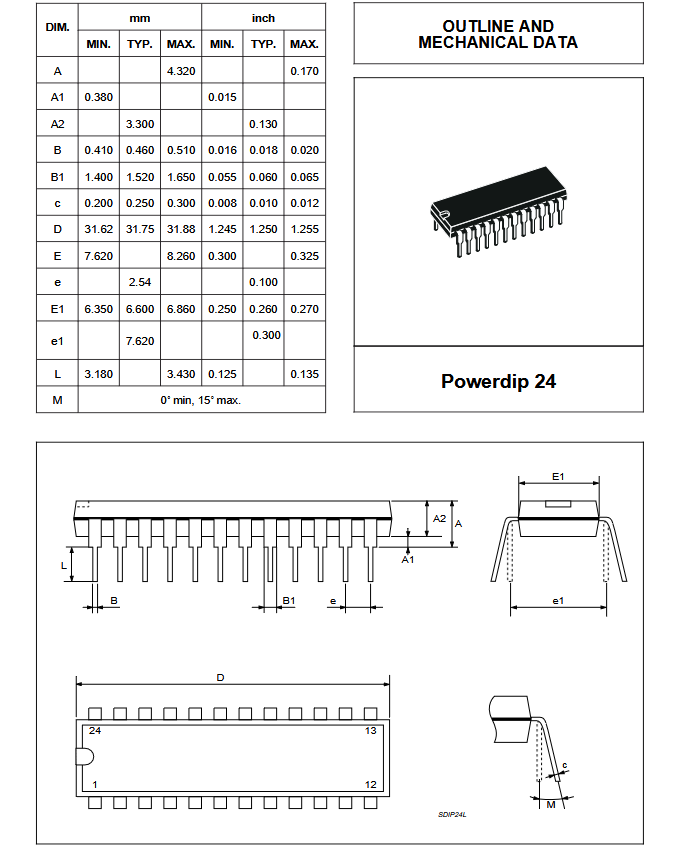

| Package | DIP-24 (Through-Hole) |
| Number of H-Bridges | 2 (4 outputs total) |
| Motor Types Supported | Bipolar Stepper Motor, Brushed DC Motors |
| Operating Supply Voltage | Up to 46 V |
| Output Current (per Bridge) | Up to 1.4 A |
| Logic Input Compatibility | TTL |
| Current Regulation | External PWM / Chopper Control (e.g., with ST L6506) |
| Built-in Protection | Thermal Shutdown |
| Mounting Type | Through-Hole |
| Number of Pins | 24 |
Applications
- Bipolar stepper motor drivers — printers, plotters, scanners, fax machines, office automation
- Dual brushed DC motor drives — robotics, small vehicles, actuators
- Industrial motion control and positioning systems
- Repair/restoration of legacy motor-drive boards
- Educational and lab projects — H-bridge fundamentals and stepper current control
Package Content
- 1 x L6219 Dual H-Bridge Stepper Motor Driver IC 46V 1.4A DIP-24
