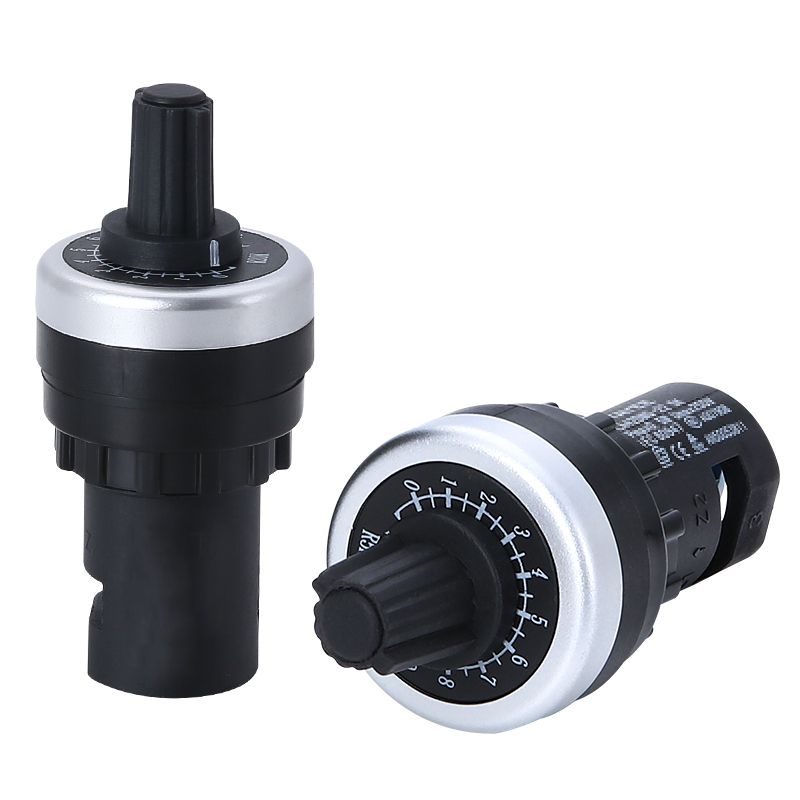

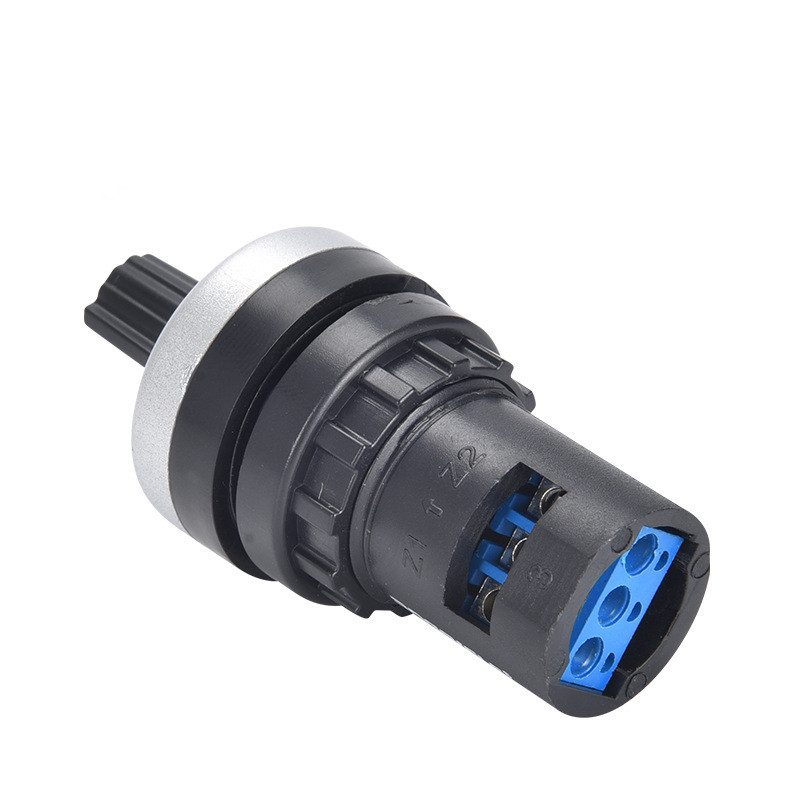

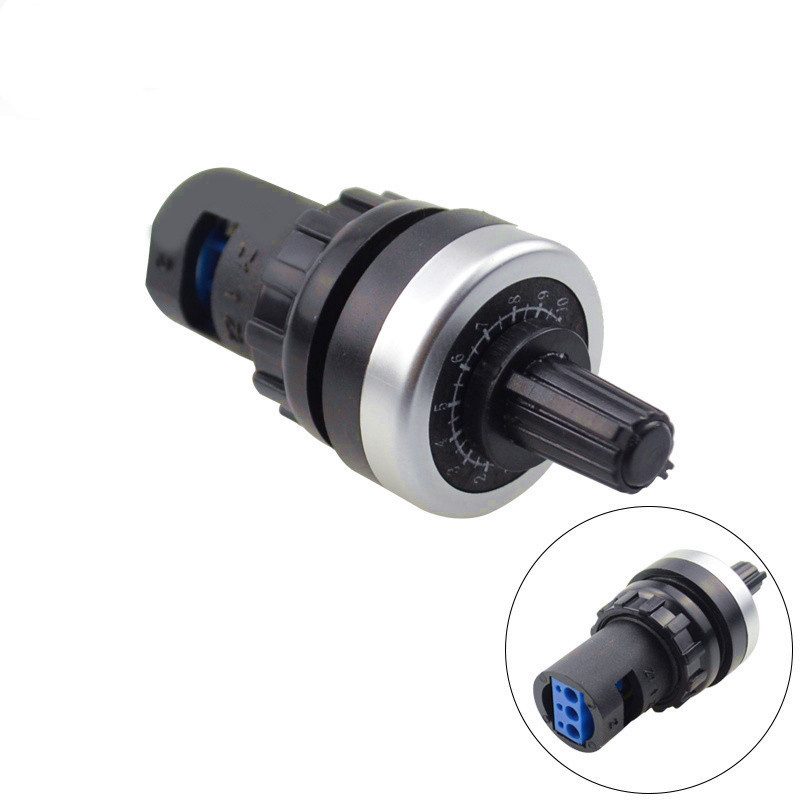

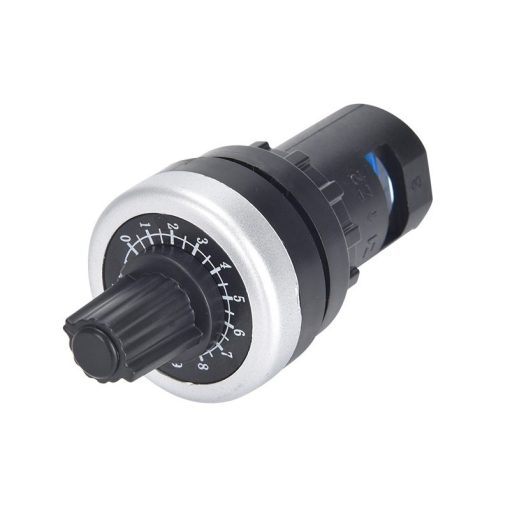

LA42DWQ Rotary Potentiometer 5kΩ 22mm

LA42DWQ Rotary Potentiometer 5kΩ 22mm

The LA42DWQ Rotary Potentiometer 5 kΩ 22 mm is a three-terminal, variable resistor designed to provide adjustable electrical resistance in analog circuits. As a component, it converts rotational position into a proportional change in resistance, offering direct control over voltage divisions. This makes it well suited for interfaces where manual adjustment of signal levels is needed. The cylindrical body with a front panel knob allows the user to finely tune values within the 5 kΩ range simply by rotating the shaft.

Mechanically, this potentiometer is built for panel mounting using a standardized 22 mm cut-out, which ensures it can be easily integrated into enclosures, dashboards, or control panels. Its single-turn design typically provides rotation up to around 300°, letting users make smooth and predictable changes over the full resistance range. The housing and terminals are engineered to withstand repeated adjustment over the life of a device.

Electrically, the LA42DWQ unit bridges a simple manual input with responsive electrical output for example, in circuits that require user-defined levels of input voltage, motor speed control settings, or feedback adjustments. Its combination of durability and ease of use makes it a staple in both industrial and hobbyist projects where variable control is essential.

Features:

• Smooth manual resistance adjustment via rotary knob.
• Industrial-grade mechanical design for panel mounting.
• Durable housing suitable for repeated use.
• Screw-terminal connections for easy wiring.
• Single-turn operation for intuitive control.
• Compatible with a wide range of analog circuits.

Specifications:

Dimensions:

Pinout:

Applications:

• Motor speed and frequency control.
• Power supply adjustment interfaces.
• Control panels and user input devices.
• Test and measurement equipment.
• Signal level adjustment in analog circuits.

Package Contents:

• 1x LA42DWQ Rotary Potentiometer 5kΩ 22mm
