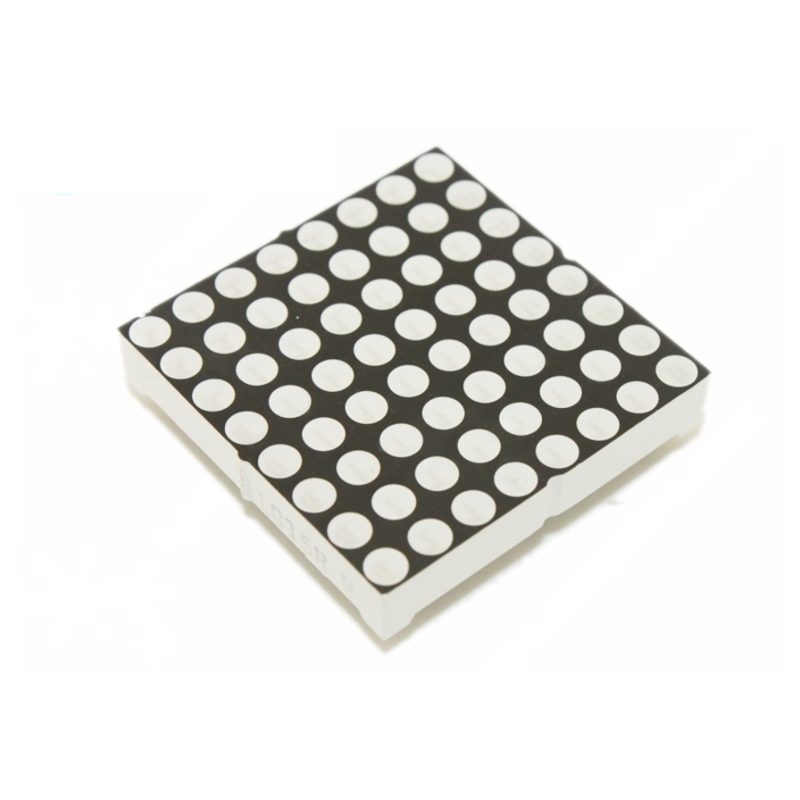

LED Dot Matrix 8×8 P-13881D bi-color Red Green Light
The LED Dot Matrix 8×8 P-13881D Bi-Color Red Green Light is a through-hole dot-matrix display consisting of an 8-column by 8-row arrangement of bi-color LED elements. Each display position can produce either red or green light, allowing the display to provide two-color visual information for status indication, character display, and graphical patterns.
Features:
- 8×8 LED dot-matrix configuration.
- Bi-color red and green LED emission.
- 64 display positions.

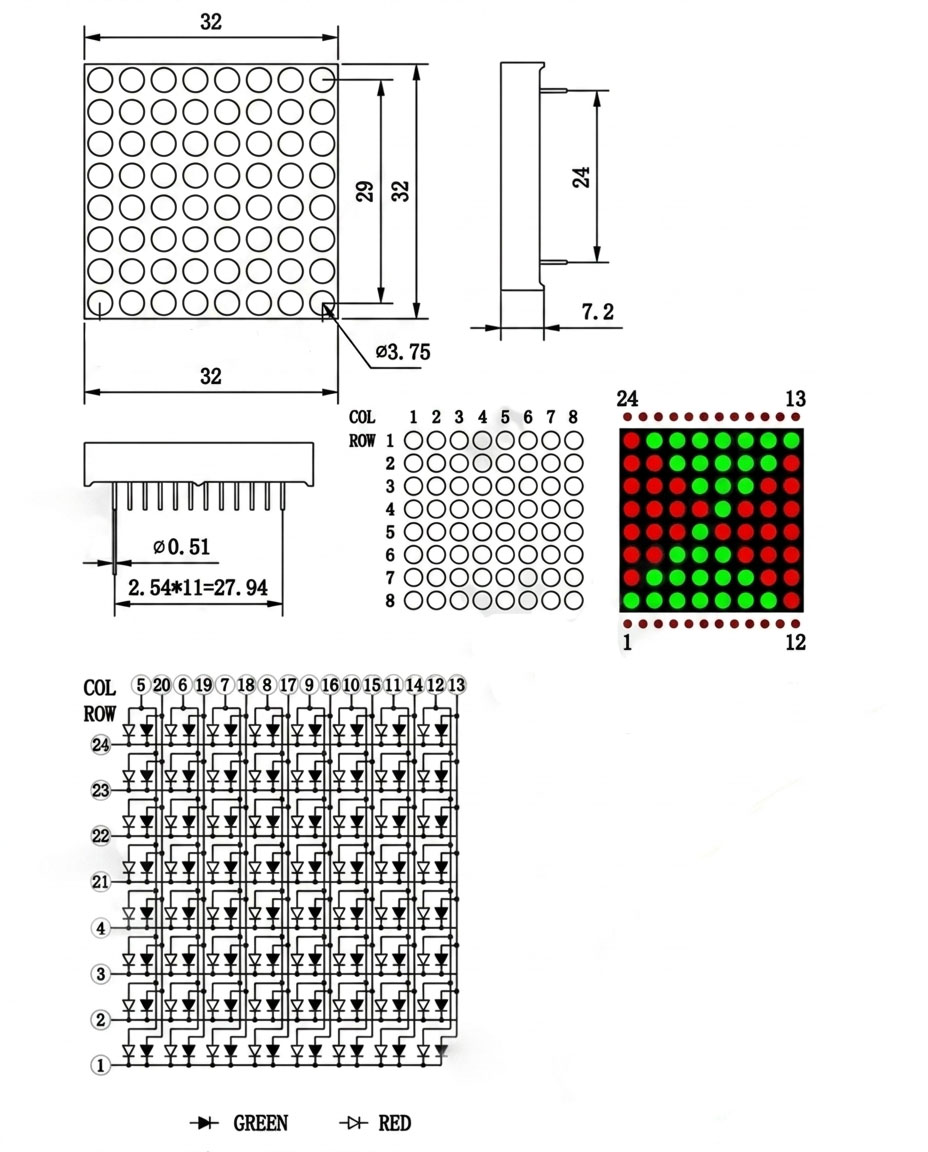

- 3.75mm LED dot diameter.
- Through-hole construction.
- Separate red and green LED control.
- Suitable for multiplexed operation.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Bi-Color LED Dot Matrix Display |
| Model | P-13881D |
| Matrix Configuration | 8×8 |
| Number of Display Positions | 64 |
| LED Color | Red + Green |
| LED Dot Diameter | 3.75mm |
| Red LED Voltage Drop | 1.8~2.4V |
| Green LED Voltage Drop | 2.2~2.8V |
| Red LED Current | 20~25mA |
| Green LED Current | 25~30mA |
| Display Type | Bi-Color LED Matrix |
| Mounting Type | Through-Hole |
| Control Method | Multiplexed |
| LED Driver Requirement | Current-Limited Driver Recommended |
Applications:
- Arduino and microcontroller projects.
- Digital character displays.
- Numeric displays.
- Status indicators.
- Warning and notification displays.
- Electronic control panels.
- Industrial equipment indicators.
- Information display systems.
- Scrolling message displays.
- Simple graphical displays.
- Educational electronics projects.
- DIY LED display projects.
- Games and interactive projects.
- Instrumentation and monitoring equipment.
Package Include:
1x LED Dot Matrix 8×8 P-13881D bi-color Red Green Light
