LM2445T Monolithic Triple 7.5ns CRT Driver TO-220-9
The LM2445 is an integrated high-voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance, wide band amplifiers that directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to −20 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The IC is packaged in an industry-standard 9-lead TO-220 molded plastic power package. See the Thermal Considerations section for more information.
Features
- Higher gain to match LM126X CMOS preamplifiers
- 0V to 3.75V input range
- Stable with 0–20 pF capacitive loads and inductive peaking networks
- Convenient TO-220 staggered lead package style
- Maintains standard LM243X Family pinout which is designed for easy PCB layout
Specifications
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) Linear Amplifiers Video Amps and Modules |
| Product Status | Obsolete |
| Applications | CRT Driver |
| Current – Supply | 30 mA |
| Mounting Type | Through Hole |

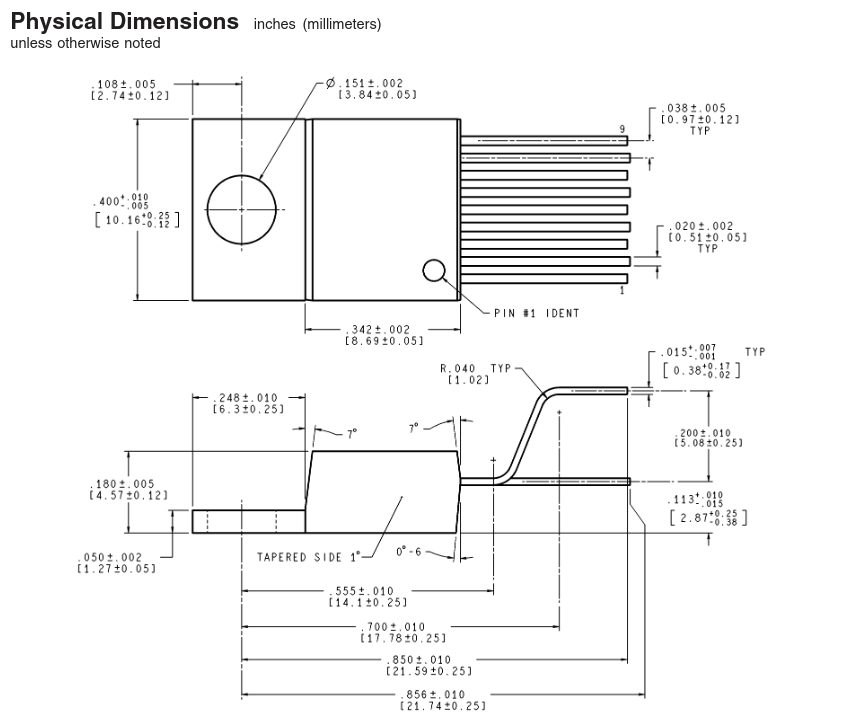

| Package | TO-220-9 |
Applications
- 1024 x 768 displays up to 85Hz refresh
- Pixel clock frequencies up to 95MHz
- Monitors using video blanking
Package Contents
- 1x LM2445T Monolithic Triple 7.5ns CRT Driver TO-220.
Documents
| Datasheet | LM2445 |
