LM6416E NMOS 4-Bit Single-Chip Microcomputer 5V IC DIP-28
The LM6416E is a member of the LM6413/6416/6417 family of NMOS single-chip microcomputers designed for consumer and embedded control applications. It integrates a high-speed 4-bit CPU core, on-chip program memory, RAM, programmable timer, clock generator, interrupt circuitry, and multiple I/O ports into a single compact package. This high level of integration reduces component count and simplifies system design for cost-sensitive products.
The device features a 65-instruction architecture with support for subroutine nesting, programmable timers, automatic page stepping, and pseudo-interrupt functions. With direct interfacing capability to 12V equipment and high-voltage tolerant I/O pins, the LM6416E is ideal for appliance controllers, consumer products, industrial control systems, and other dedicated embedded applications requiring reliable and economical processing capability.
Features
- Single-chip 4-bit microcomputer.
- High-speed 4-bit parallel processing CPU.
- Integrated program memory and RAM.
- Programmable timer.
- Multiple general-purpose I/O ports.
- Direct interface capability with 12V systems.
- High-voltage tolerant I/O pins.
- CMOS/TTL compatible inputs and outputs.
- On-chip clock generator.
- External ceramic resonator support.
- External RC oscillator support.
- Internal and external interrupt capability.
- Pseudo-interrupt function.
- Two-level subroutine nesting.
- Automatic page stepping.
- Compact single-chip architecture.
- Low component count system design.
- Suitable for consumer control applications.
- Logic replacement capability.
- Designed for low-cost embedded systems.
Specifications
| Parameter | Details |
| Product Type | NMOS 4-Bit Single-Chip Microcomputer |
| Part Number | LM6416E |
| Device Type | 4-Bit Single-Chip Microcomputer |
| Technology | NMOS |
| CPU Architecture | 4-Bit NMOS |
| Program ROM | 1K × 8Bytes |
| Data RAM | 64 × 4Bits |
| Instruction Set | 65 Instructions |
| Number of I/O Pins | 21 |
| Interrupts | 1 Internal, 1 External Pseudo-Interrupt |
| Timer Channels | 1 |
| Cycle Time | 4.0µs |
| Supply Voltage | 4.5V~6.5V |
| Typical Operating Voltage | 5V |
| I/O Withstand Voltage | 15V |
| Output Drive Current | 20mA |
| Serial I/O | Not Available |
| Oscillator Type | RC Oscillator |
| Package Type | DIP-28S |
| Mounting Type | Through Hole |

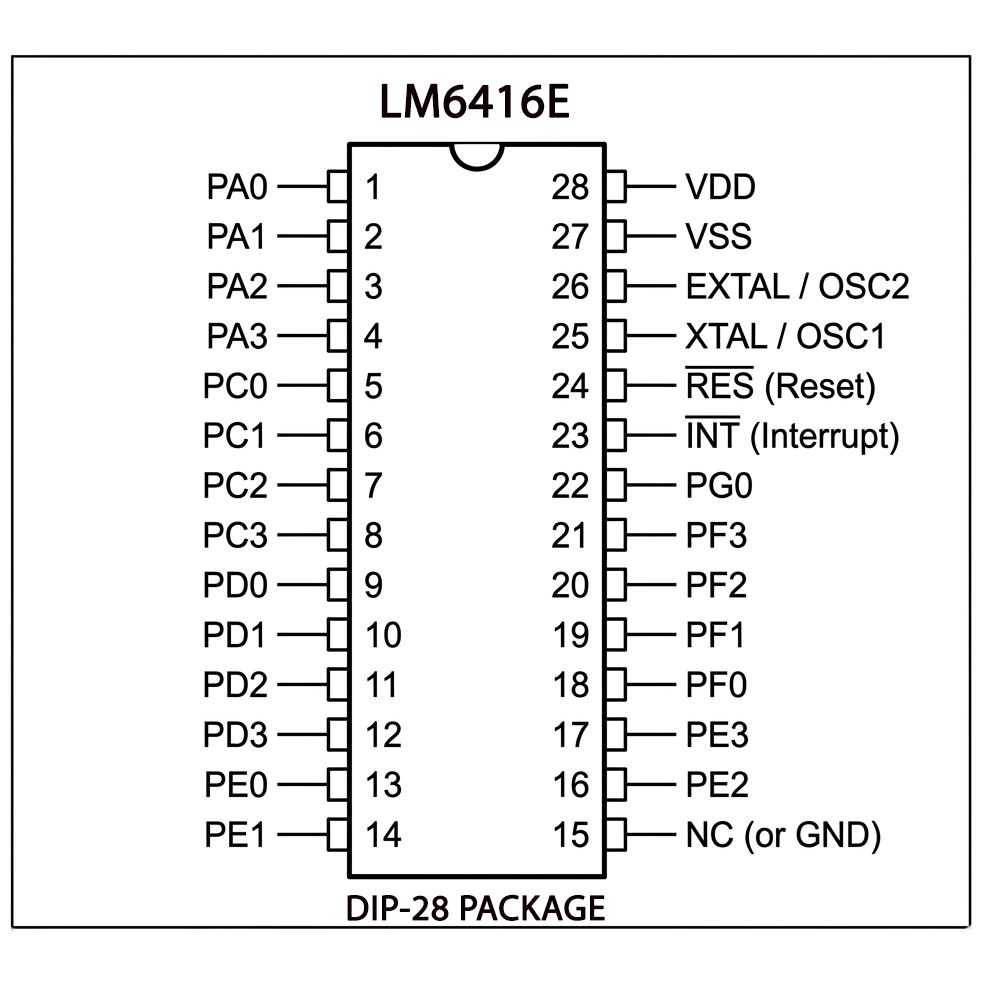

Pin Configuration
| Pin Number | Pin Name | Function / Description |
|---|---|---|
| 1 | PA0 | Port A bit 0 general-purpose I/O. |
| 2 | PA1 | Port A bit 1 general-purpose I/O. |
| 3 | PA2 | Port A bit 2 general-purpose I/O. |
| 4 | PA3 | Port A bit 3 general-purpose I/O. |
| 5 | PC0 | Port C bit 0 general-purpose I/O. |
| 6 | PC1 | Port C bit 1 general-purpose I/O. |
| 7 | PC2 | Port C bit 2 general-purpose I/O. |
| 8 | PC3 | Port C bit 3 general-purpose I/O. |
| 9 | PD0 | Port D bit 0 general-purpose I/O. |
| 10 | PD1 | Port D bit 1 general-purpose I/O. |
| 11 | PD2 | Port D bit 2 general-purpose I/O. |
| 12 | PD3 | Port D bit 3 general-purpose I/O. |
| 13 | PE0 | Port E bit 0 general-purpose I/O. |
| 14 | PE1 | Port E bit 1 general-purpose I/O. |
| 15 | NC | No Connection |
| 16 | PE2 | Port E bit 2 general-purpose I/O. |
| 17 | PE3 | Port E bit 3 general-purpose I/O. |
| 18 | PF0 | Port F bit 0 general-purpose I/O. |
| 19 | PF1 | Port F bit 1 general-purpose I/O. |
| 20 | PF2 | Port F bit 2 general-purpose I/O. |
| 21 | PF3 | Port F bit 3 general-purpose I/O. |
| 22 | PG0 | Port G bit 0 general-purpose I/O. |
| 23 | INT | External interrupt input. |
| 24 | RES | Reset input. |
| 25 | XTAL / OSC1 | Crystal oscillator input. |
| 26 | EXTAL / OSC2 | Crystal oscillator output or external clock input. |
| 27 | VSS | Ground (0V). |
| 28 | VDD | +5V power supply. |

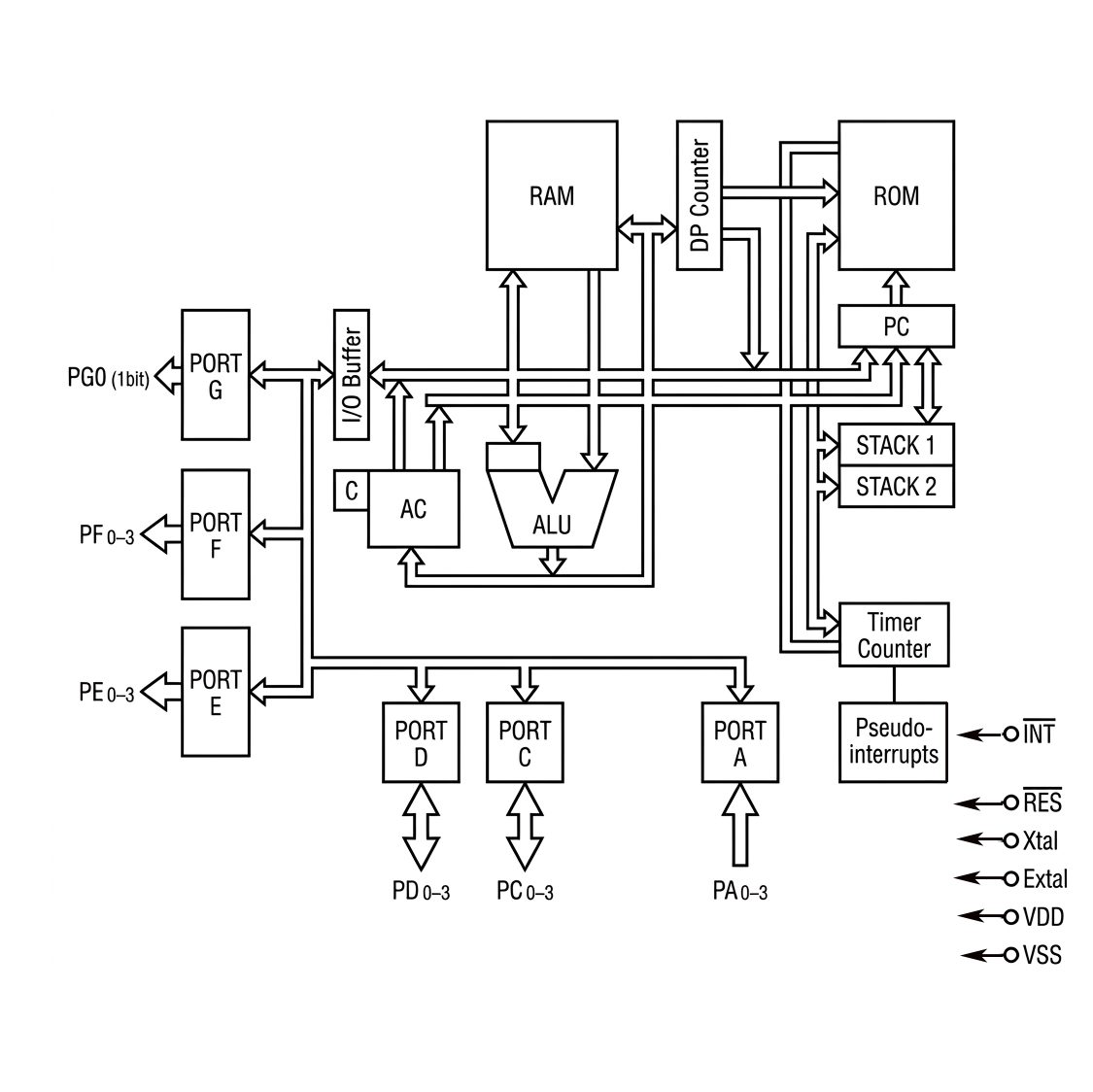

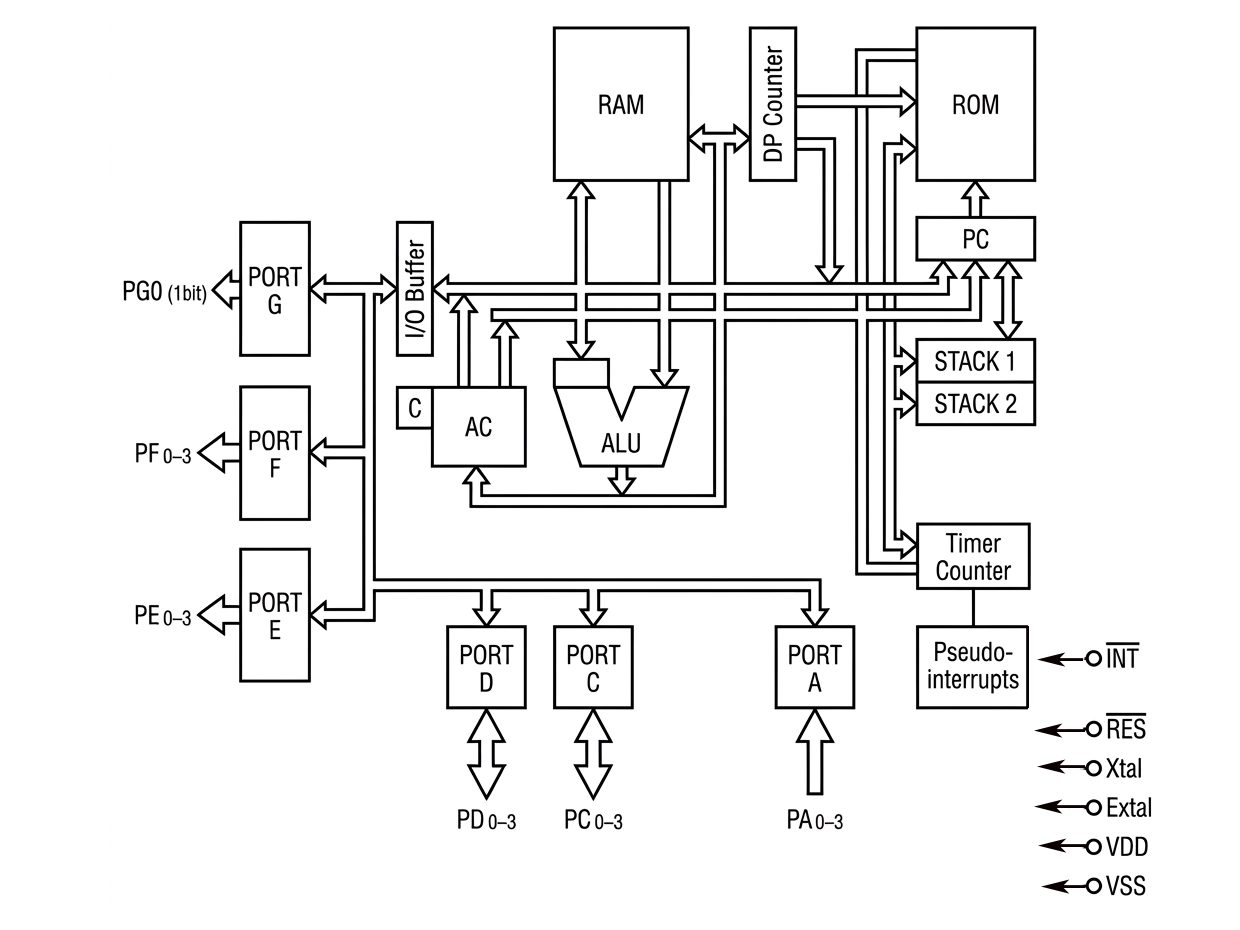

Connection Block Diagram
Applications
- Consumer electronic control systems.
- Home appliance controllers.
- Electronic timer circuits.
- Digital control applications.
- Industrial control equipment.
- Embedded control systems.
- Small automation projects.
- Keyboard and switch interface circuits.
- LED display control systems.
- Digital counter applications.
- Programmable logic control circuits.
- Security and alarm control systems.
- Measurement and monitoring equipment.
- Educational microcontroller development.
- Legacy embedded system maintenance.
- OEM electronic products using 4-bit microcontrollers.
