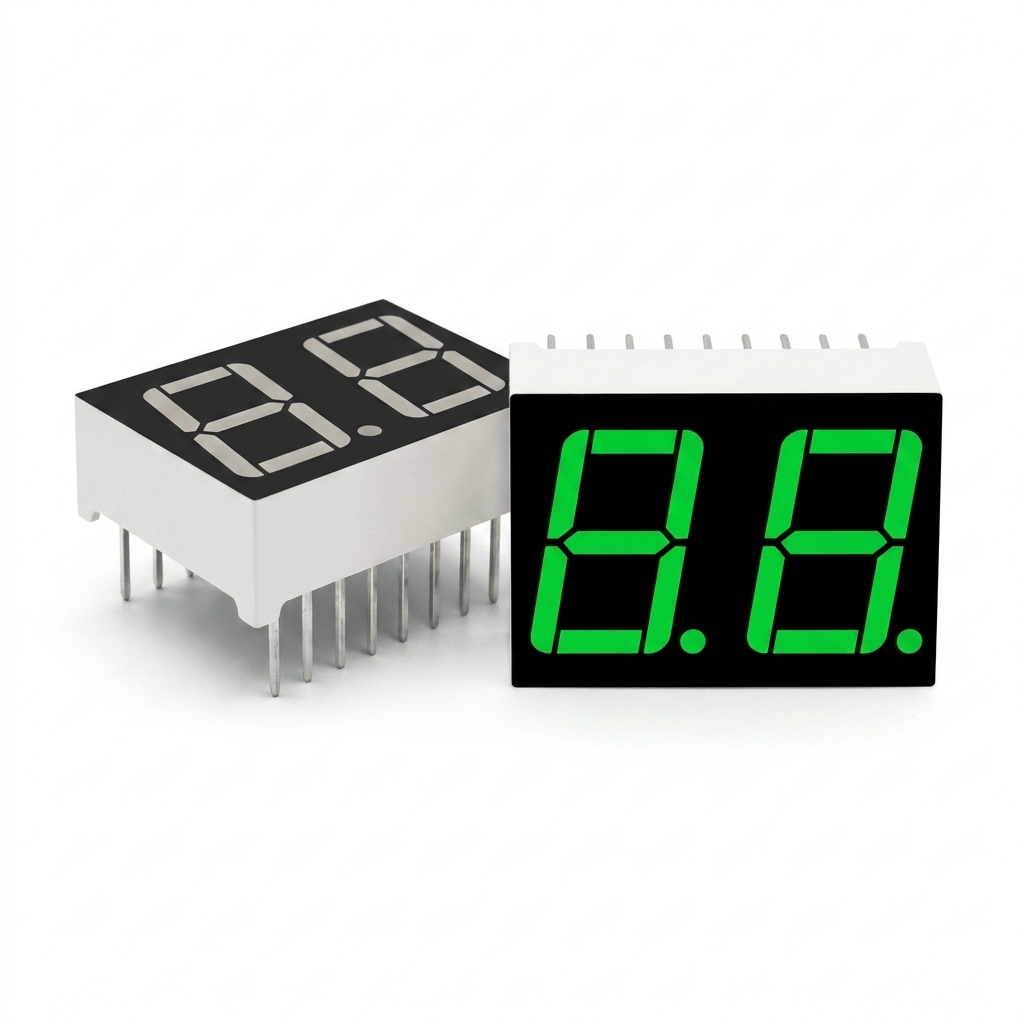

MAN59209 Green 7-Segment 2 Digit Common Anode
The MAN59209- is a 0.56-inch (14.2mm) dual-digit high efficiency green 7-segment LED display. This device features a distinctive gray face with green segments for excellent contrast and visibility in various lighting conditions. Designed with a common anode configuration and no decimal point, this display delivers high brightness and bold segments that are highly visible, making it an ideal choice for engineers and hobbyists working on digital clocks, counters, timers, instrumentation panels, and consumer electronics projects.
Features:
- 0.56 inch (14.2mm) digit height for clear visibility.
- Dual-digit display for two-digit numeric readout.
- High efficiency green illumination with excellent brightness.
- Common anode configuration for flexible circuit design.
- Gray face with green segments for high contrast.
Specifications:
| Parameter | Value |
|---|---|
| Display Type | 7-Segment LED Display |
| Digit Count | 2 Digit |
| Digit Height | 0.56″ (14.2mm) |
| Color | High Efficiency Green |
| Face Color | Gray |
| Segment Color | Green |
| Configuration | Common Anode |
| Decimal Point | No DP |
| Continuous Forward Current (IF) | 30mA per segment |
| Peak Forward Current (IFP) | 90mA per die (at f=10.0KHz, duty factor=1/10) |
| Forward Voltage (VF) | 2.1V (Typ.) / 2.8V (Max.) at IF=20mA |
| Power Dissipation (PD) | 70mW per segment |
| Derating | 0.33mW/°C from 25°C |
| Luminous Intensity (Iv) | 800μcd (Min.) / 2200μcd (Typ.) at IF=20mA |
| Peak Wavelength | 570nm |
| Spectral Line Half-Width | 30nm |
| Reverse Voltage Per Die | 5V |
| Reverse Breakdown Voltage (VR) | 5V at IR=100μA |
| Operating Temperature Range | -25°C to +85°C |
| Storage Temperature Range | -25°C to +85°C |
| Lead Soldering Time | 3 seconds at 260°C (at 1/16 inch from bottom of lamp) |
| Package Type | PCB Mount DIP-18 |
| Pin Count | 18 |
| Mounting Style | Through-Hole |

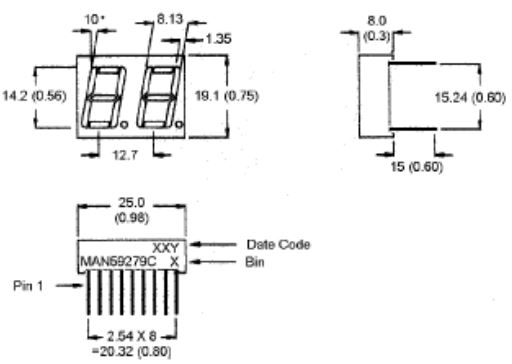

Dimensions and Pin Configuration:
Applications:
- Digital readout displays.
- Instrument panels.
- Digital clock and timer displays.
- Electronic counter readouts.
- Consumer electronics numeric indicators.
- Industrial control system displays.
- Test and measurement equipment.
- Appliance control panel displays.
Package Include:
1x MAN59209 Green 7-Segment 2 Digit Common Anode.
