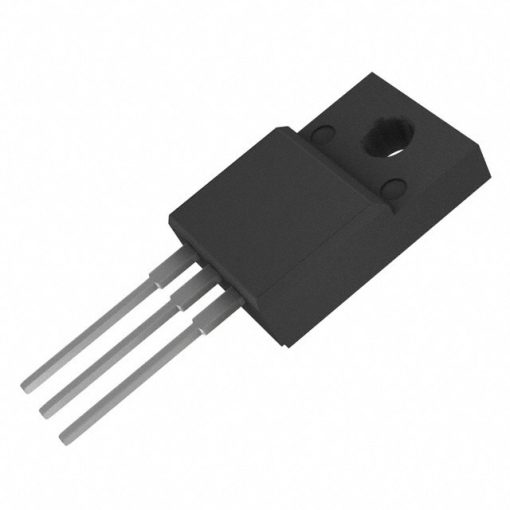

MBRF2080CTP Schottky Diode 80V 10A ITO-220AB-3
The MBRF2080CTP is a high-performance Schottky rectifier designed for efficient power management. Encapsulated in an ITO-220AB package, this Pb-free device offers low forward voltage drop, high frequency operation, and enhanced reliability, making it ideal for various power supply and conversion applications.
Features
- 150°C TJ operation
- Center tap configuration
- Low forward voltage drop
- High frequency operation
- Guard ring for enhanced ruggedness and long-term reliability
- Pb-free device
Specifications
| Characteristics | Symbol | Condition | Max. | Units |
|---|---|---|---|---|
| Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
– | 80 | V |
| Average Rectified Forward Current | IF(AV) | 50% duty cycle @ Tc=116°C, rectangular waveform | 10 (Per Leg) 20 (Per Device) |
A |
| Peak One Cycle Non-Repetitive Surge Current (Per Leg) | IFSM | 8.3ms, Half Sine pulse | 180 | A |
Electrical Characteristics
| Characteristics | Symbol | Condition | Typ. | Max. | Units |
|---|---|---|---|---|---|
| Forward Voltage Drop (Per Leg)* | VF | @ 10A, Pulse, TJ = 25°C | 0.68 | 0.75 | V |
| Reverse Current (Per Leg)* | IR | @ VR = rated VR, TJ = 25°C | 0.05 | 1.0 | mA |
| Junction Capacitance (Per Leg) | CT | @ VR = 5V, TC = 25°C, fSIG = 1MHz | 180 | 500 | pF |
| Series Inductance (Per Leg) | LS | Measured lead to lead 5 mm from package body | 8.0 | – | nH |
| Voltage Rate of Change | dv/dt | – | – | 10,000 | V/µs |
| RSM Isolation Voltage | VISO | Clip mounting, the epoxy body away from the heatsink edge by more than 0.110″ along the lead direction (t = 1.0 second, R.H. <= 30%, TA = 25°C) | – | 4500 | V |
Thermal-Mechanical Specifications
| Characteristics | Symbol | Condition | Specification | Units |
|---|---|---|---|---|
| Junction Temperature | TJ | – | -55 to +150 | °C |
| Storage Temperature | Tstg | – | -55 to +150 | °C |
| Typical Thermal Resistance Junction to Case | RθJC | DC operation | 2.0 | °C/W |
| Approximate Weight | wt | – | 2 | g |
| Case Style | – | – | ITO-220AB | – |
Applications
- Switching power supply
- Converters
- Free-wheeling diodes
- Reverse battery protection
