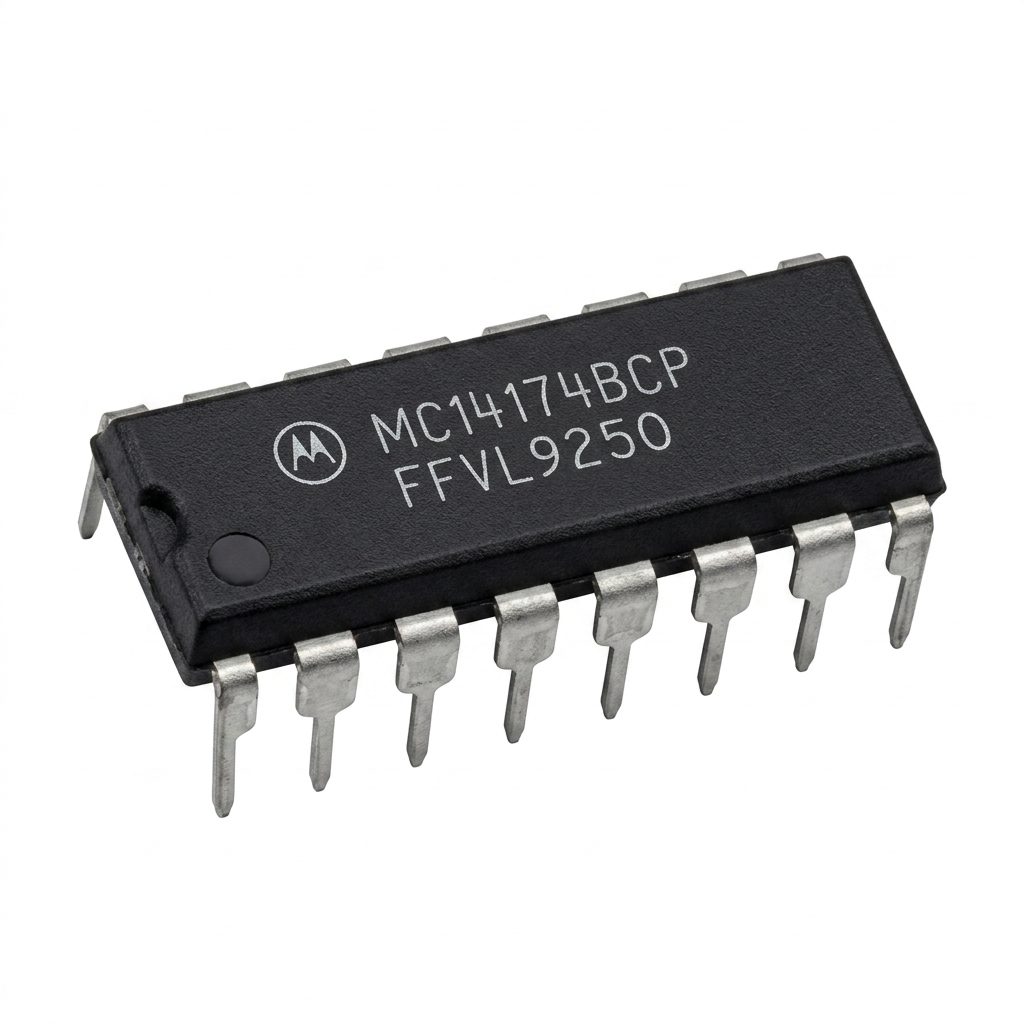

MC14174BCP HEX D-Type Flip Flop IC 5V 5µA DIP-16
MC14174BCP HEX D-Type Flip Flop IC 5V 5µA DIP-16 that contains six independent D flip-flops integrated into a single DIP-16 package. All six flip-flops share a common clock input and an asynchronous active-low reset input. Data present at each D input is transferred to its corresponding Q output on the positive-going edge of the clock signal, making the device ideal for sequential logic and digital storage applications.
Built using complementary MOS technology, the MC14174BCP offers low power consumption, high noise immunity, and a wide operating voltage range. The device includes buffered inputs and outputs along with input protection circuitry for improved reliability. It is functionally equivalent to the classic 74174 TTL device while providing the advantages of CMOS operation, making it suitable for industrial, educational, embedded, and digital control systems.
Features
- Six independent D-type flip-flops in one package.
- Common clock input for all flip-flops.
- Asynchronous active-low reset.
- Positive-edge-triggered operation.
- Static CMOS design.
- Buffered inputs and outputs.
- High noise immunity.
- Low power consumption.
- Diode protection on all inputs.
- Wide operating voltage range.
- Direct replacement for many TTL flip-flop designs.
- Suitable for digital storage and synchronization circuits.
- CMOS construction for reliable operation.
- Functional equivalent to 74174 logic device.
Specifications
| Parameter | Details |
|---|---|
| Device Type | Hex D-Type Flip-Flop |
| Number of Flip-Flops | 6 |
| Logic Family | CMOS 4000 Series |
| Trigger Type | Positive Edge Triggered |
| Reset Type | Asynchronous Active-Low |
| Supply Voltage Range | 3V to 18V |
| Maximum Supply Voltage | 18V |
| Package Type | PDIP-16 |
| Operating Temperature Range | -55°C to +125°C |
| Power Dissipation | 500mW |
| Input Protection | Diode Protected Inputs |
| Input Capacitance | 5pF |
| Quiescent Current @ 5V | 5µA |
| Quiescent Current @ 10V | 10µA |
| Quiescent Current @ 15V | 20µA |
| Maximum Output Current per Pin | ±10mA |
| TTL Compatibility | Functional Equivalent to 74174 |

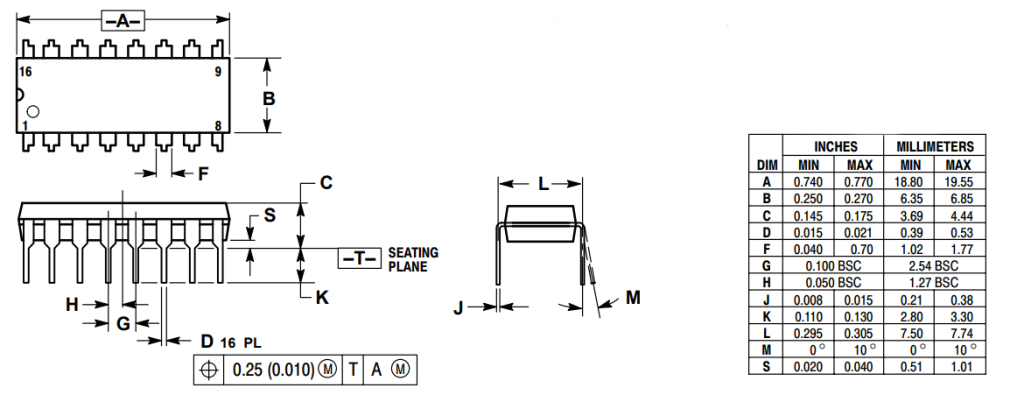

Dimensions

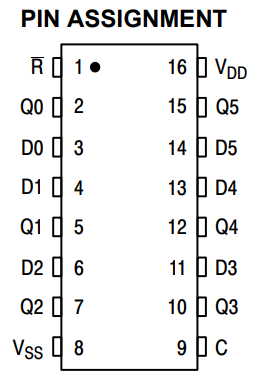

Pin Configuration
| Pin Number | Signal Name |
|---|---|
| 1 | R |
| 2 | Q0 |
| 3 | D0 |
| 4 | D1 |
| 5 | Q1 |
| 6 | D2 |
| 7 | Q2 |
| 8 | VSS |
| 9 | C |
| 10 | Q3 |
| 11 | D3 |
| 12 | Q4 |
| 13 | D4 |
| 14 | D5 |
| 15 | Q5 |
| 16 | VDD |
Applications
- Digital data storage.
- Shift registers.
- Counters and timers.
- Digital synchronization circuits.
- Microprocessor interfacing.
- Industrial control systems.
- State machines.
- Data buffering.
- Digital communication systems.
- Logic sequencing circuits.
- Embedded control electronics.
- Educational and laboratory projects.
- Signal timing and synchronization circuits.
Package Contents
- 1 x MC14174BCP HEX D-Type Flip Flop IC 5V 5µA DIP-16
