TC4501BP Toshiba Dual 4-Input Nand Gate 18V IC 16-DIP
The TC4501BP Toshiba is a combined gate which contains dual 4-input NAND gate and 2-input NOR/OR gate in one package.
20.00 EGP
In stockSKU 3496300108183
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
TC4501BP Toshiba Dual 4-Input Nand Gate 18V IC 16-DIP
The TC4501BP is part of the standard 4000-series CMOS logic family. It integrates two 4-input NAND gates on a single monolithic chip. Built with Complementary Metal-Oxide-Semiconductor (CMOS) technology, it is characterized by very low power consumption, a high noise margin, and a wide operating voltage range.
These gates perform the logical NAND function, where the output is LOW only when all four inputs are HIGH; otherwise, the output is HIGH.
This device is commonly used as a building block for constructing complex logic functions, such as decoders, multiplexers, and control logic in a wide array of electronic equipment, from industrial controls to consumer electronics. Its DIP package makes it suitable for through-hole PCB assembly and prototyping on breadboards.
Features:
- Contains two 4-input NAND gates.
- CMOS logic technology.
- Wide supply voltage range.
- Low power consumption.
- High noise immunity.
- Standard DIP-16 through-hole package.
- Ideal for breadboard prototyping and embedded logic circuits.
- Compatible with a variety of digital logic levels.
Specifications:
| Parameter | Specification |
|---|---|
| Function: | Dual 4-Input NAND Gate |
| Logic Family: | CMOS |
| Number of Gates: | 2 |
| Inputs per Gate: | 4 |
| Supply Voltage (Vcc): | 3V Min – 18V Max |
| Operating Temperature: | –40 °C to +85 °C |
| Output Drive: | Moderate CMOS output drive |
| Quiescent Current: | Very low |
| Propagation Delay: | 10 nS |
| Package: | DIP-16 |
| Mounting: | Through-Hole |

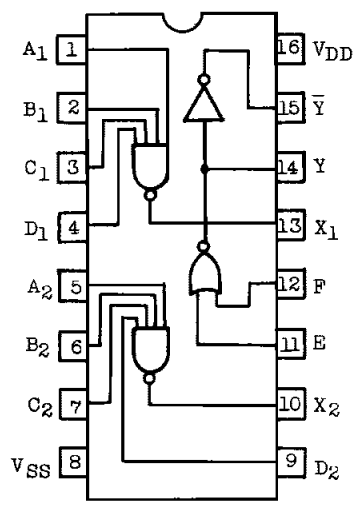

Pinout:
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | A1 | Input A – Gate 1 |
| 2 | B1 | Input B – Gate 1 |
| 3 | C1 | Input C – Gate 1 |
| 4 | D1 | Input D – Gate 1 |
| 5 | A2 | Input A – Gate 2 |
| 6 | B2 | Input B – Gate 2 |
| 7 | C2 | Input C – Gate 2 |
| 8 | VSS | Ground (0V) |
| 9 | D2 | Input D – Gate 2 |
| 10 | X2 | Control / Enable – Gate 2 |
| 11 | E | Inverter Input |
| 12 | F | Inverter Output |
| 13 | X1 | Control / Enable – Gate 1 |
| 14 | Y | Non-Inverted Output |
| 15 | Ȳ | Inverted Output |
| 16 | VDD | Positive Supply (3V – 18V) |
Applications:
- Microcontroller logic expansion.
- Digital signal processing.
- Clock and timing control.
- Data gating and buffering.
- Industrial automation systems.
- Embedded electronics.
- Alarm and security systems.
- Robotics and DIY projects.
Packages:
- 1x TC4501BP Toshiba Dual 4-Input Nand Gate 18V IC 16-DIP.
