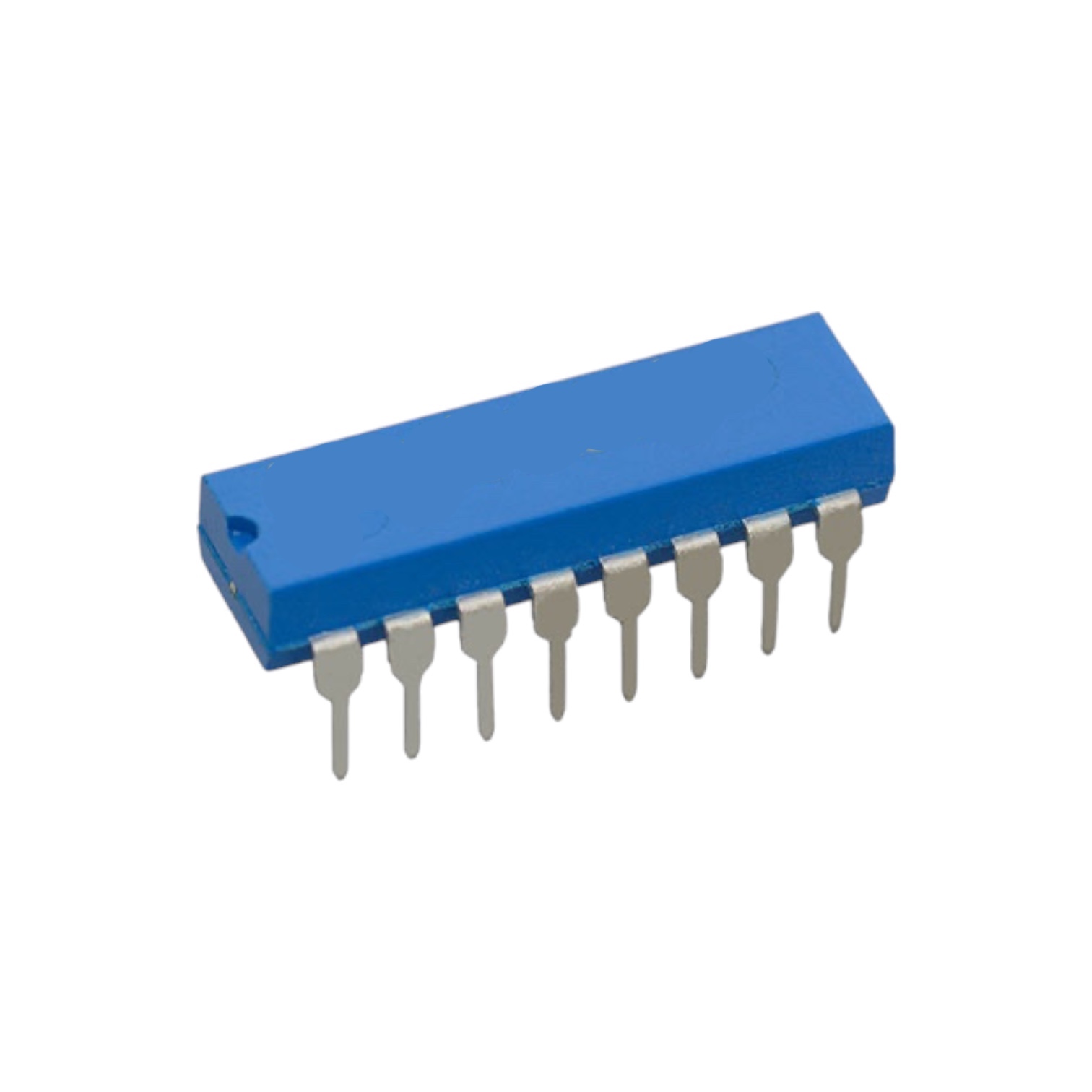

MDP16-1-121 BUSSED RESISTOR NETWORKS 120Ω DIP-16
The MDP16-1-121 is a bussed resistor network array featuring multiple 120Ω resistors integrated into a compact DIP-16 through-hole package. This resistor network is designed to reduce PCB space usage, simplify circuit assembly, and minimize the number of discrete components required in digital and electronic systems. The bussed configuration connects one terminal of all resistor elements to a common pin, making the device ideal for pull-up, pull-down, LED current limiting, and signal termination applications.
Features:
- Bussed schematic with 15 resistors and one common pin.
- 0.160″ (4.06mm) maximum seated height for compact designs.
- Rugged molded case construction for durability.
- Thick film resistive elements for stable performance.
- Low temperature coefficient of ±100ppm/°C.
- Excellent TC tracking of ±50ppm/°C between resistors.
- Reduces total assembly costs with integrated network design.
- Compatible with automatic inserting equipment.
- Wide resistance range availability from 10Ω to 2.2MΩ.
- Uniform performance characteristics across all elements.
Specifications:
| Type | Thick Film Resistor Network |
| Schematic | Bussed (01) |
| Number of Resistors | 15 |
| Resistance Value | 120Ω |
| Tolerance | ±2% (Standard), ±1% and ±5% available |
| Power Rating per Element | 0.125W at +70°C |
| Package Power Rating (Max at +70°C) | 1.92W |
| Temperature Coefficient (TCR) | ±100ppm/°C (-55°C to +125°C) |
| TC Tracking | ±50ppm/°C (-55°C to +125°C) |
| Maximum Operating Voltage | 100VDC |
| Voltage Coefficient of Resistance | <50ppm/°C/V typical |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Insulation Resistance | >10,000MΩ minimum |
| Dielectric Withstanding Voltage | 200VRMS |
| Package Type | DIP-16 (Dual-In-Line) |
| Pin Count | 16 |
| Seated Height | 0.160″ (4.06mm) maximum |
| Weight | 1.5g |
| Body Material | Molded epoxy |
| Terminals | Solder plated leads |
| Mounting Style | Through-Hole |
Applications:
- MOS/ROM pull-up and pull-down networks.
- Open collector pull-up circuits.
- Wired OR pull-up configurations.
- Power driven pull-up applications.
- TTL input pull-down networks.
- Digital pulse squaring circuits.
- TTL unused gate pull-up configurations.
- High speed parallel pull-up applications.
Package Include:
1x MDP16-1-121 BUSSED RESISTOR NETWORKS 120Ω DIP-16
