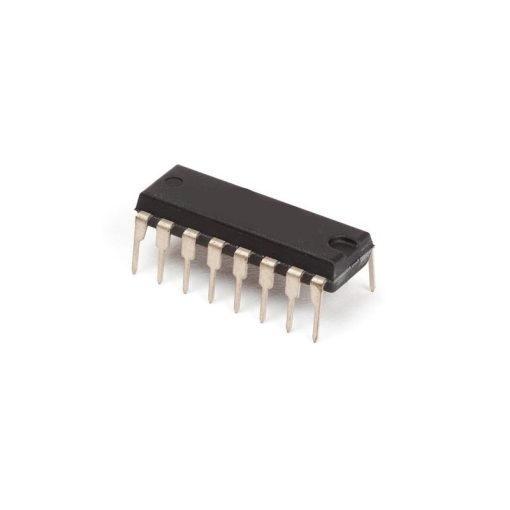

10131N FLIP-FLOP 16 PIN DIP IC
The 10131N High-Speed D-Type Flip-Flop IC DIP-16 is a precision emitter-coupled logic device designed for high-frequency digital systems requiring fast and reliable data storage. This IC integrates a master-slave D-type flip-flop with complementary outputs, enabling accurate data capture on the active clock transition. It is optimized for use in high-speed logic circuits where timing accuracy and signal integrity are critical.
Features:
- Dual independent D-type master-slave flip-flops for versatile clocking.
- Asynchronous set and reset inputs for direct state control.
- High-speed operation with 3ns typical propagation delay.
- Maximum clock frequency of 160MHz at 25°C.
- Compact DIP-16 package for easy integration.
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage (VEE) | -5.2VDC |
| Quiescent Current (-IEE) | 45mA |
| Propagation Delay (CP to Q) | 3ns |
| Maximum Clock Frequency | 160MHz |
| High-Level Input Voltage | -810mV |
| Low-Level Input Voltage | -1850mV |
| High-Level Output Voltage | -960mV |
| Low-Level Output Voltage | -1850mV |
| Setup Time (D to CP) | 2.5ns |
| Hold Time (D to CP) | 1.5ns |
| Operating Temperature | -30 to 85°C |

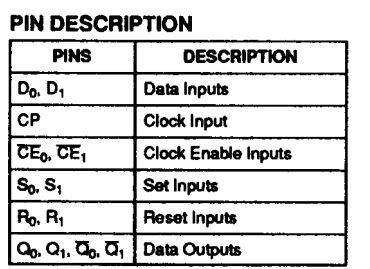

Pin Configuration:
Applications:
- High-speed counters and frequency dividers in telecommunications.
- Shift registers and state machines in computing systems.
- Data synchronization in instrumentation equipment.
- Legacy ECL system repairs and retrofits.
- Educational projects demonstrating flip-flop operations.
Package Include:
1x 10131N FLIP-FLOP IC DIP-16
