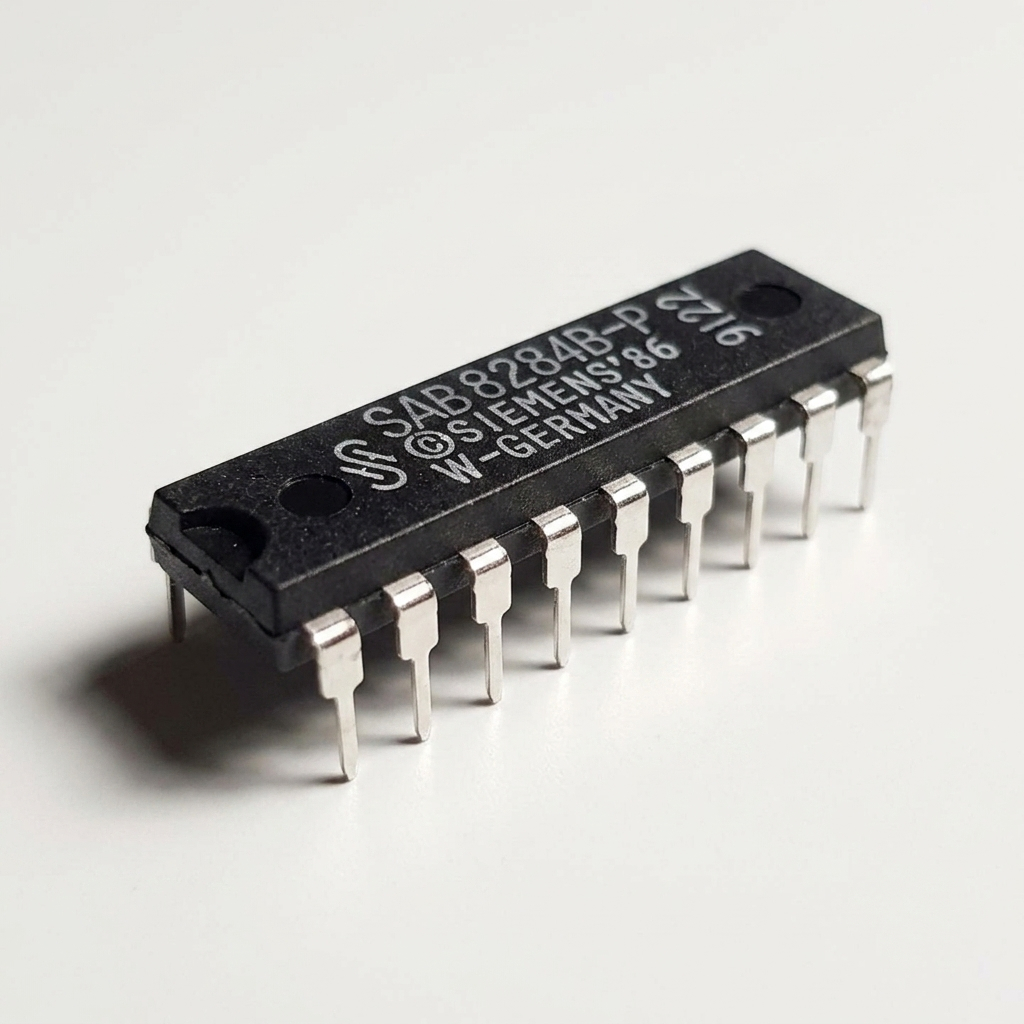

SIEMENS SAB8284B-P Clock Generator and Driver for SAB 8086/8088 Processors +5V 110mA DIP-18
The SAB 8284B-P is a single-chip bipolar clock generator and driver designed for Siemens SAB 8086 and SAB 8088 processors and peripherals. Fabricated using Siemens’ fast bipolar ASBC (Advanced Standard Buried Collector) process, it integrates a crystal-controlled oscillator, divide-by-three counter, system reset logic with hysteresis, and bus READY synchronization logic. It uses 30% less power supply current than standard SAB 8284A devices.
Features
- Full Compatibility
- Low Power Consumption
- High Clock Speed Support
- Flexible Clock Sources
- Multiple Clock Outputs
- Integrated Reset Logic
- Advanced READY Logic
- Multi-Chip Clock Synchronization

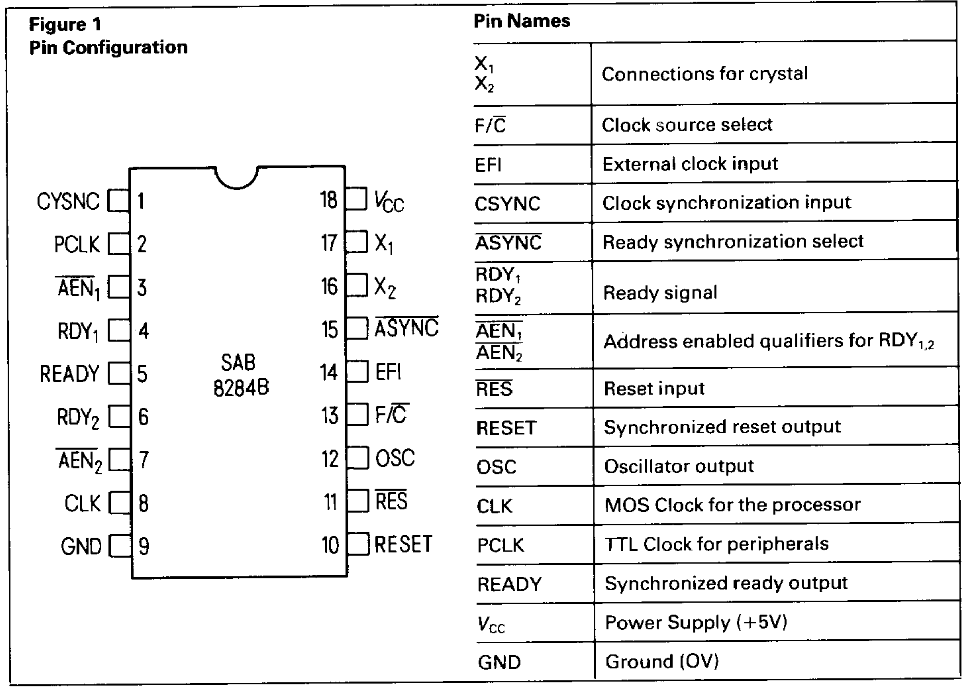

Specifications
| Parameter | Specification / Value | Conditions / Details |
|---|---|---|
| Power Supply Voltage (VCC) | +5V (±10%) | Single +5V power supply |
| Power Supply Current (ICC) | 110 mA (Max) | All outputs open |
| Power Dissipation | 1.0 W (Max) | Absolute maximum rating |
| Clock Frequency Range | Up to 8 MHz | SAB 8284B-P model |
| Input LOW Voltage (VIL) | 0.8 V (Max) | Standard logic input |
| Input HIGH Voltage (VIH) | 2.0 V (Min) | Standard logic input |
| Reset Input HIGH Voltage (VIHR) | 2.6 V (Min) | Schmitt trigger input |
| RES Input Hysteresis | 0.25 V (Min) | VIHR – VILR |
| Output LOW Voltage (VOL) | 0.45 V (Max) | I = 5 mA |
| Output HIGH Voltage (VOH) | 4.0 V (CLK) / 2.4 V (Other) | I = -1 mA |
| Operating Temperature (TA) | 0°C to +70°C | Temperature under bias |
| Storage Temperature | -65°C to +150°C | Storage conditions |
Applications
- System Clock Generation
- Bus & READY Synchronization
- Peripheral Synchronization
Package Content
- 1 x SIEMENS SAB8284B-P Clock Generator and Driver for SAB 8086/8088 Processors +5V 110mA DIP-18
