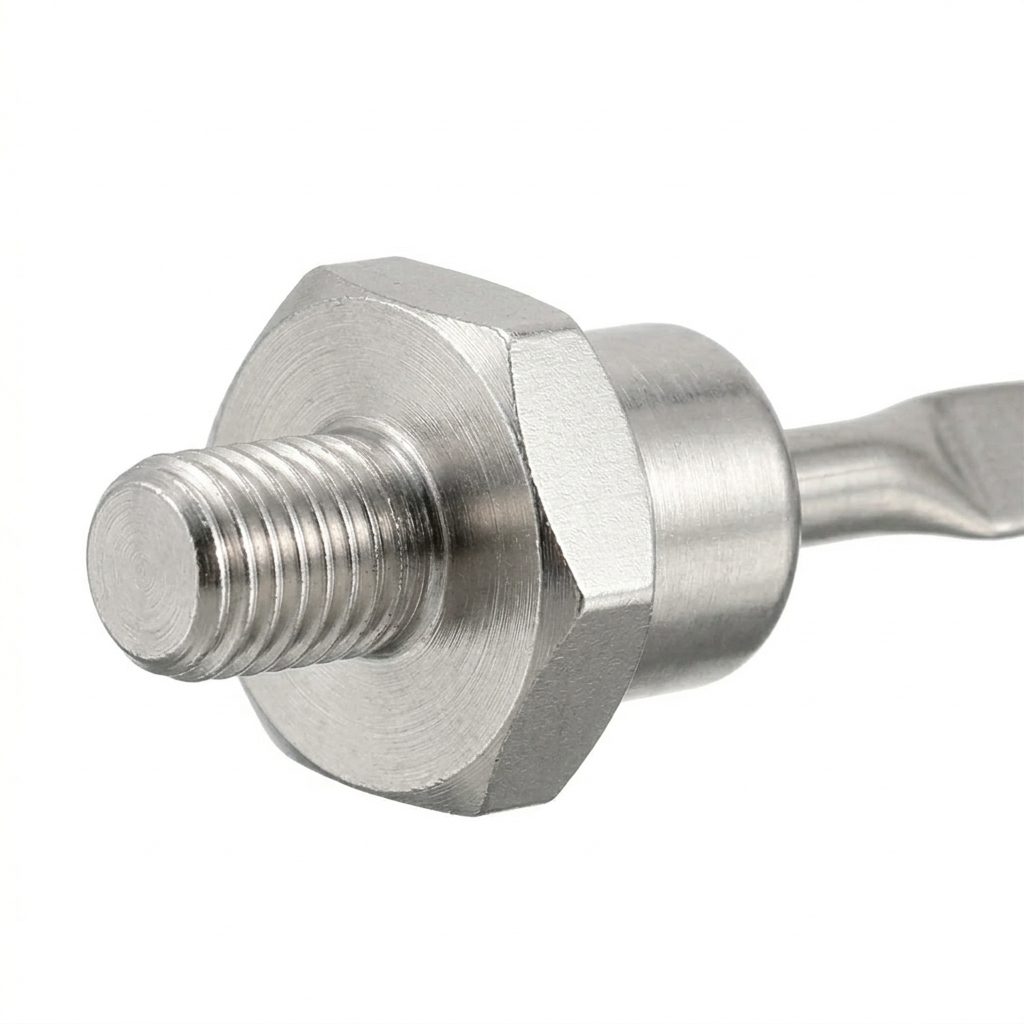

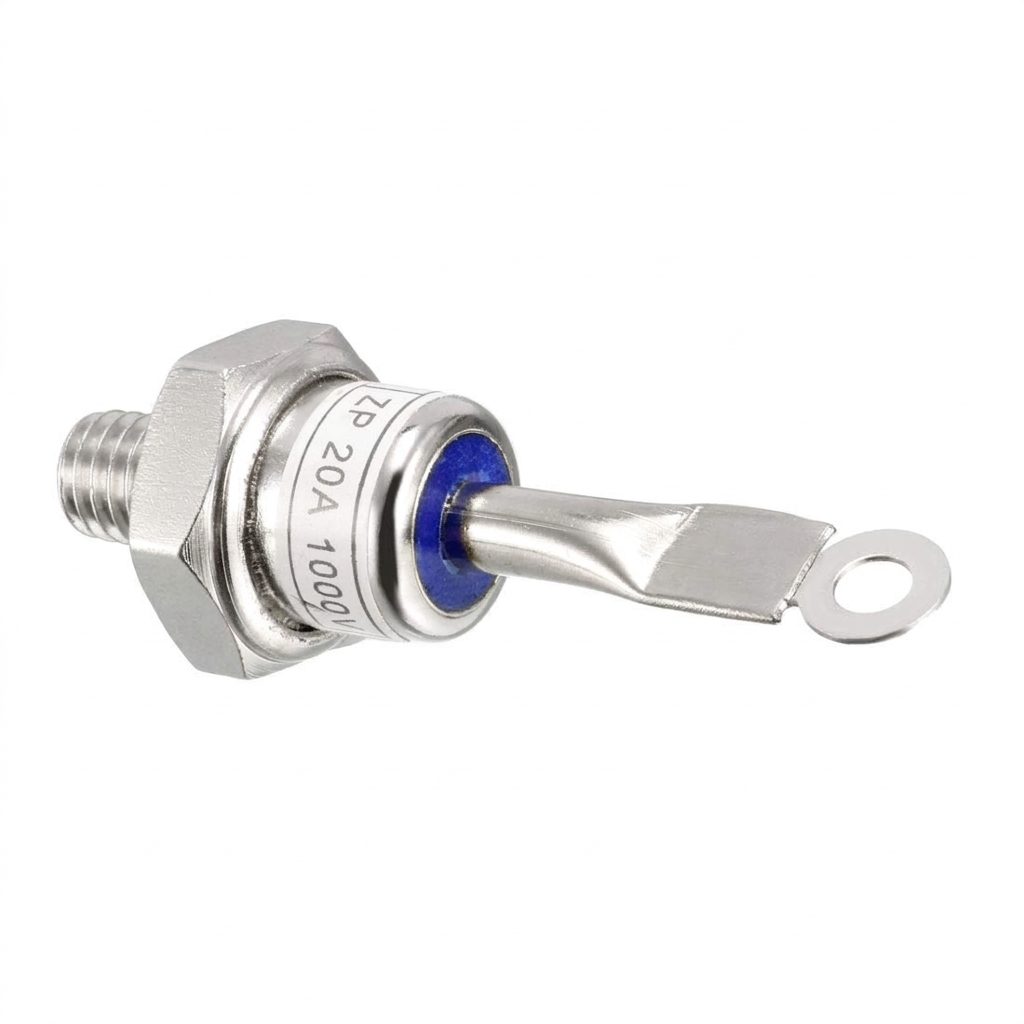

Metal Diode 20A 1000V Cathode Stud Mount
The ZP20A series is engineered for high-performance power rectification. Featuring a hermetically sealed metal case and a high-density terminal blade, it provides low forward voltage drop and high reliability in harsh environments. The stud-mount design simplifies installation in industrial power supplies, battery chargers, and motor controllers where mechanical stability and heat dissipation are critical.
Features
- High Surge Current Capability
- Cathode-to-Stud Polarity
- Low Thermal Resistance
- Easy Installation
- Wide Temperature Range
Specifications
| Parameter | Specification |
|---|---|
| Model / Series | ZP20A (Standard Polarity) |
| Continuous Forward Current (IF) | 20A |
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Polarity | Cathode Stud (Negative Base) |

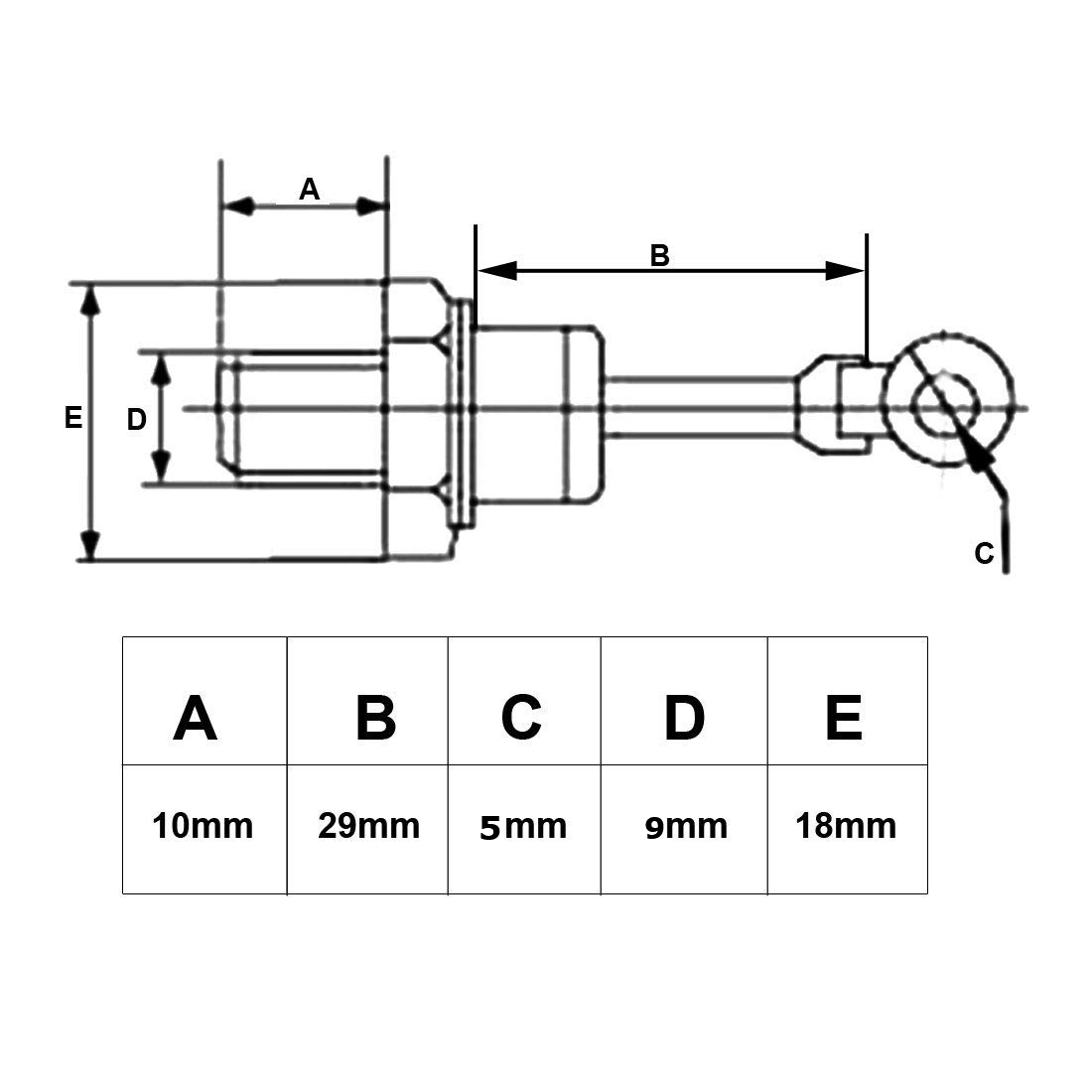

| Hex Nut Width (E) | 18mm |
| Stud Diameter (D) | 9mm |
| Stud Length (A) | 10mm |
| Terminal Hole Diameter (C) | 5mm |
| Operating Temperature | -40°C to +150°C |
Applications
- Power Supplies
- Battery Chargers
- Electric Motor Controls
- Generators/Alternators
- Electrolysis & Plating
Package Content
- 1 x Metal Diode 20A 1000V Cathode Stud Mount
