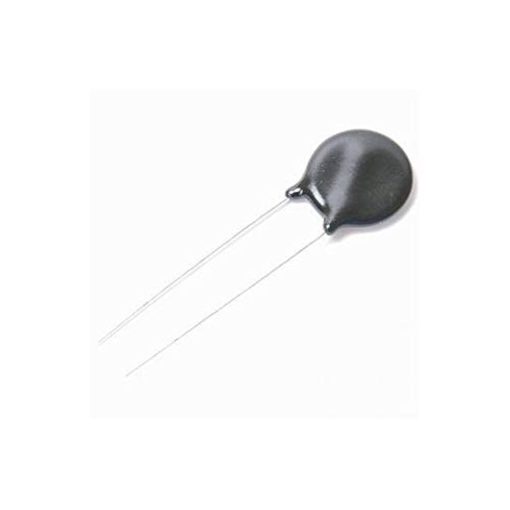

Metal Oxide Varistor 240V 1.8KA DISC 20mm 20K241U
Metal Oxide Varistor ZNR disc, 240V nominal, 1.8kA(8/20µs) surge capacity, 20mm radial through-hole package for AC/DC transient suppression.
10.00 EGP
In stockSKU 3496300125807
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Metal Oxide Varistor 240V 1.8KA DISC 20mm 20K241U
The Metal Oxide Varistor 240V 1.8KA Disc 20mm 20K241U is a ZNR-series zinc-oxide surge absorber in a 20mm radial disc package, engineered to clamp transient overvoltages and protect sensitive electronics in mains and power-rail systems with fast response and robust energy handling capacity.
Features
- ZNR zinc-oxide varistor construction for reliable transient clamping performance.
- Nominal varistor voltage approximately 240V (typical specification range 216V–264V).
- Peak surge current capability 1.8kA for an 8/20µs waveform.
- Compact 20mm disc form factor with radial through-hole leads for PCB mounting.
- Bidirectional operation suitable for AC and DC applications.
- Fast response time for effective suppression of lightning and switching transients.
- Wide operating temperature range and stable ceramic construction for long service life.
- Conforms to international safety and performance standards and is RoHS compliant.
Specifications
| Parameter | Value |
|---|---|
| Nominal Varistor Voltage | 240V (216V–264V) |
| Maximum Surge Current(8/20µs) | 1.8kA |
| Clamping Voltage(8/20µs,typical) | 395V |
| Maximum Allowable AC Voltage (ACrms) | 150V |

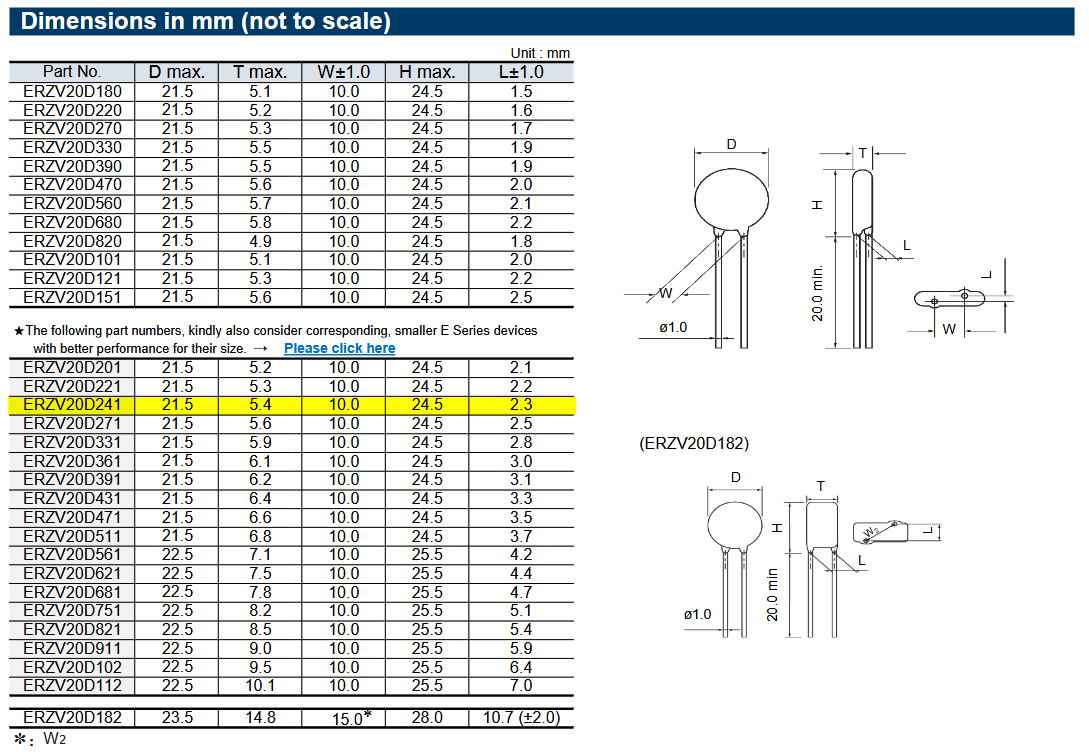

| Disc Diameter | 20mm |
| Bidirectional | Yes |
| Operating Temperature Range | −40°Cto+85°C |
| Capacitance @ 1kHz(typ) | 380pF |
| Package Style | Radial through-hole |
Applications
- Surge and lightning protection for mains AC input stages.
- Transient suppression in solar inverters and PV combiner boxes.
- Protection of industrial control equipment and motor drives.
- Line protection for telecom, networking, and consumer electronics.
- EMI/RFI mitigation and transient suppression on distribution and power modules.
Package Contents
- 1x Metal Oxide Varistor 240V 1.8KA DISC 20mm 20K241U.
Documents
| Weight | 4 g |
|---|---|
| Dimensions | 56 × 21 × 5 mm |
