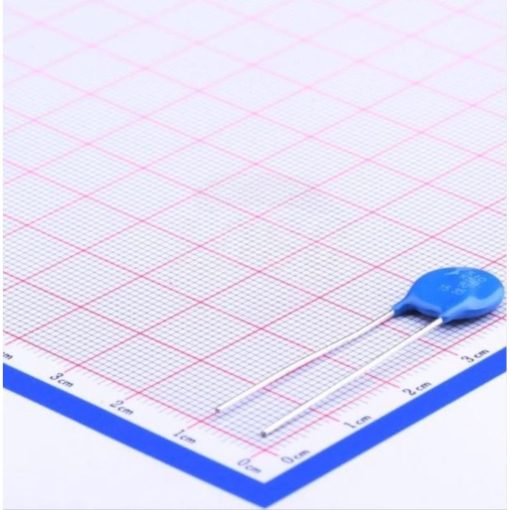

Metal Oxide Varistor MOV S10K50 135V

Metal Oxide Varistor MOV S10K50 135V

The Metal Oxide Varistor MOV S10K50 135V is a high-performance surge protection component designed to shield electronic circuits from transient voltage spikes and surges. Manufactured by TDK (formerly EPCOS), this leaded varistor belongs to the StandarD series, featuring a compact 10mm disc diameter that makes it ideal for integration into space-constrained designs. At its core, the device operates on the principle of non-linear resistance, where it exhibits high impedance under normal operating conditions but rapidly transitions to a low-impedance state when exposed to overvoltage events. This behavior allows it to absorb and dissipate excess energy, preventing damage to sensitive components downstream.

Features:

• Wide operating voltage range up to 50VAC RMS and 65VDC.
• High surge current rating of 2500A for 8/20μs pulses.
• Energy absorption capacity of 8.4J for 2ms waveforms.
• Maximum clamping voltage of 135V at 25A.
• No derating required up to 105°C ambient temperature.

Specifications:

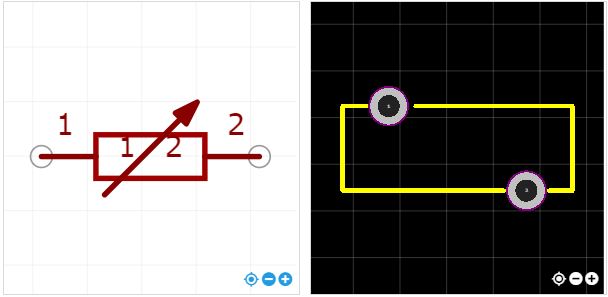

Foot print:

Applications:

• Surge protection in power supply units.
• Overvoltage safeguarding in household appliances.
• Transient suppression in telecommunication equipment.
• Protection for automotive electronic systems.
• Voltage spike mitigation in industrial control circuits.
• Use in consumer electronics like chargers and adapters.

Package Include:

1x Metal Oxide Varistor MOV S10K50 135V.
