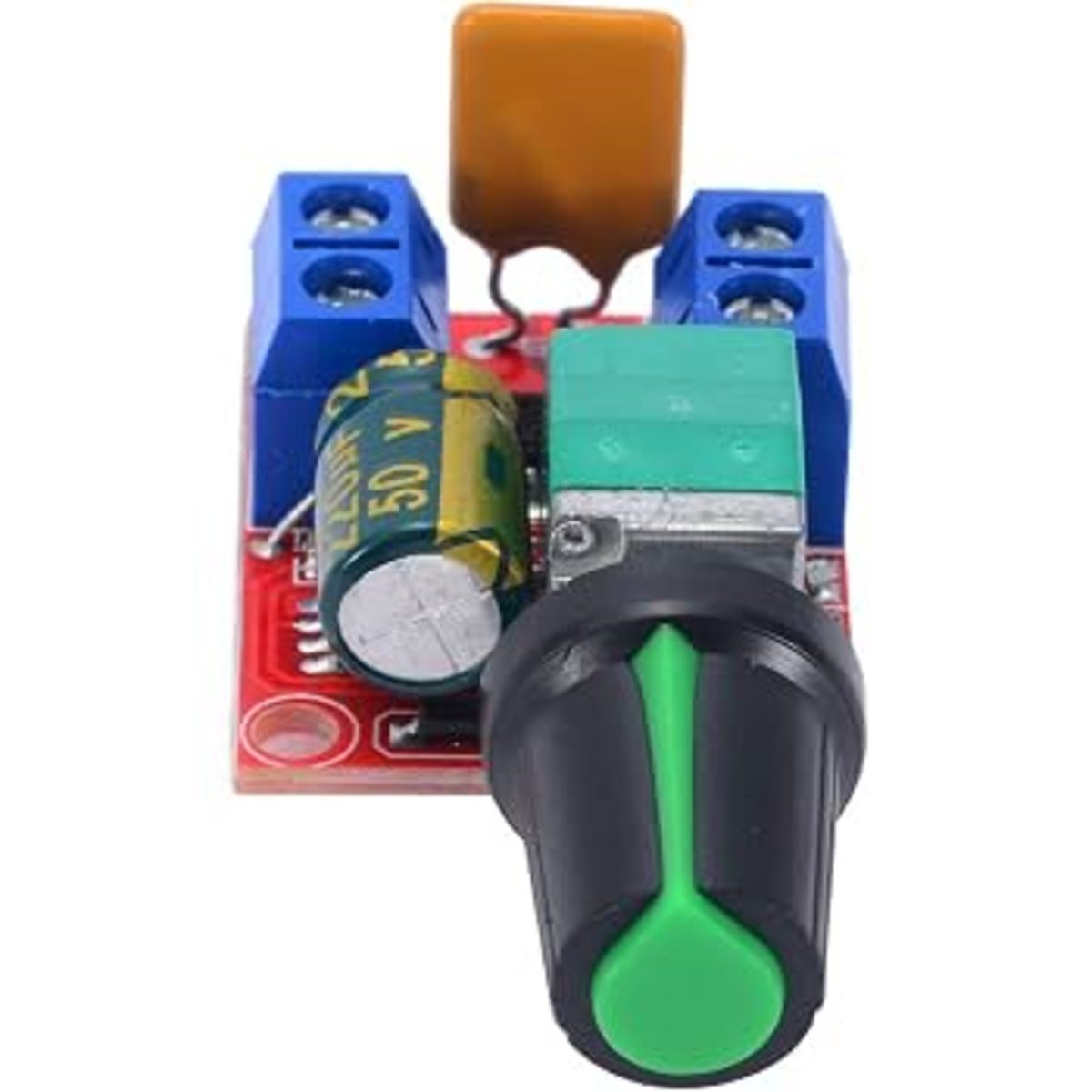

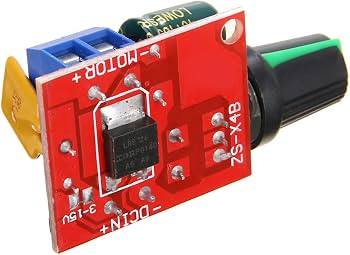

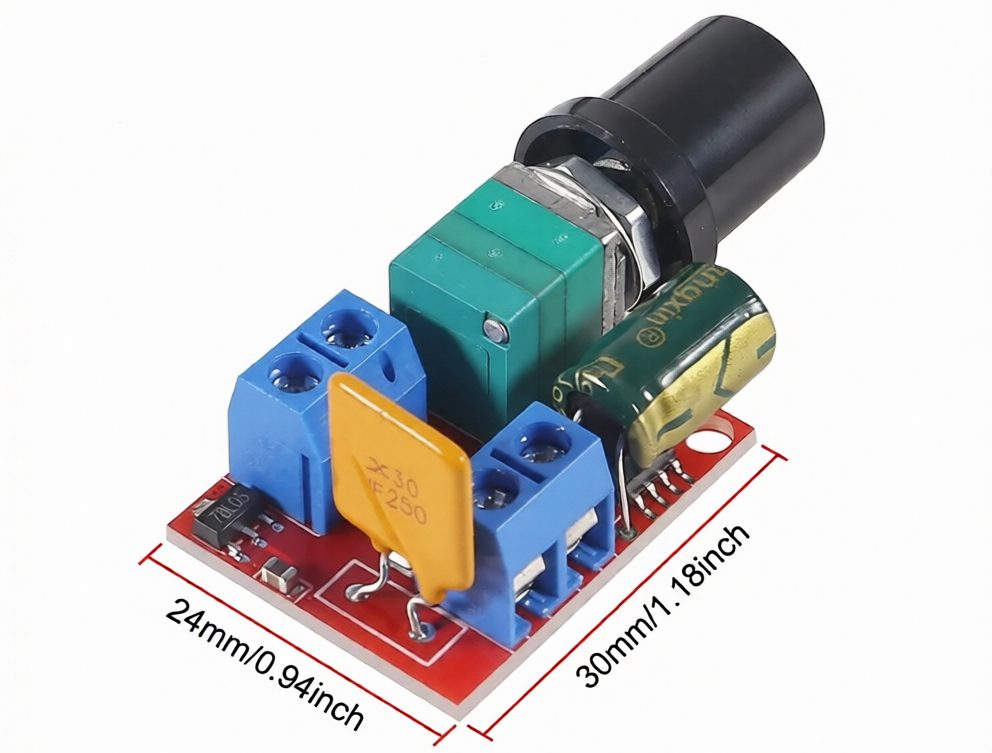

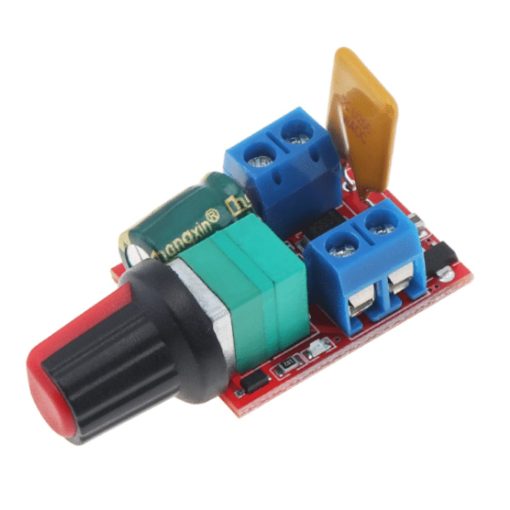

Mini PWM DC Motor Speed Controller 3-35V 5A 90W with Resettable Fuse
The Mini PWM DC Motor Speed Controller 3-35V 5A 90W is a compact pulse-width modulation (PWM) controller designed to efficiently adjust the speed of brushed DC motors while minimizing power loss. By varying the PWM duty cycle instead of directly reducing the supply voltage, the controller provides smooth motor speed adjustment while maintaining efficient operation.
The module features a built-in resettable (self-recovery) fuse that helps protect the circuit against overcurrent and overload conditions. If excessive current causes the fuse to trip, it temporarily interrupts the circuit and automatically resets after the overload is removed and the fuse has cooled down.
Its compact size and simple operation make it suitable for hobby, robotics, automation, and DIY electronics projects. An onboard rotary potentiometer provides convenient speed adjustment, while screw terminals allow easy connection to the DC power supply and motor.
Features:
- PWM speed control for brushed DC motors.
- Smooth and stable motor speed adjustment.
- High efficiency with low heat generation.
- Built-in resettable fuse for overcurrent and overload protection.
- Compact and lightweight design.
- Wide operating voltage range.
- Simple rotary potentiometer speed adjustment.
- Easy screw terminal connections.
- Suitable for motors, fans, and pumps.
- Quick installation and operation.
- Reliable performance for DIY and industrial projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Type: | PWM DC Motor Speed Controller |
| Input Voltage: | 3V – 35V DC |
| Maximum Continuous Current: | 5A |
| Maximum Output Power: | 90W |
| Control Method: | Pulse Width Modulation (PWM) |
| Speed Adjustment: | Rotary Potentiometer |
| Output Type: | PWM DC Output |
| Efficiency: | Up to 95% |
| Compatible Motor Type: | Brushed DC Motors |
| Protection: | Resettable (Self-Recovery) Fuse – Overcurrent Protection |
| Cooling: | Natural Air Cooling |
Pinout:
| Terminal | Description |
|---|---|
| VIN+ | DC Power Input Positive |
| VIN- | DC Power Input Negative |
| M+ | Motor Positive Output |
| M- | Motor Negative Output |
Applications:
- DC motor speed control.
- Robotics projects.
- DIY electronics.
- Small electric vehicles.
- Cooling fan speed regulation.
- Water pump speed control.
- Conveyor systems.
- Laboratory equipment.
- Automation projects.
- Educational electronics experiments.
Package Includes:
- 1x Mini PWM DC Motor Speed Controller 3-35V 5A 90W with Resettable Fuse
