MOC3083 Zero Cross Triac OptoIsolator
The MOC3083M Zero-Cross Optoisolator Triac Driver DIP-6 is an optically isolated triac driver IC designed for safe and reliable AC load control in industrial, consumer, and automation applications. The device combines a gallium arsenide infrared LED with an integrated zero-crossing triac driver output, enabling isolated triggering of external power triacs for switching AC mains loads.
Features:
- Zero-cross optoisolated triac driver.
- 800V peak blocking voltage.
- High electrical isolation capability.
- DIP-6 through-hole package.
Specifications
| Parameter | Value |
|---|---|
| Model Number | MOC3083 |
| Device Type | Optoisolator Triac Driver |
| Output Type | Zero-Cross Triac Driver |
| Package Type | DIP-6 |
| Mounting Type | Through Hole |
| Peak Blocking Voltage | 800V |
| Isolation Type | Optical Isolation |
| Input Type | Infrared LED |
| Output Configuration | Bilateral Triac Driver |
| Isolation Voltage | 4170VACRMS |
| Static dv/dt | 600V/μs Minimum |
| Operating Application | AC Load Switching |

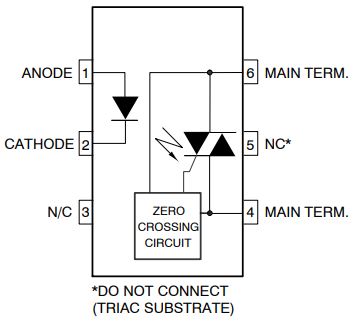

Pinout:
Applications:
- Solid-state relay circuits.
- AC motor control systems.
- Industrial automation equipment.
- Lighting control systems.
- Temperature controller circuits.
- AC mains switching applications.
- Smart home automation systems.
- Microcontroller isolation interfaces.
Package Include:
1x MOC3083 Zero Cross Triac OptoIsolator
