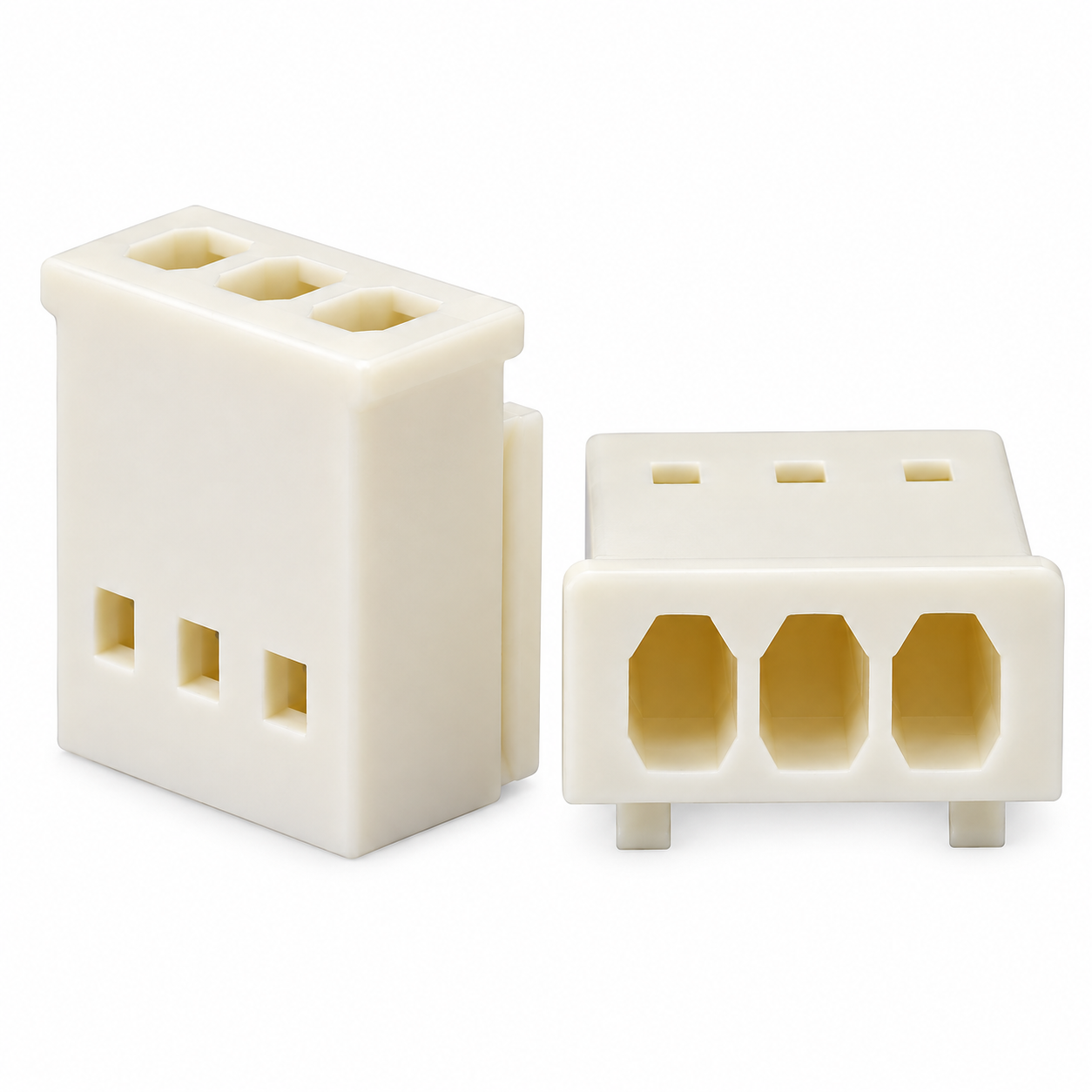

MOLEX 22-01-1034 Wire Terminal Housing 2.5mm 1 Rows, 3 Contacts
2.5mm pitch female wire Terminal Housing, 1×3 contacts, friction-lock, natural nylon, compatible with SPOX crimp terminals, for wire-to-board and wire-to-wire connections.
25.00 EGP
Buy NowMOLEX 22-01-1034 Wire Terminal Housing 2.5mm 1 Rows, 3 Contacts
The MOLEX 22-01-1034 is a 3-position female connector housing from the SPOX 5102 series. It is designed for wire-to-board and wire-to-wire applications where a compact, secure, and reliable connection is required. The housing accepts female crimp terminals and mates with compatible 2.50mm pitch headers.
Features:
- 3-position female connector housing.
- 2.50mm contact pitch.
- Single-row design.
- Cable mount / free-hanging installation.
- Friction-lock mechanism.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | 22-01-1034 |
| Series | 5102 SPOX™ |
| Connector Type | Receptacle Housing |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Pitch | 2.50mm |
| Contact Type | Female Socket |
| Termination Type | Crimp |
| Mounting Type | Cable Mount / Free Hanging |
| Locking Type | Friction Lock |
| Polarization | Polarized Ribs |
| Housing Material | Nylon |
| Housing Color | Natural |
| Flammability Rating | UL94V-0 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Length | 10.5mm |
| Width | 10mm |
| Compatible Wire Size | 22AWG to 28AWG |
Applications:
- Wire-to-board connections.
- Wire-to-wire assemblies.
- Electronic control boards.
- Industrial equipment.
- Consumer electronics.
- Embedded systems.
- Robotics projects.
- Custom cable harnesses.
- PCB interconnections.
Package Include:
1x MOLEX 22-01-1034 Wire Terminal Housing 2.5mm 1 Rows, 3 Contacts.
