MOLEX 22-04-1031 Pin Header Vertical 2.5mm 1 Rows, 3 Contacts PCB TH
2.5mm pitch vertical PCB pin header, 1×3 contacts, through-hole, tin-plated, friction-ramp locking, for wire-to-board and compact connector applications.
8.00 EGP
In stockSKU 3496300159550
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MOLEX 22-04-1031 Pin Header Vertical 2.5mm 1 Rows, 3 Contacts PCB TH
The 22-04-1031 is a compact vertical PCB pin header designed for wire-to-board electrical connections. It provides three male contacts arranged in a single row with a 2.5mm pitch, making it suitable for compact PCB layouts where reliable wire-to-board interconnection is required.
Features:
- 3-position PCB pin header.
- 1 row with 3 contacts.
- 2.5mm contact pitch.
- Vertical straight orientation.
- Through-hole PCB mounting.
- Solder-pin termination.
- Male pin contacts.
- Brass contact material.
Specifications.
| Parameter | Value |
|---|---|
| Connector Type | PCB Pin Header |
| Model Number | 22-04-1031 |
| Series | KK 5045 |
| Connector System | Wire-to-Board |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Orientation | Vertical / Straight |
| Mounting Type | Through Hole |
| Termination Type | Solder Pin |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Housing Material | Nylon / Polyamide |
| Housing Color | Natural |
| Shroud Type | Partially Shrouded |
| Locking Feature | Friction Ramp / Lock to Mating Part |
| Current Rating | 3A |
| Voltage Rating | 250V |
| Mating Post Length | 7.5mm |
| Termination Post Length | 3.4mm |
| Recommended PCB Thickness | 1.6mm |
| Flammability Rating | UL 94 V-0 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Mounting Style | Through Hole |
| Application | Wire-to-Board / Signal |

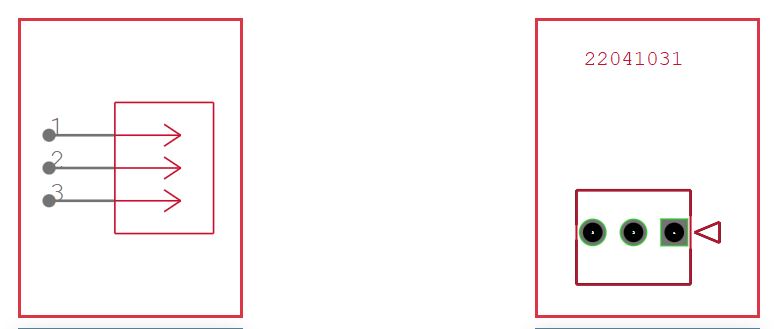

Foot print:
Applications:
- Wire-to-board connections.
- PCB interconnection.
- Electronic control boards.
- Consumer electronics.
- Industrial automation equipment.
- Automotive electronics.
- Embedded electronic equipment.
- Signal connections.
- Power and signal distribution.
- PCB assemblies.
- Control panels.
- Electronic instruments.
- Compact electronic devices.
- Cable-to-PCB connections.
Package Include:
1x MOLEX 22-04-1031 Pin Header Vertical 2.5mm 1 Rows, 3 Contacts PCB TH
