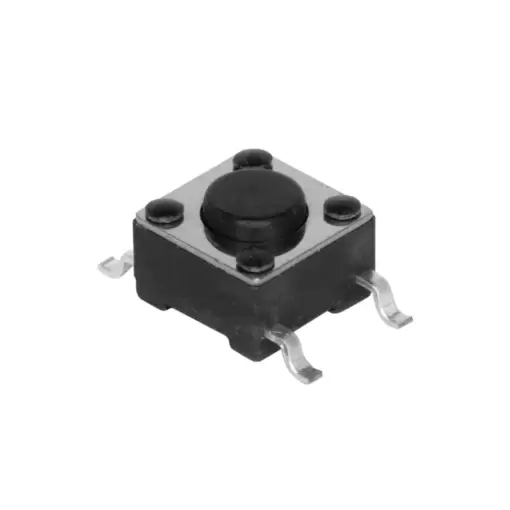

Momentary Tactile Push Button Switch 4 Pin SMD 6*6*4.3mm
1.00 EGP
Availability:
Out of stock
SKU:3496300067817
- Features momentary action, 4 pins, push button, square shape, SMD mounting.
- Used in the fields of electronic products, household or office appliances, sound equipments, digital products, and more.
- High precision mechanism design offers acute operation and long service life.
Specifications
| Attribute |
Value |
| Contact Configuration |
Single Pole Single Throw (SPST) |
| Terminal Type |
Surface Mount |
| Switch Operation |
Momentary |
| Actuator Type |
Button |
| Length |
6mm |
| Width |
6mm |

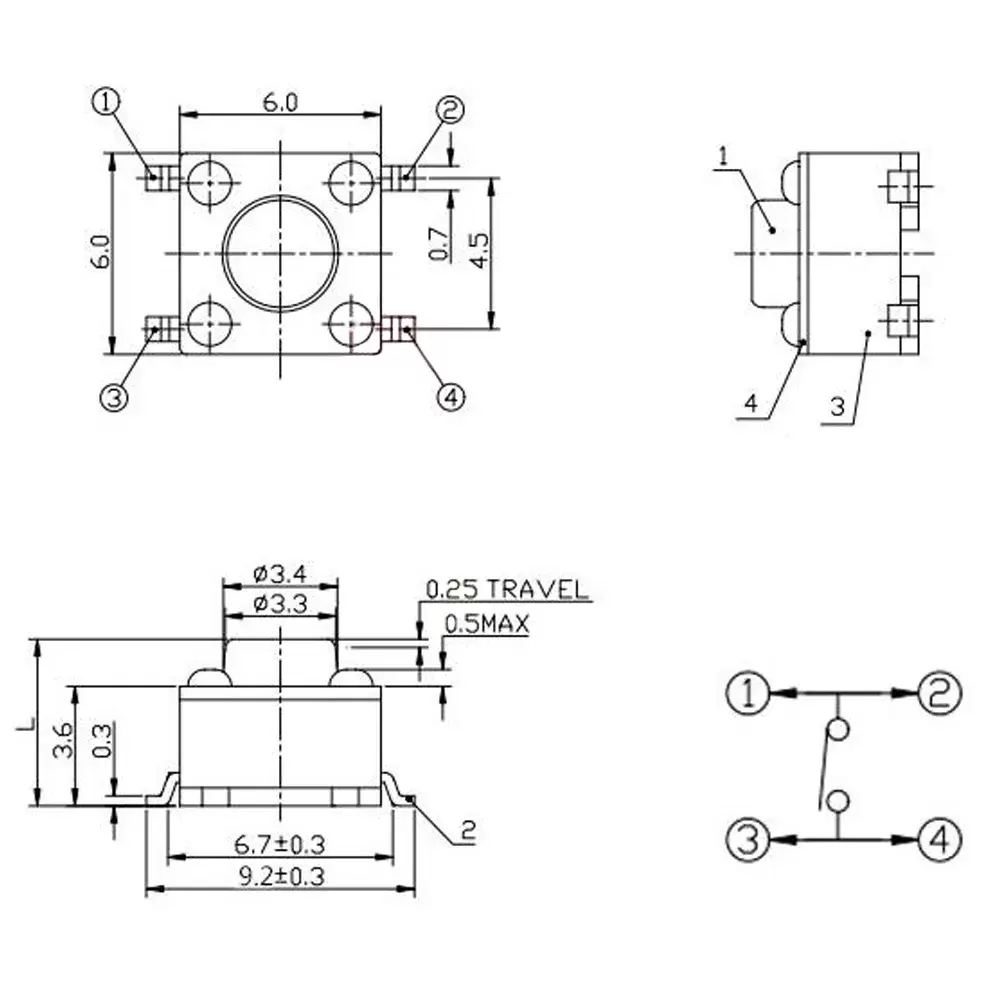

| Dimensions |
6 x 6 x 4.3mm |
| Mounting Type |
Surface Mount |
| Height |
4.3mm |
| Operating Temperature Range |
-20 → +85°C |
