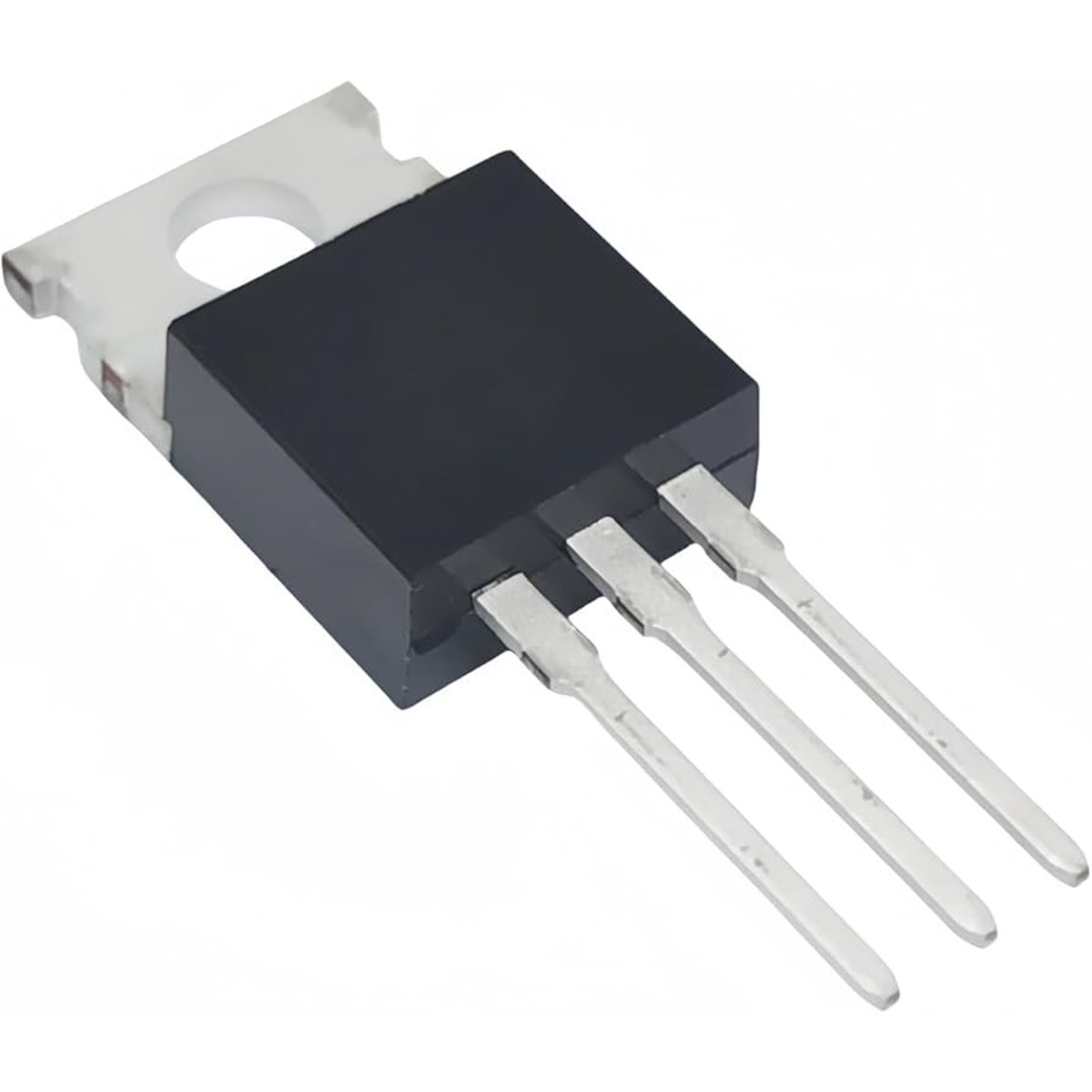

MPG90N03L MOSFET Transistor 30V 90A
The MPG90N03L is an N-channel power MOSFET designed for switching and power-control applications. MOSFETs of this type are commonly used to control relatively high currents with a low-voltage gate-drive signal, making them suitable for applications such as DC motor drivers, battery protection circuits, LED switching, power converters, and automotive electronics.
Its low-voltage gate operation makes it suitable for circuits controlled by microcontrollers and other digital systems when the required gate-drive conditions are met. As a power switching device, it can provide fast switching and low conduction losses when operated within its specified electrical limits, making it useful for both hobbyist projects and practical power-electronics designs.
Features:
- N-channel power MOSFET.
- Designed for high-current switching applications.
- Low-voltage gate drive.
- Fast switching capability.
- Suitable for DC power control.
- Useful for motor and load switching.
- Suitable for battery-powered circuits.
- Three-terminal semiconductor device.
- Commonly used in power electronics.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | MPG90N03L |
| Transistor Type | N-Channel MOSFET |
| MOSFET Type | Enhancement Mode |
| Maximum Drain-Source Voltage (VDS) | 30V* |
| Gate-Source Voltage (VGS) | ±20V* |
| Drain Current (ID) | Up to 90A* |
| Mounting Type | Through Hole |
| Package | TO-220 / Power Package* |
| Number of Pins | 3 |
Note: This Product is Replacement
Pinout:
| Pin | Name | Description |
|---|---|---|
| 1 | Gate (G) | Controls the MOSFET switching |
| 2 | Drain (D) | Main current terminal |
| 3 | Source (S) | Main current return terminal |
Applications:
- DC motor control.
- Battery protection circuits.
- Power switching.
- LED power control.
- DC-DC converters.
- Automotive electronics.
- Inverter circuits.
- Load switching.
- Power management circuits.
- Robotics projects.
- Microcontroller-controlled power switching.
- Low-voltage high-current applications.
Package Includes:
- 1 × MPG90N03L MOSFET Transistor 30V 90A.
