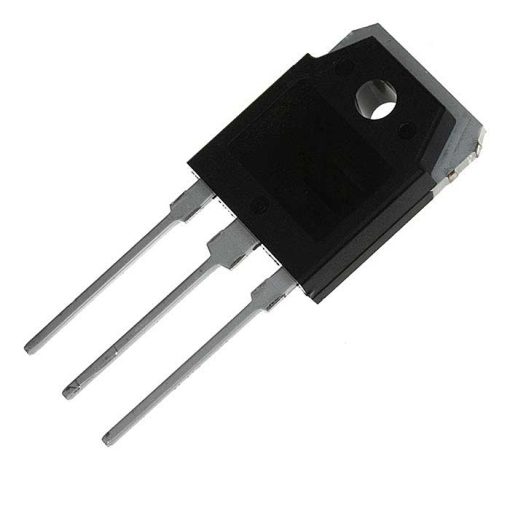

MUR6030PT 60A 300V Ultra Fast Recovery Diode TO-3P
The MUR6030PT 60A 300V Ultra Fast Recovery Diode TO-3P is a high-performance dual rectifier designed for fast switching and high-efficiency power applications. This device features a common cathode configuration, integrating two diodes in a single package, making it ideal for compact and high-current circuit designs.
Features:
- Ultra-fast recovery diode with low reverse recovery time.
- Dual diode configuration with common cathode structure.
- High current capability up to 60A.
- High voltage rating up to 300V.
- Low forward voltage drop for improved efficiency.
Specifications:
| Parameter | Value |
|---|---|
| Maximum Repetitive Peak Reverse Voltage | 300V |
| Maximum RMS Voltage | 300V |
| Maximum DC Blocking Voltage | 300V |
| Average Rectified Forward Current | 60A |
| Peak Forward Surge Current | 300A |
| Maximum Forward Voltage | 1.3V |
| Maximum Reverse Leakage Current | 10μA |
| Reverse Recovery Time | 55ns |
| Operating Junction Temperature | -55°C to +175°C |

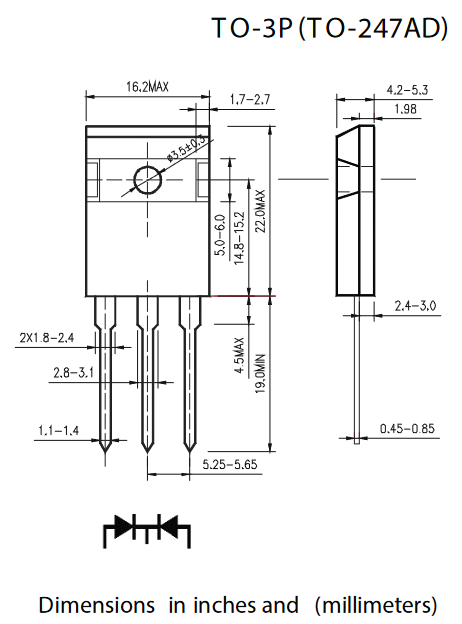

| Package | TO-3P |
Applications:
- Switching Mode Power Supplies (SMPS).
- Uninterruptible Power Supplies (UPS).
- DC-DC converters and inverters.
- Motor control circuits.
- Industrial power systems.
- Audio amplifiers and high-power electronics.
Package Include:
1x MUR6030-PT 60A 300V Ultra Fast Recovery Diode TO-3P
