N-KZ-7 N-Type Straight Female Socket Cable Mount Connector for RG11/RG213/RG214 50 ohm
The N-KZ-7 is a straight N-Type female socket cable connector designed for use with larger 50-ohm coaxial cables such as RG11, RG213, and RG214. It provides a secure threaded N-Type female interface for connecting the terminated cable to compatible N-Type male plugs on antennas, RF equipment, adapters, and communication devices.
Its straight cable-mount configuration provides direct axial cable entry and a reliable RF connection, making it suitable for custom coaxial cable assemblies and fixed RF installations. The connector is particularly useful in antenna, wireless communication, radio, and RF test applications where a durable 50-ohm connection is required.
Features:
- Straight N-Type female socket.
- Cable-mount configuration.
- Designed for RG11, RG213, and RG214 coaxial cables.
- Secure threaded mating interface.
- Suitable for 50-ohm RF systems.
- Suitable for custom coaxial cable assemblies.
- Rugged mechanical construction.
- Reliable RF signal connection.
Specifications:
| Specification | Value |
|---|---|
| Product Type | RF Coaxial Cable Connector |
| Model | N-KZ-7 |
| Connector Series | N-Type |
| Connector Type | Female Socket |
| Gender | Female |
| Configuration | Straight |
| Mounting Type | Cable Mount |
| Compatible Cable | RG11 / RG213 / RG214 |
| Impedance | 50 Ohm |
| Coupling Type | Threaded |
| Connection Type | Coaxial |
| Application | RF / Wireless Communication |

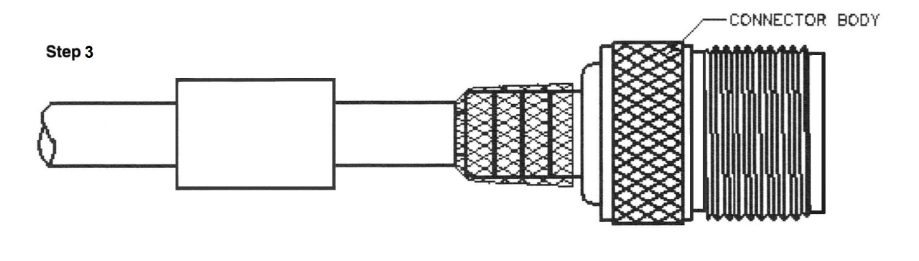

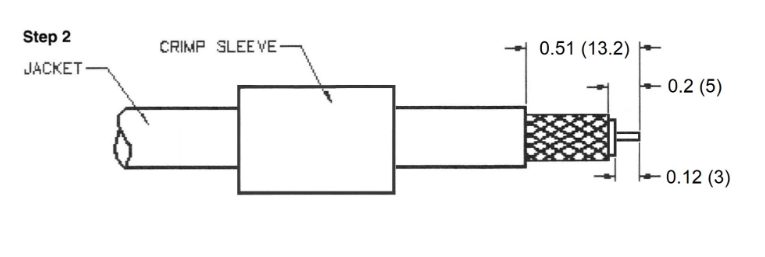

Installation:
Applications:
- RG11 coaxial cable assemblies.
- RG213 coaxial cable assemblies.
- RG214 coaxial cable assemblies.
- RF antenna systems.
- Wireless communication equipment.
- Radio communication systems.
- RF test and measurement equipment.
- Base station and antenna installations.
- Custom RF cable fabrication.
- Coaxial signal interconnection.
Package Includes:
- 1 × N-KZ-7 Straight Female Socket Connector
- 1 × Plated Center Contact Pin.
- 1 × Crimp Ferrule (Sleeve).
