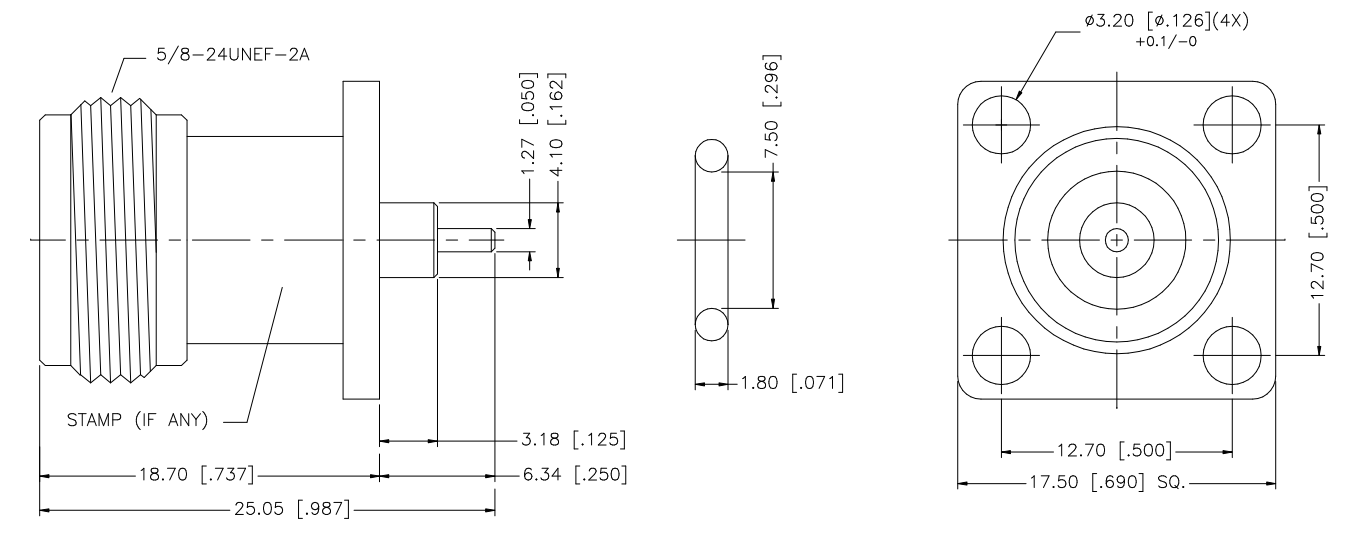

N-KZ-F N-Type Straight Female Socket Flange Mount Connector 50 ohm
The N-KZ-F is a straight N-Type female socket connector with a flange mounting configuration, designed to provide a stable RF connection between coaxial cables, antennas, and RF equipment. The flange allows the connector to be securely mounted to a panel, enclosure, chassis, or equipment surface, making it suitable for fixed RF installations.
With a 50-ohm impedance, this connector is intended for standard RF and wireless communication systems where proper impedance matching and reliable signal transmission are required. Its threaded N-Type female interface provides a secure connection with compatible N-Type male plugs, while the flange mounting arrangement offers improved mechanical stability compared with loose cable connections.
Features:
- N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance.
- Excellent RF performance from DC to 11 GHz.
- Threaded coupling mechanism ideal for vibration resistance.
- Accommodates a wide range of coaxial cables including low loss types.
- Broad line of military, industrial and commercial grade products available.
- Most common interfaces available.
- Accurate transitions.
- Effective and reliable interconnection solutions.
- Appropriate materials.
Specifications:
| Parameter | Specification |
|---|---|
| Product | Connectors |
| RF Series | N Type |
| Product Type | RF Connectors / Coaxial Connectors |
| Body Material | Brass |
| Contact Material | Phosphor Bronze |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Size Category | Standard |
| Gender | Female |
| Panel Mounting Style | 4-Hole Flange |
| Termination Style | Round Post |
| Thread Direction | Standard |
| Frequency Range | DC to 11 GHz |
| Impedance | 50 Ω |
| Withstand Voltage | ≥ 2500 V, 50 Hz |
| Working Voltage | ≤ 1000 V, 50 Hz (sea level) |
| Insulation Resistance | ≥ 5000 MΩ |
| Contact Resistance | Inner conductor: ≤ 1.0 mΩ Outer conductor: ≤ 0.2 mΩ |
| Insulator Material | PTFE |
| Orientation | Straight |
| Ports | 1 (Single Port) |
| Operating Temperature | -40°C ~ 85°C |
Applications:
- RF antenna systems.
- Wireless communication equipment.
- RF transceivers.
- Base station equipment.
- Coaxial cable assemblies.
- RF test and measurement equipment.
- Panel-mounted RF connections.
- Communication enclosures.
- Antenna distribution systems.
- RF laboratory equipment.
Package Included:
- 1x N-KZ-F Straight Female Socket Flange Mount Connector.
