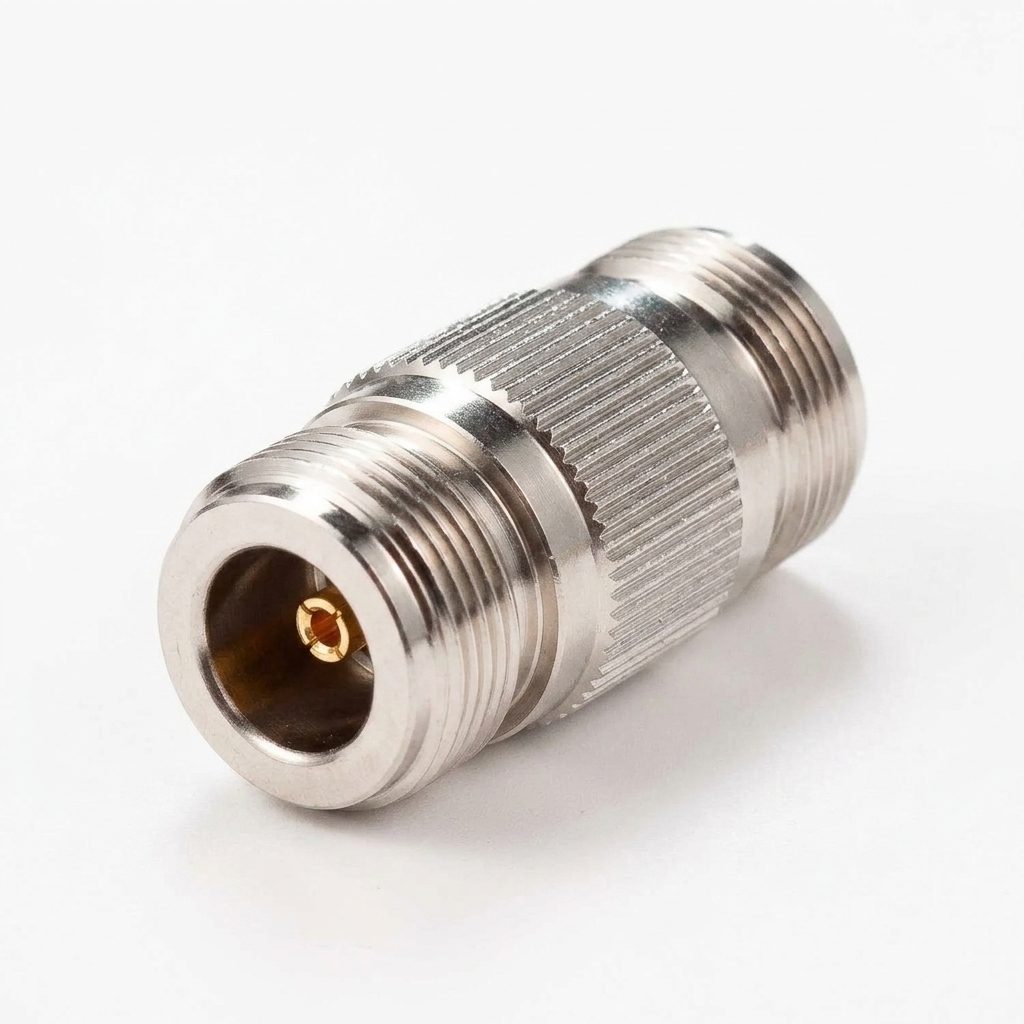

N-Type Straight Adapter Female Socket to Female Socket 50 Ohm
The N-Type Straight Adapter Female Socket to Female Socket is a passive RF coaxial adapter designed to connect two N-Type male connectors together. Its straight inline configuration provides a direct connection between RF cables, antennas, test equipment, and other components fitted with N-Type male interfaces.
With a 50-ohm impedance, this adapter is suitable for standard RF and wireless communication systems where impedance matching and reliable signal transmission are important. The threaded N-Type coupling provides a secure mechanical connection, while the metal construction offers durability for general-purpose RF interconnection and laboratory applications.
Features:
- This adapter/connector is useful for joining two components with male adapter.
- RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
- RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.
- Wide range of different configurations.
- Most common interfaces available.
- Accurate transitions.
- Effective and reliable interconnection solutions.
- Appropriate materials.
Specifications:
| Parameter | Specification |
|---|---|
| Category | Connector |
| Family | Coaxial, RF – Adapters – N |
| Series | N Female / N Female |
| Shape | Straight type |
| Material | Copper Plating Nickel |
| Transfer Type | N plug to N plug |
| Convert From (Adapter End) | N Socket, female Pin |
| Convert To (Adapter End) | N Socket, female Pin |
| Mounting Type | Free Hanging (In-line) |

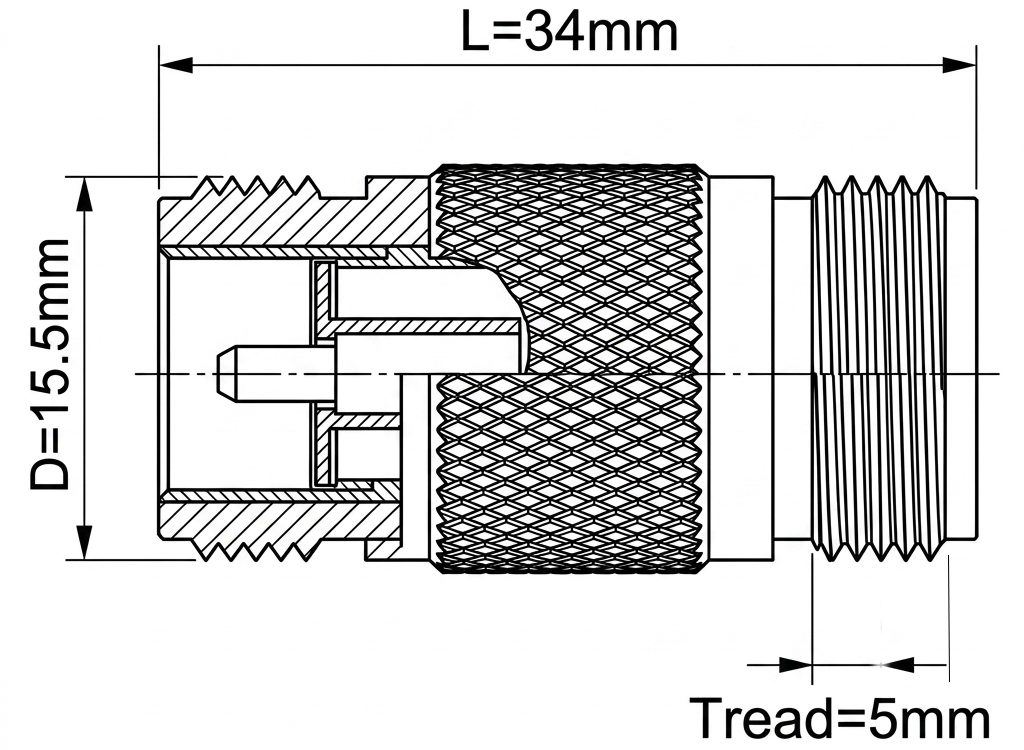

| Total Length | 34 mm |
| Frequency Range | DC to 11 GHz |
| Impedance | 50 Ω |
Applications:
- Personal communication services (PCS).
- Satellite communications.
- Include surge protection.
- Wireless LAN (WLAN).
- Aerospace (Mil-Aero).
- Radios and radars.
- Instrumentation.
- Microwave radio.
- Base stations.
- Broadcast.
- Antennas.
- Military.
Package Included:
- 1x N-Type Straight Adapter Female Socket to Female Socket 50 Ohm.
