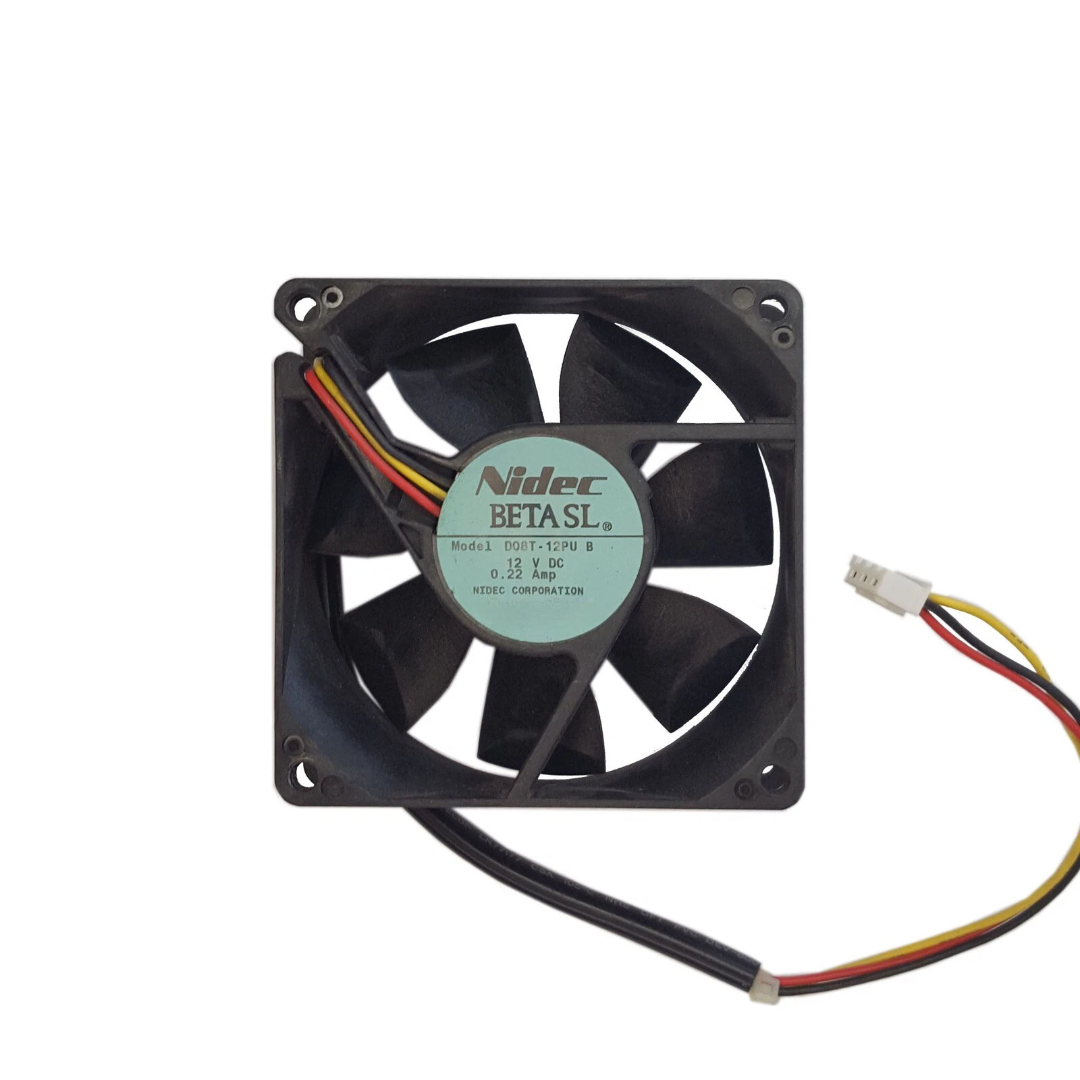

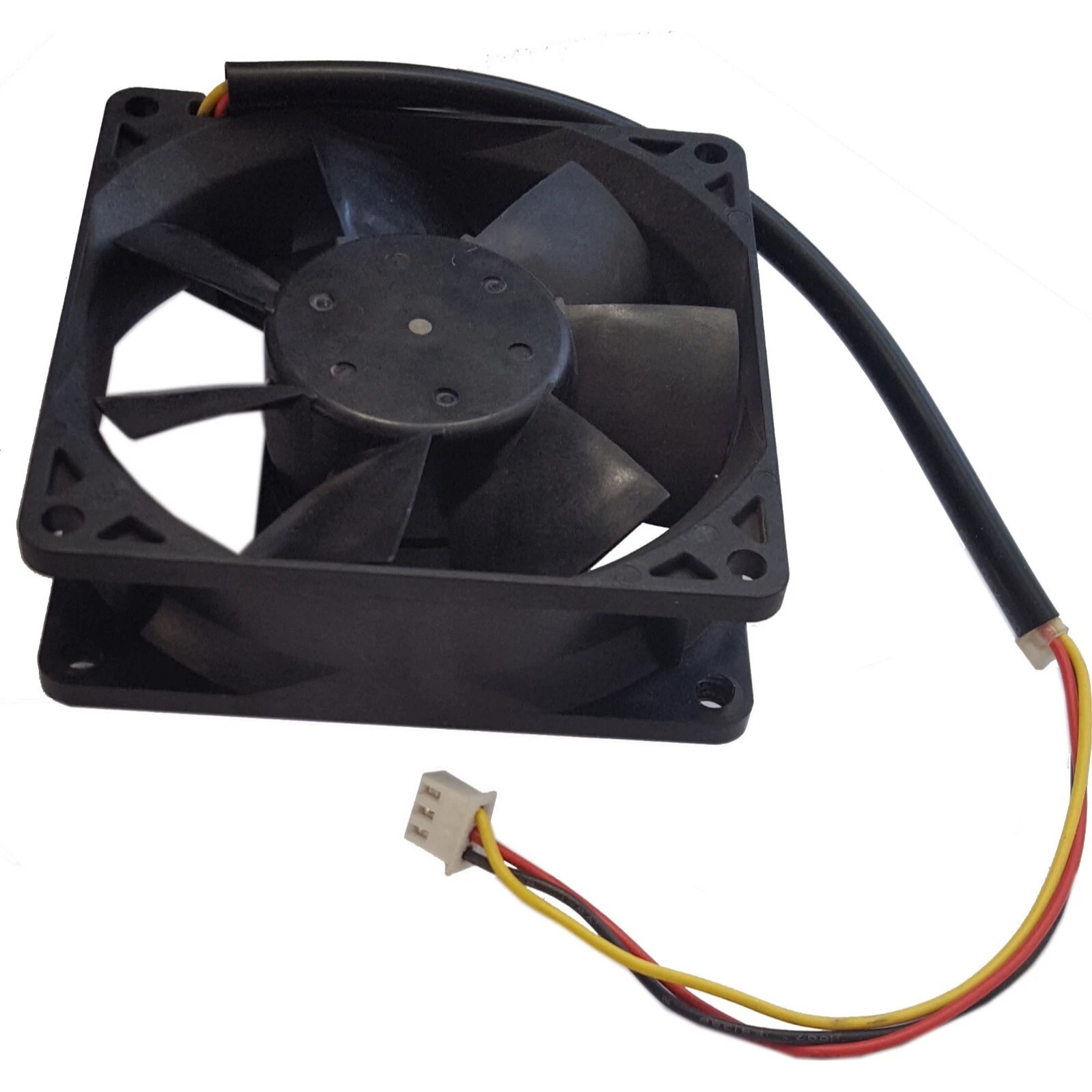

NIDEC D08T-12PU DC Fan 12V 0.22A 80X80X25mm (USED LIKE NEW)
The NIDEC D08T-12PU DC Fan 12V 0.22A 80x80x25mm (USED LIKE NEW) is a compact DC cooling fan designed to provide forced-air cooling for computers, electronic equipment, power supplies, control systems, and other applications requiring an 80mm cooling fan. Available product references identify the D08T-12PU as an 80x80x25mm fan operating at 12VDC with a 0.22A current rating.
Features:
- NIDEC D08T-12PU DC cooling fan.
- 12VDC rated operating voltage.
- 0.22A rated current.
- Approximately 2.64W rated electrical power.
- 80x80x25mm standard fan size.
- 3-pin connector.
- 3-wire configuration.
Specifications:
| Parameter | Value |
|---|---|
| Brand | NIDEC |
| Model | D08T-12PU |
| Product Type | DC Cooling Fan |
| Fan Size | 80x80x25mm |
| Rated Voltage | 12VDC |
| Rated Current | 0.22A |
| Rated Power | 2.64W |
| Connector | 3-Pin |
| Number of Wires | 3 |
| Wire Colors | Black, Red, Yellow |
| Red Wire | +12VDC |
| Black Wire | GND / Negative |
| Yellow Wire | Tachometer / Speed Signal |
| Frame Shape | Square |
| Blade Material | Plastic |
| Housing Material | Plastic |
| Number of Blades | 7 |
| Airflow Direction | Push |
| Condition | USED LIKE NEW |
Applications:
- Desktop computer cooling.
- Computer case cooling.
- Server cooling.
- Power supply cooling.
- Electronic enclosure cooling.
- Industrial equipment cooling.
- Control cabinet ventilation.
- Replacement for compatible 80mm cooling fans.
- General 12V electronic equipment ventilation.
Package Include:
1x NIDEC D08T-12PU DC Fan 12V 0.22A 80X80X25mm (USED LIKE NEW)
