ON/OFF Red Switch 2 Pins KCD1-11 Dim:15*10mm
The ON/OFF Red Switch 2 Pins KCD1-11 Dim:15*10mm is a compact panel mount rocker switch designed for simple and reliable power control in electronic and electrical applications. Featuring a standard ON/OFF latching mechanism and a 2-pin configuration, the switch is easy to install and wire, making it an excellent choice for DIY projects, consumer electronics, small appliances, and industrial control panels.
Features:
- ON/OFF latching rocker switch.

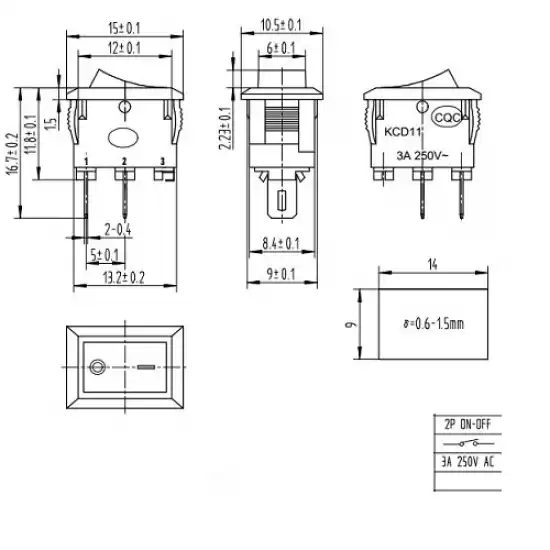

- Compact 15mm×10mm dimensions.
- Standard KCD1-11 model.
- 2-pin configuration.
- Red rocker actuator.
- Panel mount installation.
- Rated for AC switching applications.
- Durable plastic housing.
- Reliable metal contacts.
Specifications:
- Type: KCD1-11
- Terminal: 2 pins (ON-OFF)
- Rating: 3A/250V AC || 6A/125V AC
- Colour: Red & Black
Applications:
- Electronic equipment power switches.
- DIY electronic projects.
- Household appliances.
- Power supplies.
- Battery chargers.
- Audio equipment.
- Small control panels.
- Industrial electronic devices.
- Educational projects.
- Repair and replacement applications.
Package Include:
1x ON/OFF Red Switch 2 Pins KCD1-11 Dim:15*10mm
