Optical Analog DC XY Laser Scanner Galvanometer 20KPPS for Laser Light with Power Supply
The Optical Analog DC XY Laser Scanner Galvanometer 20KPPS is an advanced high-performance system designed for dynamic laser beam steering in professional display, marking, and projection applications. Engineered for superior speed and precision, this dual-axis system achieves a scanning rate of 20,000 points per second (20KPPS) as measured by the ILDA standard test pattern at an 8° optical angle.
Features:
- Ultra-High-Speed Scanning: 20,000 points per second (20KPPS) at ILDA 8° test standard.
- Precision Closed-Loop System: Optical position detection for superior linearity, accuracy, and repeatability.
- Wide Scanning Range: Rated scanning angle ±20°, maximum scanning angle ±30° optical.
- Industry-Standard Compatibility: Accepts analog differential input signals ±5VDC for precise positional control.
- Professional Performance: Designed for demanding laser applications requiring high speed and accuracy.
Specifications:
| Parameter | Value |
|---|---|
| Scanning Speed | 20KPPS @ ILDA 8° |
| Control Signal Input | Analog ±5VDC |
| Driver Power Input | ±15VDC |
| Power Supply Input | 220V |
| Rated Scan Angle | ±20° |
| Max Optical Scan Angle | ±30° |
| Optical Linearity | >99.5% |
| Input Impedance | 200kΩ ±1kΩ |
| Motor Type | Closed-Loop Moving-Magnet |
Applications:
- Professional Laser Light Show and Stage Lighting Projectors (ILDA Standard).
- High-speed Vector Graphic and Laser Animation Systems.
- Precision Laser Marking, Engraving, and Cutting Equipment.
- Scientific and Medical Scanning Applications, such as Confocal Microscopy.
- Rapid Optical Beam Steering and Tracking Systems.

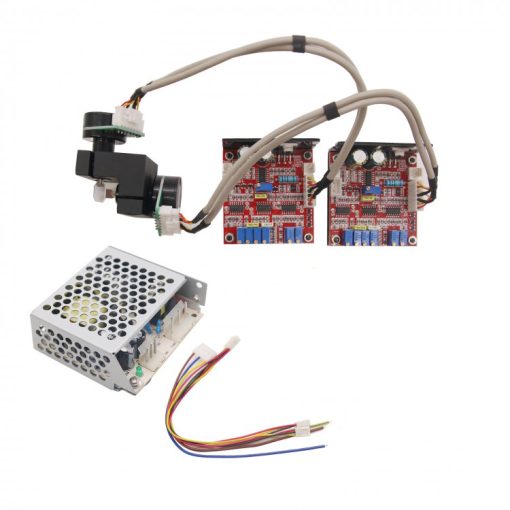

Package Include:

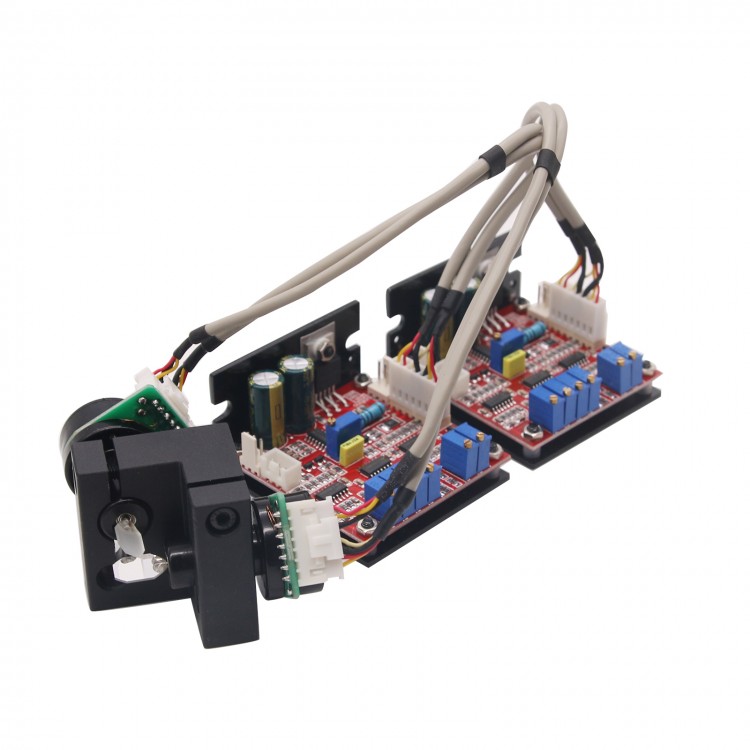

- 1x X-Axis Galvanometer Scanner Head with Mirror.
- 1x Y-Axis Galvanometer Scanner Head with Mirror.
- 2x Analog XY Galvanometer Driver/Control Board.
- 1x Dual-Rail Switching Power Supply (AC to $\pm 15\text{VDC}$).
- 1x AC Power Input Cable (3-wire, connecting AC mains to Power Supply terminal).
- 1x DC Power Output Cable (Connecting Power Supply to Driver Board terminal).
