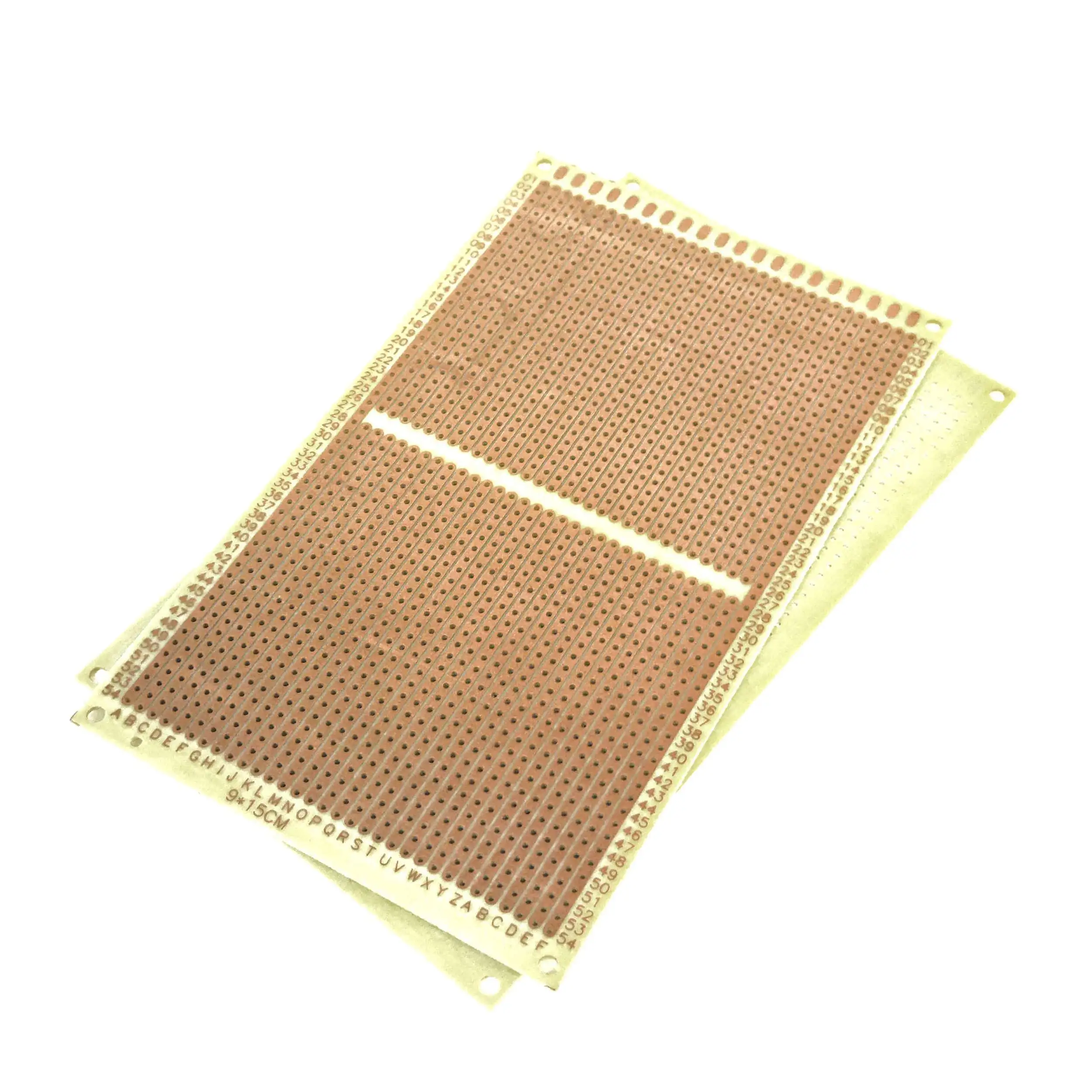

PCB Prototype Board – Vero Board FR-4 9x15cm Center Splitted
This FR-4 center-Splitted prototype board features copper strips separated by a central isolation gap, making it perfectly suited for mounting DIP ICs, op-amps, and logic chips across the center. The Splitted layout simplifies circuit routing and minimizes the need for cutting tracks, resulting in cleaner and more reliable prototypes.
Made from FR-4 fiberglass material, the board offers higher mechanical strength and better thermal stability than FR-2 boards, making it suitable for repeated soldering and long-term use. With a practical 9×15 cm size, it supports standard 2.54 mm pitch through-hole components and can be cut to fit custom project requirements.
Features:
- Center-Splitted design for DIP ICs.
- Durable FR-4 fiberglass material.
- Better heat resistance during soldering.
- Cleaner routing with fewer track cuts.
- Supports through-hole components.
- Suitable for long-term and advanced prototyping.
Specifications:
| Parameter | Value |
|---|---|
| Board Type | Vero / Prototype Board |
| Material | FR-4 (Fiberglass) |
| Copper Layout | Stripboard with center splitted |
| Board Size | 9 × 15 cm |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Layers | Single layer |
| Mounting Type | Through-hole |
Applications:
- DIP IC and op-amp prototyping.
- Arduino and development board circuits.
- Analog and digital electronics projects.
- Educational and professional labs.
- DIY electronic assemblies.
Packages:
- 1x PCB Prototype Board – Vero Board FR-4 9x15cm Center Splitted.
