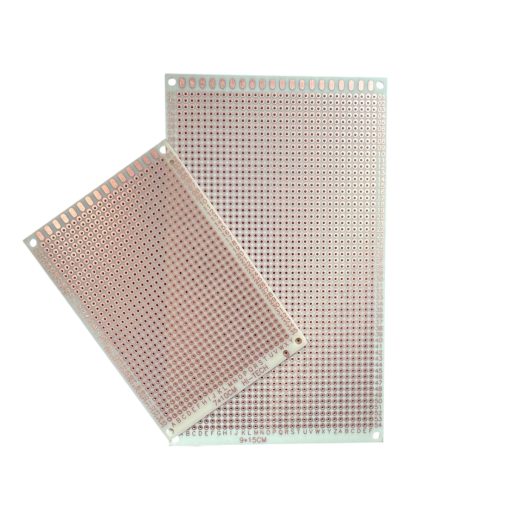

PCB Prototype Board – Vero Board FR-4 Dotted
This FR-4 dotted vero board features a matrix of individually isolated copper pads, giving full freedom in routing connections using wires or solder bridges. Compared to strip boards, the dotted layout minimizes unwanted shorts and is perfect for complex or sensitive circuits that require precise control.
Manufactured from FR-4 fiberglass material, the board offers superior mechanical strength, heat resistance, and durability over FR-2 boards. It supports standard 2.54 mm pitch through-hole components, making it suitable for hobby, educational, and professional prototyping applications.
Features:
- Dotted (isolated pad) copper layout.
- High mechanical strength FR-4 material.
- Better heat resistance for soldering.
- Reduced risk of short circuits.
- Supports through-hole components.
- Suitable for complex circuit designs.
Specifications:
| Parameter | Value |
|---|---|
| Board Type | Vero / Prototype Board |
| Material | FR-4 (Fiberglass) |
| Copper Layout | Dotted (isolated pads) |
| Hole Pitch | 2.54 mm (0.1 inch) |
| Mounting Type | Through-hole |
| Layers | Single layer |
Applications:
- Precision electronic circuit prototyping.
- Arduino and development board projects.
- Educational electronics labs.
- DIY and professional electronics.
- Low-noise and mixed-signal circuits.
Package Include:
- 1x PCB Prototype Board – Vero Board FR-4 Dotted.
