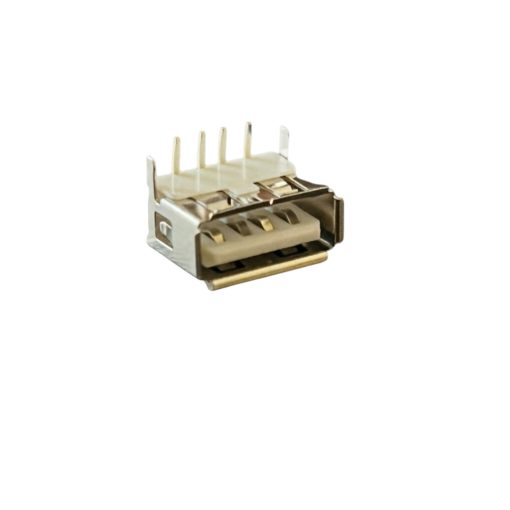

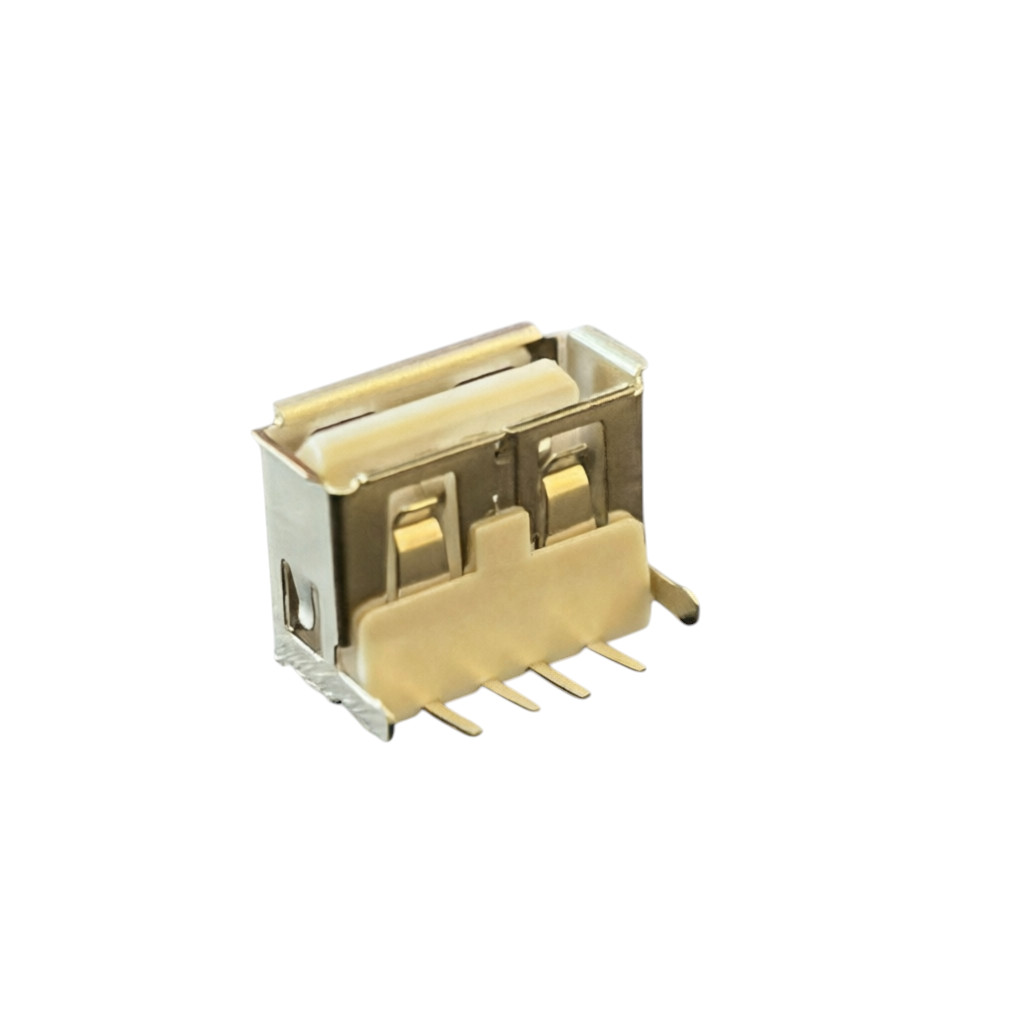

PCB Solder Female Type A USB Connector Right Angle 4 Pin 10mm Body Length
The PCB Solder Female Type A USB Connector is a right-angle (90°) USB Type-A designed for through-hole solder mounting directly onto printed circuit boards. Its 4-pin contact arrangement matches the standard USB Type-A interface, making it suitable for both new board designs and replacement of damaged on-board USB ports.
Features
- Right-angle (90°) body for horizontal cable entry and low vertical profile
- 4-pin contact set for standard USB Type-A connections
- PCB solder / through-hole termination for strong mechanical jointing
- Compact 10.00 mm body length for space-constrained boards

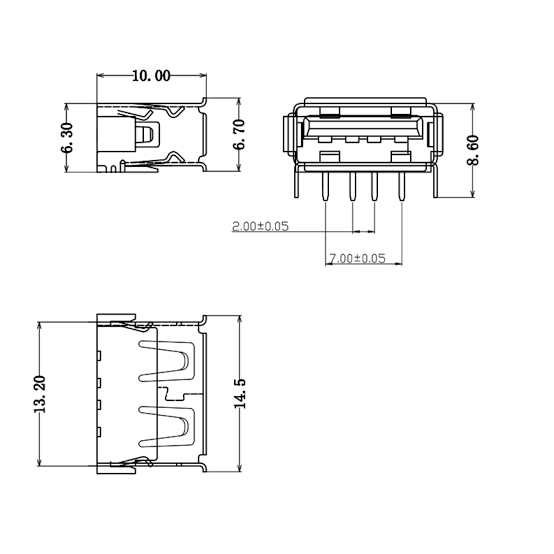

- 2.00 mm ±0.05 pin pitch and 7.00 mm ±0.05 pin span
- Side mounting tabs for secure PCB retention
Specifications
| Specification | Detail |
|---|---|
| Connector Type | USB Type-A Receptacle (Female) |
| Orientation | Right Angle (90°) |
| Termination / Mounting | PCB Solder, Through-Hole Pins with Side Mounting Tabs |
| Number of Pins | 4 |
| Body Length | 10.00 mm |
| Pin Pitch | 2.00 mm ±0.05 |
| Pin Span | 7.00 mm ±0.05 |
Applications
- Adding board-mounted USB Type-A ports to custom and prototype PCBs
- Motherboards, expansion cards and internal computer boards
- USB hubs, docks and computer peripherals
- Consumer electronics with board-level USB Type-A interfaces
- Industrial control panels and instrumentation requiring an on-board USB Type-A port
- Repair and replacement of damaged or broken PCB-mounted USB Type-A jacks
Package Content
- 1 x PCB Solder Female Type A USB Connector Right Angle 4 Pin 10mm Body Length
