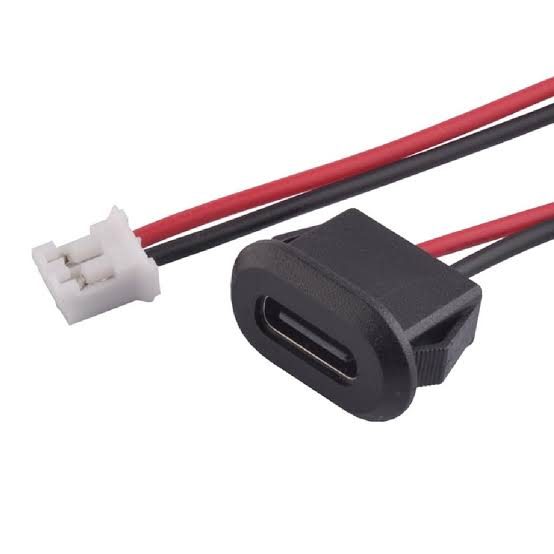

USB Type-C Female Panel Mount Socket Waterproof with JST XH2.54 Connector (Black)
The USB Type-C Female Panel Mount Socket is a compact power connector designed for mounting on project boxes, equipment enclosures, and custom electronic devices. It features a USB Type-C female port housed in a black waterproof-style panel-mount enclosure, providing a clean and accessible connection point for compatible USB Type-C power cables.
The socket includes a JST XH2.54 connector for convenient connection to compatible circuits or wiring harnesses without direct soldering. Its panel-mount design makes it suitable for DIY electronics, battery-powered devices, charging projects, and custom equipment where an external USB Type-C power input is required, Front Chassis Panel Mount.
Features:
- USB Type-C female connector.
- Panel-mount installation design.
- Waterproof protective housing.
- JST XH2.54 connector.
- Easy plug-and-connect installation.
- Compact black housing.
- Convenient external power connection.
- Suitable for electronic enclosures.
- Reduces the need for direct soldering.
- Suitable for DIY and custom projects.
Specifications:
| Specification | Value |
|---|---|
| Product Type | USB Type-C Female Panel Mount Socket |
| Connector Port | USB Type-C Female |
| Output Connector | JST XH2.54 |
| Mounting Type | Panel Mount |
| Housing Color | Black |
| Protection Design | Waterproof |
| Primary Function | Power Connection / Charging |
| Connector Type | Wire Harness Connector |
Pinout:
| Connection | Function |
|---|---|
| Positive Wire | Positive Power (+) |
| Negative Wire | Negative Power (-) |
Applications:
- Electronic project boxes.
- DIY electronics.
- USB Type-C power input projects.
- Battery-powered devices.
- Charging systems.
- Arduino projects.
- Development boards.
- Custom control boxes.
- Portable electronic equipment.
- Replacement USB Type-C power ports.
Package Included:
- 1 × USB Type-C Female Panel Mount Socket Waterproof with JST XH2.54 Connector (Black).
